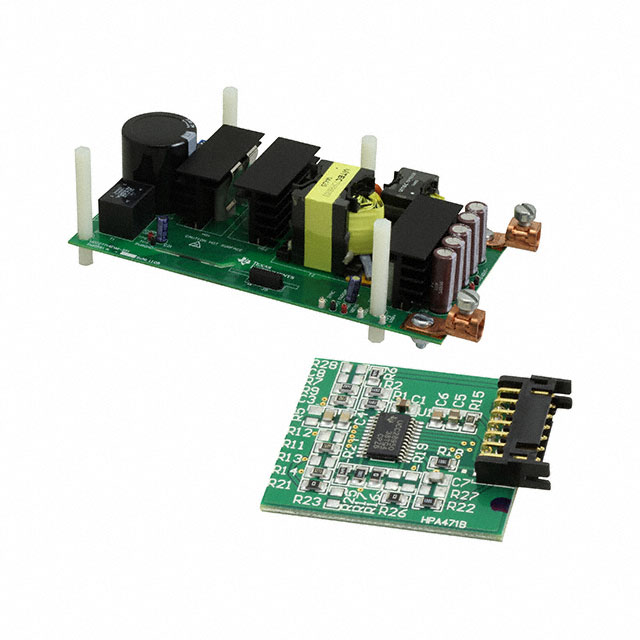

UCC27714EVM-551

Active

Texas Instruments

EVALUATION MODULE UCC27714

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UCC27714EVM-551

Active

Texas Instruments

EVALUATION MODULE UCC27714

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC27714EVM-551

Board Type	Fully Populated
Current - Output	50 A
Main Purpose	DC/DC, Step Down
Outputs and Type	Isolated
Outputs and Type	1
Power - Output	600 W
Regulator Topology	Full-Bridge
Supplied Contents	Board(s)
Utilized IC / Part	UCC27524A, UCC28950, UCC27714
Voltage - Input [Max]	410 V
Voltage - Input [Min]	370 V
Voltage - Output	12 V

UCC27714 Series

4-A, 600-V half bridge gate driver

Part	Channel Type	Gate Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Drivers	Logic Voltage - VIL, VIH	Mounting Type	High Side Voltage - Max (Bootstrap) [Max]	Package / Case [x]	Package / Case [y]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Driven Configuration	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Voltage - Input [Min]	Voltage - Input [Max]	Power - Output	Current - Output	Supplied Contents	Board Type	Regulator Topology	Utilized IC / Part	Main Purpose	Outputs and Type	Outputs and Type	Voltage - Output
Texas Instruments UCC27714D	Independent	IGBT N-Channel MOSFET	10 VDC	18 V	15 ns	15 ns	2	1.2 V 2.7 V	Surface Mount	600 V	0.154 in	3.9 mm	14-SOIC	-40 °C	125 ¯C	Non-Inverting	Half-Bridge	4 A	4 A
Texas Instruments UCC27714EVM-551																				370 V	410 V	600 W	50 A	Board(s)	Fully Populated	Full-Bridge	UCC27524A UCC27714 UCC28950	DC/DC Step Down	Isolated	1	12 V
Texas Instruments UCC27714DR	Independent	IGBT N-Channel MOSFET	10 VDC	18 V	15 ns	15 ns	2	1.2 V 2.7 V	Surface Mount	600 V	0.154 in	3.9 mm	14-SOIC	-40 °C	125 ¯C	Non-Inverting	Half-Bridge	4 A	4 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 238.80

Description

General part information

UCC27714 Series

UCC27714 is a 600-V high-side, low-side gate driver with 4-A source and 4-A sink current capability, targeted to drive power MOSFETs or IGBTs. The device comprises of one ground-referenced channel (LO) and one floating channel (HO) which is designed for operating with bootstrap supplies. The device features excellent robustness and noise immunity with capability to maintain operational logic at negative voltages of up to –8 VDCon HS pin (at VDD = 12 V).

The device accepts a wide range bias supply input from 10 V to 20 V and offers UVLO protection for both the VCC and HB bias supply pins. UCC27714 is available in SOIC-14 package and rated to operate from –40°C to 125°C.

Documents

Technical documentation and resources
