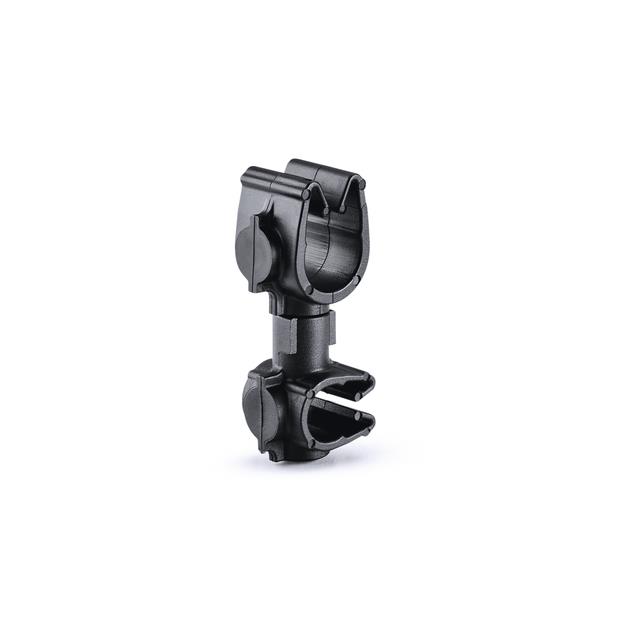

156-01975

Active

HELLERMANNTYTON

MOC7FMOC8M180 PA66HIRHS BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

156-01975

Active

HELLERMANNTYTON

MOC7FMOC8M180 PA66HIRHS BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	156-01975

Color	Black
Features	Impact Modified, Heat Stabilized, UV Stabilized
Height [z]	13.46 mm
Height [z]	0.53 in
Length	1.27 "
Length	32.26 mm
Material	Polyamide (PA66), Nylon 6/6, Halogen Free
Material Flammability Rating	UL94 HB
Opening Size [Max] [z]	0.35 in
Opening Size [Max] [z]	8.89 mm
Opening Size [Min] [z]	0.28 in
Opening Size [Min] [z]	7.11 mm
Type	C-Type, Clip
Type Attributes	Open

156-01 Series

Cable Ties Standoff Fir Tree Cable Tie, 25mm standoff, 10mm Hole Dia, 9.5 Tie, PA66HIRHSUV, Black, 3000/ctn

Part	Type Attributes	Height [z]	Height [z]	Type	Length	Length	Color	Features	Material Flammability Rating	Material	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Max] [z]	Wire/Cable Tie Type	Tensile Strength	Tensile Strength	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Mounting Type	Length - Approximate	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length [x]	Length [x]	Opening Size [Max] [diameter]	Opening Size [Max] [diameter]	Opening Size [Min] [diameter]	Opening Size [Min] [diameter]	Length	Width [x]	Width [x]	Bundle Diameter	Bundle Diameter	Opening Size [Min] [z]	Opening Size [Max] [z]
HELLERMANNTYTON 156-01869	Hinged Locking	32.77 mm	1.29 in	C-Type Clip	2.16 in	54.86 mm	Black	Heat Stabilized Impact Modified UV Stabilized	UL94 HB	Polyamide (PA66) Nylon 6/6 Halogen Free	17.02 mm	0.67 in	21.84 mm	0.86 in
HELLERMANNTYTON 156-01790							Black	Heat Stabilized Impact Modified UV Stabilized		Polyamide (PA66) Nylon 6/6					Locking Standard	22.68 kg	50 lbs	0.089 ft	27.18 mm	1.07 in	Swivel Clip Mount	1 in	0.86 in	22 mm
HELLERMANNTYTON 156-01981	Open	27.18 mm	1.07 in	C-Type Clip			Black	Heat Stabilized Impact Modified UV Stabilized	UL94 HB	Polyamide (PA66) Nylon 6/6 Halogen Free															1.96 "	49.78 mm	0.31 in	7.87 mm	6.1 mm	0.24 in
HELLERMANNTYTON 156-01975	Open	13.46 mm	0.53 in	C-Type Clip	32.26 mm		Black	Heat Stabilized Impact Modified UV Stabilized	UL94 HB	Polyamide (PA66) Nylon 6/6 Halogen Free	7.11 mm	0.28 in	8.89 mm	0.35 in																	1.27 "
HELLERMANNTYTON 156-01348							Black	Heat Stabilized Impact Modified		Polyamide (PA66) Nylon 6/6					Locking Standard	22.68 kg	50 lbs	0.689 ft	210 mm	8.27 in	Swivel Clip Mount	8.25 in										4.7 mm	0.185 in	50 mm	1.97 in
HELLERMANNTYTON 156-01904	Hinged Locking	38.86 mm	1.53 in	C-Type Clip	51.05 mm		Black	Heat Stabilized Impact Modified UV Stabilized	UL94 HB	Polyamide (PA66) Nylon 6/6 Halogen Free																	0.31 in	7.87 mm	6.1 mm	0.24 in	2.01 in
HELLERMANNTYTON 156-01819							Black	Heat Stabilized Impact Modified UV Stabilized		Polyamide (PA66) Nylon 6/6					Locking Standard	22.68 kg	50 lbs	0.089 ft	27.18 mm	1.07 in	Swivel Clip Mount	1 in	0.86 in	22 mm
HELLERMANNTYTON 156-01932	Open	22.86 mm	0.9 in	C-Type Clip	40.64 mm		Black	Heat Stabilized Impact Modified UV Stabilized	UL94 HB	Polyamide (PA66) Nylon 6/6 Halogen Free	4.06 mm		5.59 mm																		1.6 in					0.16 in	0.22 in
HELLERMANNTYTON T30R10C2							White			Polyamide (PA66) Nylon 6/6					Locking Standard	13.61 kg	30 lbs	0.486 ft	148 mm	5.83 in	Free Hanging (In-Line)	5.75 in										3.61 mm	0.142 in	35 mm	1.38 in
HELLERMANNTYTON 156-01972	Open	13.46 mm	0.53 in	C-Type Clip			Black	Heat Stabilized Impact Modified UV Stabilized	UL94 HB	Polyamide (PA66) Nylon 6/6 Halogen Free															1.1 "	27.94 mm	0.31 in	7.87 mm	6.1 mm	0.24 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.39

Description

General part information

156-01 Series

Cable Ties Standoff Fir Tree Cable Tie, 25mm standoff, 10mm Hole Dia, 9.5 Tie, PA66HIRHSUV, Black, 3000/ctn

Documents

Technical documentation and resources
