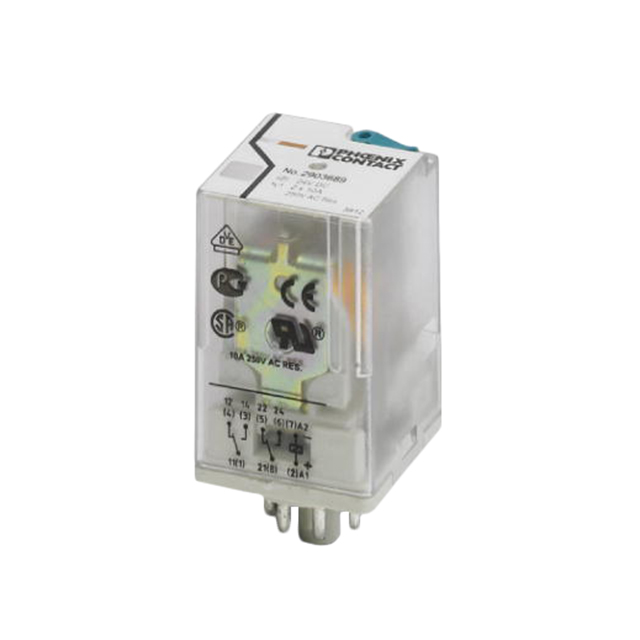

RELAY GEN PURPOSE DPDT 10A 24V

Deep-Dive with AI

Search across all available documentation for this part.

2903689

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 10A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2903689

Coil Current	60 mA
Coil Resistance	400 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Test Button, Lighted Indicator, Diode, Mechanical Indicator
Mounting Type	Socketable
Operate Time	18 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Plug In, 8 Pin (Octal)

REL-IR Series

Industrial Relays Plug-in, 2 PDTs 230 V AC

Part	Relay Type	Coil Resistance	Coil Current	Mounting Type	Contact Form	Features	Switching Voltage	Termination Style	Approval Agency	Release Time	Contact Rating (Current)	Coil Type	Contact Material	Operate Time	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching
Phoenix Contact 2903681	General Purpose	16.2 kOhms	7.7 mA	Socketable	4PDT (4 Form C)	Diode Lighted Indicator Test Button	250 VAC 250 VDC	Plug In	cULus EAC UL VDE	14 ms	6 A	Non Latching	Silver Nickel (AgNi)	13 ms	125 VDC	-40 °C	70 °C
Phoenix Contact 2903689	General Purpose	400 Ohms	60 mA	Socketable	DPDT (2 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button	250 VAC 250 VDC	Plug In 8 Pin (Octal)		20 ms	10 A	Non Latching	Silver Nickel (AgNi)	18 ms	24 VDC	-40 °C	70 °C
Phoenix Contact 2903683	General Purpose	363.6 Ohms	66 mA	Socketable	4PDT (4 Form C)		250 VAC 250 VDC	Plug In	cULus EAC UL VDE	20 ms	6 A	Non Latching	Gold (Au) Silver Nickel (AgNi)	15 ms	24 VAC	-40 °C	55 °C
Phoenix Contact 2903685	General Purpose	35.4 kOhms	6.5 mA	Socketable	4PDT (4 Form C)		250 VAC 250 VDC	Plug In	cULus EAC UL VDE	20 ms	6 A	Non Latching	Gold (Au) Silver Nickel (AgNi)	15 ms	230 VAC	-40 °C	55 °C
Phoenix Contact 2903673	General Purpose	13.8 kOhms		Socketable	4PDT (4 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button	250 VAC 250 VDC	Plug In	cULus EAC UL VDE	14 ms	6 A	Non Latching	Gold (Au) Silver Nickel (AgNi)	13 ms	110 VDC	-40 °C	70 °C
Phoenix Contact 2903692	General Purpose	17.69 kOhms	13 mA	Socketable	DPDT (2 Form C)		250 VAC 250 VDC	Plug In 8 Pin (Octal)		20 ms	10 A	Non Latching	Silver Nickel (AgNi)	15 ms	230 VAC	-40 °C	55 °C
Phoenix Contact 2903665	General Purpose	55 kOhms	4 mA	Socketable	DPDT (2 Form C)	Diode Lighted Indicator Test Button	250 VAC 250 VDC	Plug In	cULus EAC UL VDE	14 ms	12 A	Non Latching	Silver Nickel (AgNi)	13 ms	220 VDC	-40 °C	70 °C
Phoenix Contact 2903676	General Purpose	154 Ohms	78 mA	Socketable	4PDT (4 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button	250 VAC 250 VDC	Plug In	cULus EAC UL VDE	14 ms	6 A	Non Latching	Silver Nickel (AgNi)	13 ms	12 VDC	-40 °C	70 °C
Phoenix Contact 2903672	General Purpose	3.3 kOhms	18 mA	Socketable	4PDT (4 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button	250 VAC 250 VDC	Plug In	cULus EAC UL VDE	14 ms	6 A	Non Latching	Gold (Au) Silver Nickel (AgNi)	13 ms	60 VDC	-40 °C	70 °C
Phoenix Contact 2903698	General Purpose	429 Ohms	56 mA	Socketable	DPDT (2 Form C)			Plug In	CSA cURus EAC UR	15 ms	16 A	Non Latching	Silver Nickel (AgNi)	20 ms	24 VDC	-40 °C	70 °C	4000 W 7040 VA
