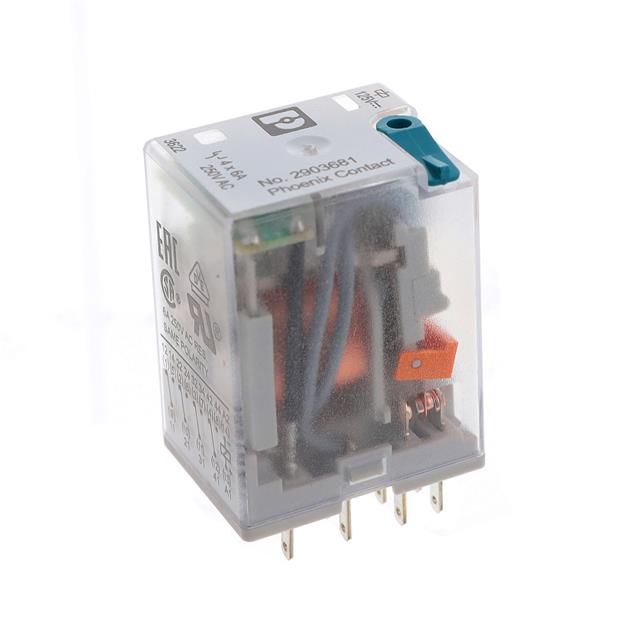

2903681

Active

Phoenix Contact

RELAY GEN PURPOSE 4PDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2903681

Active

Phoenix Contact

RELAY GEN PURPOSE 4PDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2903681

Approval Agency	VDE, UL, EAC, cULus
Coil Current	7.7 mA
Coil Resistance	16.2 kOhms
Coil Type	Non Latching
Coil Voltage	125 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Diode, Test Button
Mounting Type	Socketable
Operate Time	13 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	14 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Plug In

REL-IR Series

Industrial Relays Plug-in, 2 PDTs 230 V AC

Part	Relay Type	Coil Resistance	Coil Current	Mounting Type	Contact Form	Features	Switching Voltage	Termination Style	Approval Agency	Release Time	Contact Rating (Current)	Coil Type	Contact Material	Operate Time	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching
Phoenix Contact 2903681	General Purpose	16.2 kOhms	7.7 mA	Socketable	4PDT (4 Form C)	Diode Lighted Indicator Test Button	250 VAC 250 VDC	Plug In	cULus EAC UL VDE	14 ms	6 A	Non Latching	Silver Nickel (AgNi)	13 ms	125 VDC	-40 °C	70 °C
Phoenix Contact 2903689	General Purpose	400 Ohms	60 mA	Socketable	DPDT (2 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button	250 VAC 250 VDC	Plug In 8 Pin (Octal)		20 ms	10 A	Non Latching	Silver Nickel (AgNi)	18 ms	24 VDC	-40 °C	70 °C
Phoenix Contact 2903683	General Purpose	363.6 Ohms	66 mA	Socketable	4PDT (4 Form C)		250 VAC 250 VDC	Plug In	cULus EAC UL VDE	20 ms	6 A	Non Latching	Gold (Au) Silver Nickel (AgNi)	15 ms	24 VAC	-40 °C	55 °C
Phoenix Contact 2903685	General Purpose	35.4 kOhms	6.5 mA	Socketable	4PDT (4 Form C)		250 VAC 250 VDC	Plug In	cULus EAC UL VDE	20 ms	6 A	Non Latching	Gold (Au) Silver Nickel (AgNi)	15 ms	230 VAC	-40 °C	55 °C
Phoenix Contact 2903673	General Purpose	13.8 kOhms		Socketable	4PDT (4 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button	250 VAC 250 VDC	Plug In	cULus EAC UL VDE	14 ms	6 A	Non Latching	Gold (Au) Silver Nickel (AgNi)	13 ms	110 VDC	-40 °C	70 °C
Phoenix Contact 2903692	General Purpose	17.69 kOhms	13 mA	Socketable	DPDT (2 Form C)		250 VAC 250 VDC	Plug In 8 Pin (Octal)		20 ms	10 A	Non Latching	Silver Nickel (AgNi)	15 ms	230 VAC	-40 °C	55 °C
Phoenix Contact 2903665	General Purpose	55 kOhms	4 mA	Socketable	DPDT (2 Form C)	Diode Lighted Indicator Test Button	250 VAC 250 VDC	Plug In	cULus EAC UL VDE	14 ms	12 A	Non Latching	Silver Nickel (AgNi)	13 ms	220 VDC	-40 °C	70 °C
Phoenix Contact 2903676	General Purpose	154 Ohms	78 mA	Socketable	4PDT (4 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button	250 VAC 250 VDC	Plug In	cULus EAC UL VDE	14 ms	6 A	Non Latching	Silver Nickel (AgNi)	13 ms	12 VDC	-40 °C	70 °C
Phoenix Contact 2903672	General Purpose	3.3 kOhms	18 mA	Socketable	4PDT (4 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button	250 VAC 250 VDC	Plug In	cULus EAC UL VDE	14 ms	6 A	Non Latching	Gold (Au) Silver Nickel (AgNi)	13 ms	60 VDC	-40 °C	70 °C
Phoenix Contact 2903698	General Purpose	429 Ohms	56 mA	Socketable	DPDT (2 Form C)			Plug In	CSA cURus EAC UR	15 ms	16 A	Non Latching	Silver Nickel (AgNi)	20 ms	24 VDC	-40 °C	70 °C	4000 W 7040 VA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.66
		10	$ 8.09
		50	$ 7.44
		100	$ 6.88
		250	$ 6.55
		500	$ 6.52

Description

General part information

REL-IR Series

Industrial Relays Plug-in, 2 PDTs 230 V AC

Documents

Technical documentation and resources
