FH12A-45S-0.5SH(55)

Active

Hirose Electric USA, Inc.

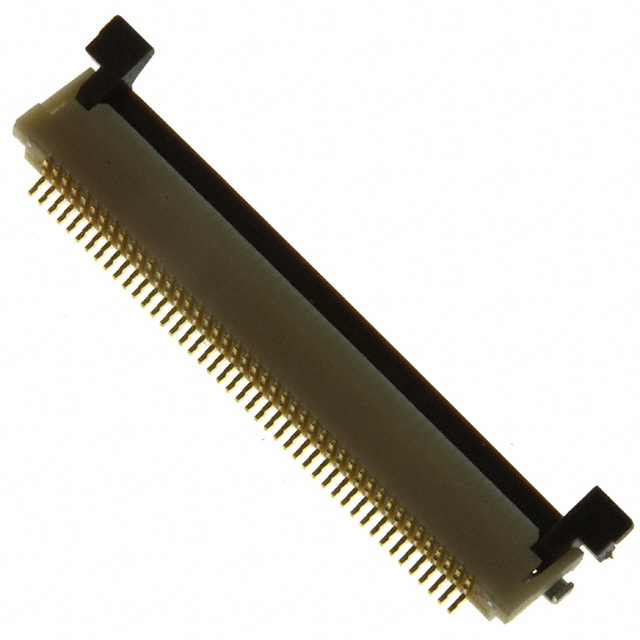

CONN FFC FPC TOP 45POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFH12A-xxS-0.5SH(55) Spec Datasheet

FH12A-45S-0.5SH(55)

Active

Hirose Electric USA, Inc.

CONN FFC FPC TOP 45POS 0.5MM R/A

Deep-Dive with AI

DocumentsFH12A-xxS-0.5SH(55) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH12A-45S-0.5SH(55)

Actuator Color	Brown
Actuator Material	Polyphenylene Sulfide (PPS)
Cable End Type	Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	Beige
Housing Material	Polyamide (PA), Nylon
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	45
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

FH12 Series

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Cable End Type	FFC, FCB Thickness	Housing Color	Number of Positions	Locking Feature	Actuator Color	Flat Flex Type	Current Rating (Amps)	Connector/Contact Type	Housing Material	Actuator Material	Mounting Type	Contact Finish	Voltage Rating	Termination	Height Above Board	Height Above Board	Material Flammability Rating	Contact Material	Pitch [x]	Pitch [x]	Features
Hirose Electric USA, Inc. FH12A-45S-0.5SH(1)(98)	85 °C	-40 °C	20	Straight	0.3 mm	Beige	45	Flip Lock	Brown	FFC FPC	0.5 A	Contacts Top	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	Surface Mount	Gold	50 V	Solder	0.079 in	2 mm	UL94 V-0	Phosphor Bronze	0.5 mm	0.02 in
Hirose Electric USA, Inc. FH12-32S-0.5SH(1)(98)	85 °C	-40 °C	20	Straight	0.3 mm	Beige		Flip Lock	Brown	FFC FPC	0.5 A	Contacts Bottom	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	Surface Mount Right Angle	Gold	50 V	Solder	0.079 in	2 mm	UL94 V-0	Phosphor Bronze	0.5 mm	0.02 in
Hirose Electric USA, Inc. FH12-6S-1SH(55)	85 °C	-40 °C	20	Straight	0.3 mm	Beige	6	Flip Lock	Brown	FFC FPC	0.5 A	Contacts Bottom	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	Surface Mount Right Angle	Gold	50 V	Solder	0.079 in	2 mm	UL94 V-0	Phosphor Bronze	1 mm	0.039 in	Solder Retention Zero Insertion Force (ZIF)
Hirose Electric USA, Inc. FH12-17S-0.5SH(1)(98)	85 °C	-40 °C	20	Straight	0.3 mm	Beige		Flip Lock	Brown	FFC FPC	0.5 A	Contacts Bottom	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	Surface Mount Right Angle	Gold	50 V	Solder	0.079 in	2 mm	UL94 V-0	Phosphor Bronze	0.5 mm	0.02 in
Hirose Electric USA, Inc. FH12-11S-1SH(1)(98)	85 °C	-40 °C	20	Straight	0.3 mm	Beige	11	Flip Lock	Brown	FFC FPC	0.5 A	Contacts Bottom	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	Surface Mount Right Angle	Gold	50 V	Solder	0.079 in	2 mm	UL94 V-0	Phosphor Bronze	1 mm	0.039 in	Solder Retention Zero Insertion Force (ZIF)
Hirose Electric USA, Inc. FH12A-34S-0.5SH(1)(98)	85 °C	-40 °C	20	Straight	0.3 mm	Beige	34	Flip Lock	Brown	FFC FPC	0.5 A	Contacts Top	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	Surface Mount Right Angle	Gold	50 V	Solder	0.079 in	2 mm	UL94 V-0	Phosphor Bronze	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)
Hirose Electric USA, Inc. FH12F-13S-0.5SH(55)	85 °C	-40 °C	20	Straight	0.18 mm	Beige	13	Flip Lock	Brown	FFC FPC	0.5 A	Contacts Bottom	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	Surface Mount Right Angle	Gold	50 V	Solder	0.079 in	2 mm	UL94 V-0	Phosphor Bronze	0.5 mm	0.02 in
Hirose Electric USA, Inc. FH12-6S-0.5SH(1)(98)	85 °C	-40 °C	20	Straight	0.3 mm	Beige	6	Flip Lock	Brown	FFC FPC	0.5 A	Contacts Bottom	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	Surface Mount Right Angle	Gold	50 V	Solder	0.079 in	2 mm	UL94 V-0	Phosphor Bronze	0.5 mm	0.02 in
Hirose Electric USA, Inc. FH12-28S-0.5SH(55)	85 °C	-40 °C	20	Straight	0.3 mm	Beige	28	Flip Lock	Brown	FFC FPC	0.5 A	Contacts Bottom	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	Surface Mount Right Angle	Gold	50 V	Solder	0.079 in	2 mm	UL94 V-0	Phosphor Bronze	0.5 mm	0.02 in
Hirose Electric USA, Inc. FH12A-45S-0.5SH(55)	85 °C	-40 °C	20	Straight	0.3 mm	Beige	45	Flip Lock	Brown	FFC FPC	0.5 A	Contacts Top	Polyamide (PA) Nylon	Polyphenylene Sulfide (PPS)	Surface Mount Right Angle	Gold	50 V	Solder	0.079 in	2 mm	UL94 V-0	Phosphor Bronze	0.5 mm	0.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.60
		10	$ 2.21
		25	$ 2.07
		50	$ 1.97
		100	$ 1.87
		250	$ 1.76
		500	$ 1.67
		1000	$ 1.64
	Digi-Reel®	1	$ 3.00
		10	$ 2.73
		25	$ 2.58
		50	$ 2.52
		100	$ 2.40
		250	$ 2.10
		500	$ 2.04
		1000	$ 1.74
	Tape & Reel (TR)	2000	$ 1.50
		4000	$ 1.42
		6000	$ 1.38

Description

General part information

FH12 Series

45 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

FH12A-xxS-0.5SH(55) Spec

Datasheet
