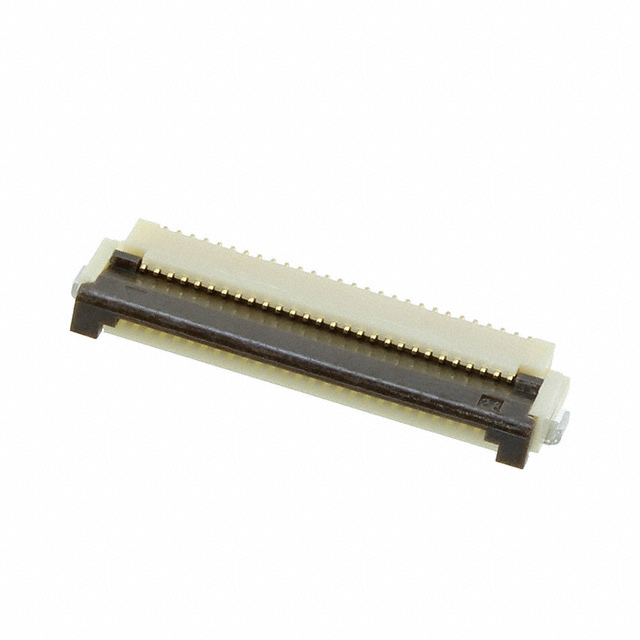

FH12-28S-0.5SH(55)
ActiveHirose Electric USA, Inc.
CONN FFC BOTTOM 28POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
FH12-28S-0.5SH(55)
ActiveHirose Electric USA, Inc.
CONN FFC BOTTOM 28POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FH12-28S-0.5SH(55) |
|---|---|
| Actuator Color | Brown |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Cable End Type | Straight |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.079 in |
| Height Above Board | 2 mm |
| Housing Color | Beige |
| Housing Material | Polyamide (PA), Nylon |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 28 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
FH12 Series
...
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Cable End Type | FFC, FCB Thickness | Housing Color | Number of Positions | Locking Feature | Actuator Color | Flat Flex Type | Current Rating (Amps) | Connector/Contact Type | Housing Material | Actuator Material | Mounting Type | Contact Finish | Voltage Rating | Termination | Height Above Board | Height Above Board | Material Flammability Rating | Contact Material | Pitch [x] | Pitch [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 85 °C | -40 °C | 20 | Straight | 0.3 mm | Beige | 45 | Flip Lock | Brown | FFC FPC | 0.5 A | Contacts Top | Polyamide (PA) Nylon | Polyphenylene Sulfide (PPS) | Surface Mount | Gold | 50 V | Solder | 0.079 in | 2 mm | UL94 V-0 | Phosphor Bronze | 0.5 mm | 0.02 in | |
Hirose Electric USA, Inc. | 85 °C | -40 °C | 20 | Straight | 0.3 mm | Beige | Flip Lock | Brown | FFC FPC | 0.5 A | Contacts Bottom | Polyamide (PA) Nylon | Polyphenylene Sulfide (PPS) | Surface Mount Right Angle | Gold | 50 V | Solder | 0.079 in | 2 mm | UL94 V-0 | Phosphor Bronze | 0.5 mm | 0.02 in | ||
Hirose Electric USA, Inc. | 85 °C | -40 °C | 20 | Straight | 0.3 mm | Beige | 6 | Flip Lock | Brown | FFC FPC | 0.5 A | Contacts Bottom | Polyamide (PA) Nylon | Polyphenylene Sulfide (PPS) | Surface Mount Right Angle | Gold | 50 V | Solder | 0.079 in | 2 mm | UL94 V-0 | Phosphor Bronze | 1 mm | 0.039 in | Solder Retention Zero Insertion Force (ZIF) |
Hirose Electric USA, Inc. | 85 °C | -40 °C | 20 | Straight | 0.3 mm | Beige | Flip Lock | Brown | FFC FPC | 0.5 A | Contacts Bottom | Polyamide (PA) Nylon | Polyphenylene Sulfide (PPS) | Surface Mount Right Angle | Gold | 50 V | Solder | 0.079 in | 2 mm | UL94 V-0 | Phosphor Bronze | 0.5 mm | 0.02 in | ||
Hirose Electric USA, Inc. | 85 °C | -40 °C | 20 | Straight | 0.3 mm | Beige | 11 | Flip Lock | Brown | FFC FPC | 0.5 A | Contacts Bottom | Polyamide (PA) Nylon | Polyphenylene Sulfide (PPS) | Surface Mount Right Angle | Gold | 50 V | Solder | 0.079 in | 2 mm | UL94 V-0 | Phosphor Bronze | 1 mm | 0.039 in | Solder Retention Zero Insertion Force (ZIF) |
Hirose Electric USA, Inc. | 85 °C | -40 °C | 20 | Straight | 0.3 mm | Beige | 34 | Flip Lock | Brown | FFC FPC | 0.5 A | Contacts Top | Polyamide (PA) Nylon | Polyphenylene Sulfide (PPS) | Surface Mount Right Angle | Gold | 50 V | Solder | 0.079 in | 2 mm | UL94 V-0 | Phosphor Bronze | 0.5 mm | 0.02 in | Solder Retention Zero Insertion Force (ZIF) |
Hirose Electric USA, Inc. | 85 °C | -40 °C | 20 | Straight | 0.18 mm | Beige | 13 | Flip Lock | Brown | FFC FPC | 0.5 A | Contacts Bottom | Polyamide (PA) Nylon | Polyphenylene Sulfide (PPS) | Surface Mount Right Angle | Gold | 50 V | Solder | 0.079 in | 2 mm | UL94 V-0 | Phosphor Bronze | 0.5 mm | 0.02 in | |
Hirose Electric USA, Inc. | 85 °C | -40 °C | 20 | Straight | 0.3 mm | Beige | 6 | Flip Lock | Brown | FFC FPC | 0.5 A | Contacts Bottom | Polyamide (PA) Nylon | Polyphenylene Sulfide (PPS) | Surface Mount Right Angle | Gold | 50 V | Solder | 0.079 in | 2 mm | UL94 V-0 | Phosphor Bronze | 0.5 mm | 0.02 in | |
Hirose Electric USA, Inc. | 85 °C | -40 °C | 20 | Straight | 0.3 mm | Beige | 28 | Flip Lock | Brown | FFC FPC | 0.5 A | Contacts Bottom | Polyamide (PA) Nylon | Polyphenylene Sulfide (PPS) | Surface Mount Right Angle | Gold | 50 V | Solder | 0.079 in | 2 mm | UL94 V-0 | Phosphor Bronze | 0.5 mm | 0.02 in | |
Hirose Electric USA, Inc. | 85 °C | -40 °C | 20 | Straight | 0.3 mm | Beige | 45 | Flip Lock | Brown | FFC FPC | 0.5 A | Contacts Top | Polyamide (PA) Nylon | Polyphenylene Sulfide (PPS) | Surface Mount Right Angle | Gold | 50 V | Solder | 0.079 in | 2 mm | UL94 V-0 | Phosphor Bronze | 0.5 mm | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.54 | |
| 10 | $ 2.21 | |||
| 25 | $ 2.11 | |||
| 50 | $ 2.07 | |||
| 100 | $ 1.97 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.64 | |||
| 1000 | $ 1.41 | |||
| Digi-Reel® | 1 | $ 2.54 | ||
| 10 | $ 2.21 | |||
| 25 | $ 2.11 | |||
| 50 | $ 2.07 | |||
| 100 | $ 1.97 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.64 | |||
| 1000 | $ 1.41 | |||
| Tape & Reel (TR) | 2000 | $ 1.16 | ||
Description
General part information
FH12 Series
28 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
