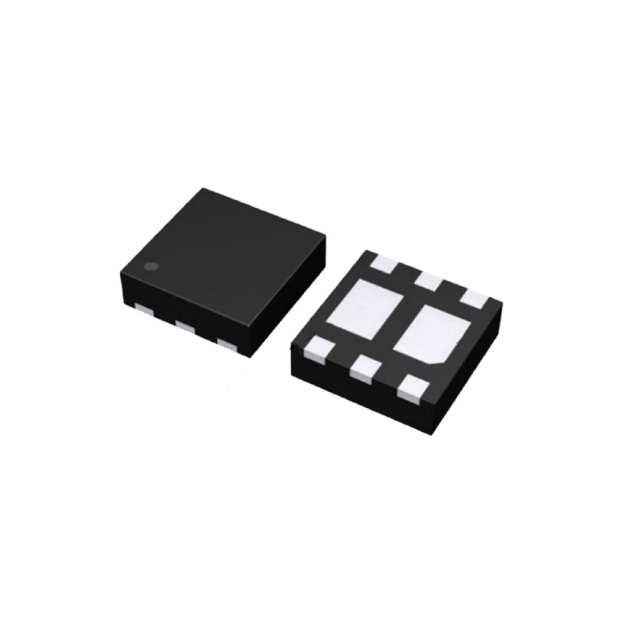

UT6K3TCR1

Active

Rohm Semiconductor

MOSFET 2N-CH 30V 5.5A HUML2020L8

Search across all available documentation for this part.

Active

Rohm Semiconductor

MOSFET 2N-CH 30V 5.5A HUML2020L8

Technical Specifications

Parameters and characteristics for this part

Specification	UT6K3TCR1

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	5.5 A
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs	4 nC
Input Capacitance (Ciss) (Max) @ Vds	450 pF
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	8-PowerUDFN
Power - Max [Max]	2 W
Rds On (Max) @ Id, Vgs	42 mOhm
Supplier Device Package	HUML2020L8
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1.5 V

Part	Drain to Source Voltage (Vdss)	Operating Temperature	Configuration	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Technology	Package / Case	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs	Power - Max [Max]
Rohm Semiconductor UT6K3TCR1	30 V	150 °C	2 N-Channel (Dual)	Surface Mount	5.5 A	42 mOhm	1.5 V	MOSFET (Metal Oxide)	8-PowerUDFN	HUML2020L8	450 pF	4 nC	2 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 30V 5.5A (Ta) 2W (Ta) Surface Mount HUML2020L8
