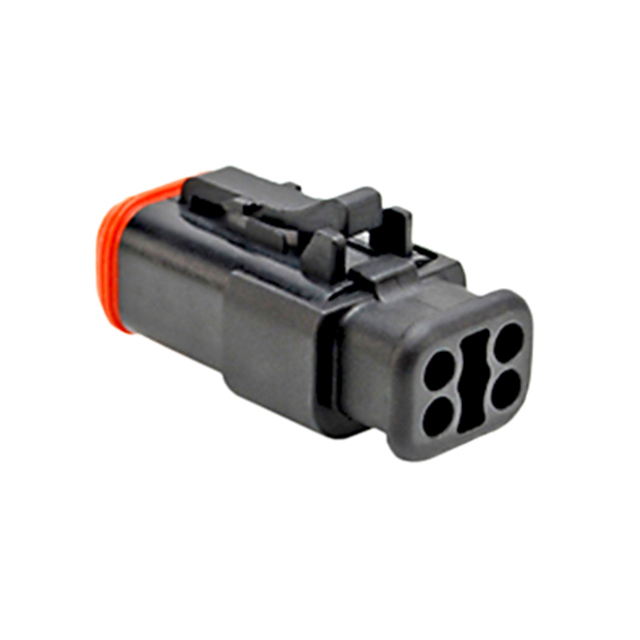

AT06-4S-SR02BLK

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 4POS STRAIN RELIEF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AT Series SR01/02

AT06-4S-SR02BLK

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 4POS STRAIN RELIEF

Deep-Dive with AI

DocumentsDatasheet AT Series SR01/02

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-4S-SR02BLK

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Strain Relief
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT06-4S Series

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Insulation Material	Contact Termination	Note	Number of Positions	Features	Color	Mounting Type	Number of Rows
Amphenol Sine Systems Corp AT06-4S-BLU	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Sealed	Blue	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-OMBLU	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	Crimp	Contacts Not Included	4	IP67	Blue	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Sealed	Gray	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-RD01ORG	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp		4	Sealed		Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-OMRDYEL	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	Crimp		4	Sealed	Yellow	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-SR02BLK	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Strain Relief	Black	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-BLK	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Sealed	Black	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-YEL	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Sealed	Yellow	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-SR01GRY	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Cap (Cover) IP68 IP69K Sealed Strain Relief	Gray	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-RED	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Sealed	Red	Free Hanging (In-Line)	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.00
		10	$ 2.73
		25	$ 2.58
		50	$ 2.52
		100	$ 2.40
		400	$ 2.10
		800	$ 1.86
		1200	$ 1.74
		2800	$ 1.62

Description

General part information

AT06-4S Series

4 Rectangular Connectors - Housings Plug Black

Documents

Technical documentation and resources

Datasheet

AT Series SR01/02

Datasheet
