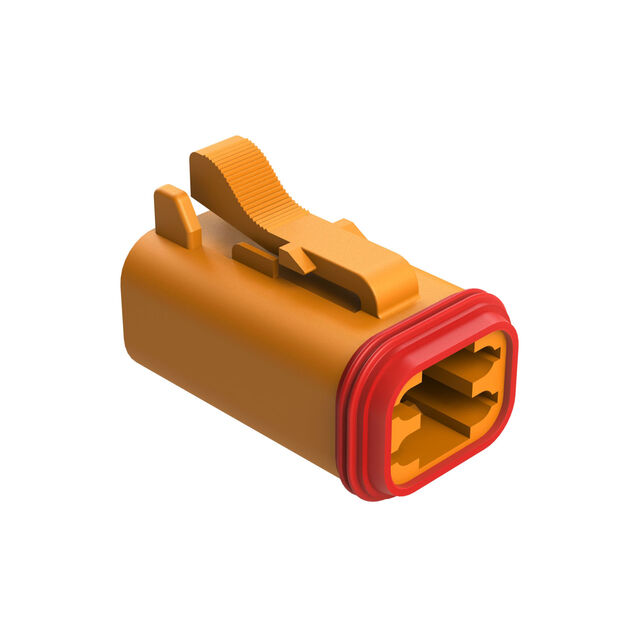

AT06-4S-RD01ORG

Active

Amphenol Sine Systems Corp

4-WAY PLUG, FEMALE CONNECTOR WIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AT06-4S-RD01ORG

Active

Amphenol Sine Systems Corp

4-WAY PLUG, FEMALE CONNECTOR WIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-4S-RD01ORG

Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT06-4S Series

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Insulation Material	Contact Termination	Note	Number of Positions	Features	Color	Mounting Type	Number of Rows
Amphenol Sine Systems Corp AT06-4S-BLU	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Sealed	Blue	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-OMBLU	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	Crimp	Contacts Not Included	4	IP67	Blue	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Sealed	Gray	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-RD01ORG	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp		4	Sealed		Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-OMRDYEL	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	Crimp		4	Sealed	Yellow	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-SR02BLK	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Strain Relief	Black	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-BLK	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Sealed	Black	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-YEL	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Sealed	Yellow	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-SR01GRY	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Cap (Cover) IP68 IP69K Sealed Strain Relief	Gray	Free Hanging (In-Line)	2
Amphenol Sine Systems Corp AT06-4S-RED	Latch Lock	-55 °C	125 °C	Plug	Female Socket	Thermoplastic	Crimp	Contacts Not Included	4	Sealed	Red	Free Hanging (In-Line)	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2.01
		10	$ 1.71
		25	$ 1.60
		50	$ 1.52
		100	$ 1.45
		250	$ 1.36
		900	$ 1.24
		1800	$ 1.18
		2700	$ 1.15

Description

General part information

AT06-4S Series

4 Rectangular Connectors - Housings Plug Orange
