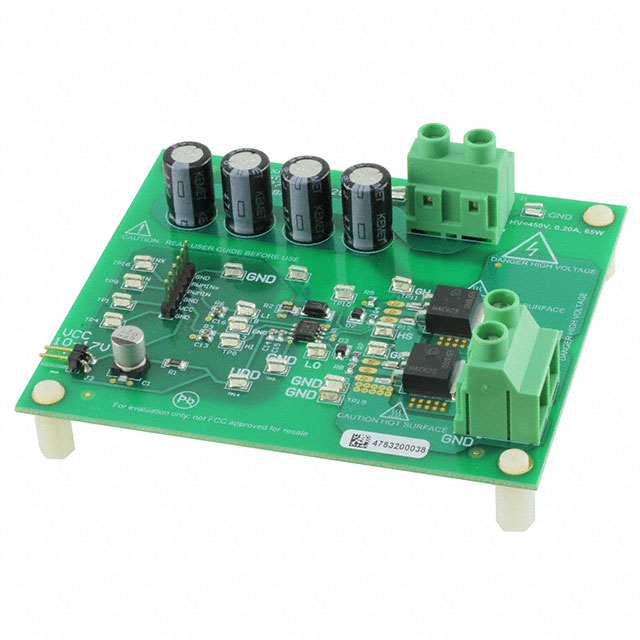

UCC27712EVM-287

Active

Texas Instruments

EVALUATION MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UCC27712EVM-287

Active

Texas Instruments

EVALUATION MODULE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC27712EVM-287

Function	Gate Driver
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	UCC27712

UCC27712-Q1 Series

Automotive 1.8-A/2.8-A, 620V half bridge gate driver with interlock

Part	Utilized IC / Part	Function	Type	Supplied Contents	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Mounting Type	Channel Type	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Grade	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Driven Configuration	High Side Voltage - Max (Bootstrap) [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Qualification	Number of Drivers
Texas Instruments UCC27712EVM-287	UCC27712	Gate Driver	Power Management	Board(s)
Texas Instruments UCC27712QDRQ1					1.8 A	2.8 A	Surface Mount	Independent	1.5 V	1.6 V	-40 °C	125 ¯C	10 ns	16 ns	Automotive	20 V	10 VDC	8-SOIC	Half-Bridge	600 V	8-SOIC	3.9 mm	0.154 in	AEC-Q100	2
Texas Instruments UCC27712D					1.8 A	2.8 A	Surface Mount	Independent			-40 °C	125 °C	10 ns	16 ns		20 V	10 VDC	8-SOIC	Half-Bridge	600 V	8-SOIC	3.9 mm	0.154 in		2
Texas Instruments UCC27712QDQ1					1.8 A	2.8 A	Surface Mount	Independent			-40 °C	125 °C	10 ns	16 ns	Automotive	20 V	10 VDC	8-SOIC	Half-Bridge	600 V	8-SOIC	3.9 mm	0.154 in	AEC-Q100	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 118.80

Description

General part information

UCC27712-Q1 Series

The UCC27712-Q1 is a 620-V high-side and low-side gate driver with 1.8-A source, 2.8-A sink current, targeted to drive power MOSFETs or IGBTs.

The recommended VDD operating voltage is 10-V to 20-V for IGBT’s and 10-V to 17-V for power MOSFETs.

The UCC27712-Q1 includes protection features where the outputs are held low when the inputs are left open or when the minimum input pulse width specification is not met. Interlock and deadtime functions prevent both outputs from being turned on simultaneously. In addition, the device accepts a wide range bias supply range from 10 V to 22 V, and offers UVLO protection for both the VDD and HB bias supply.
