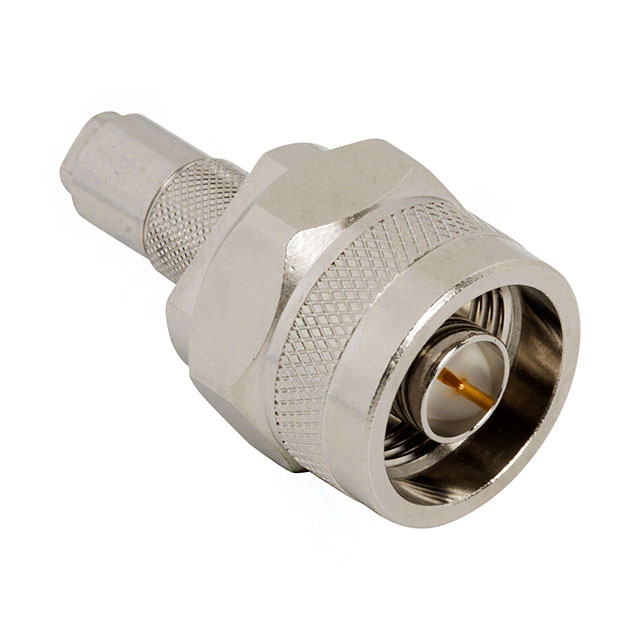

AD-NP1023P-1

Active

Amphenol RF

N-TYPE PLUG TO 1.0-2.3 PLUG 75 O

Search across all available documentation for this part.

Active

Amphenol RF

N-TYPE PLUG TO 1.0-2.3 PLUG 75 O

Technical Specifications

Parameters and characteristics for this part

Specification	AD-NP1023P-1

Adapter Series	N to 1.0/2.3
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	1.0/2.3 Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Body Finish	Conversion Type	Style	Center Contact Material	Convert From (Adapter End)	Body Material	Frequency - Max [Max]	Adapter Series	Adapter Type	Dielectric Material	Impedance	Center Gender	Convert To (Adapter End)	Mating Cycles
Amphenol RF AD-NP1023P-1	Gold	-40 °C	155 °C	Free Hanging (In-Line)	Nickel	Between Series	Straight	Brass	N Plug Male Pin	Brass	12 GHz	N to 1.0/2.3	Plug to Plug	Polytetrafluoroethylene (PTFE)	75 Ohms	Male to Male	1.0/2.3 Plug Male Pin	500
Amphenol RF AD-NP1023J-1	Gold	-40 °C	155 °C	Free Hanging (In-Line)	Nickel	Between Series	Straight	Beryllium Copper	N Plug Male Pin	Brass	12 GHz	N to 1.0/2.3	Plug to Jack	Polytetrafluoroethylene (PTFE)	75 Ohms		1.0/2.3 Jack Female Socket	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 99.64

General part information

Adapter Coaxial Connector N Plug, Male Pin To 1.0/2.3 Plug, Male Pin 75 Ohms
