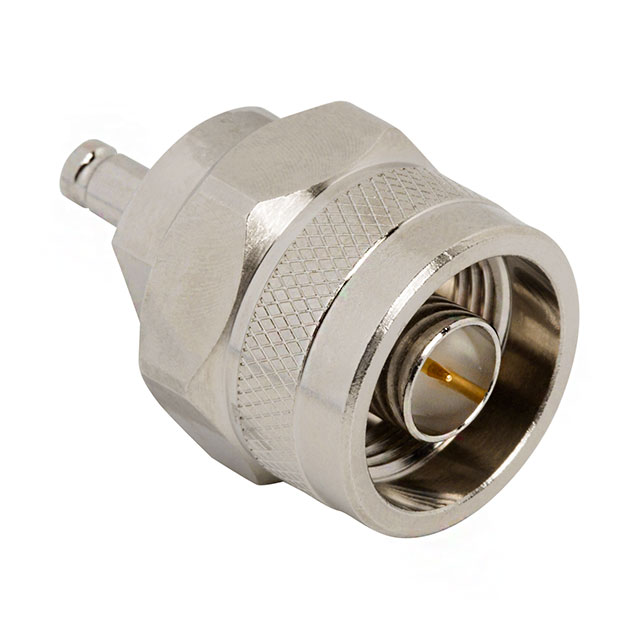

AD-NP1023J-1

Active

Amphenol RF

N-TYPE PLUG TO 1.0-2.3 JACK 75 O

Search across all available documentation for this part.

Active

Amphenol RF

N-TYPE PLUG TO 1.0-2.3 JACK 75 O

Technical Specifications

Parameters and characteristics for this part

Specification	AD-NP1023J-1

Adapter Series	N to 1.0/2.3
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	1.0/2.3 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Body Finish	Conversion Type	Style	Center Contact Material	Convert From (Adapter End)	Body Material	Frequency - Max [Max]	Adapter Series	Adapter Type	Dielectric Material	Impedance	Center Gender	Convert To (Adapter End)	Mating Cycles
Amphenol RF AD-NP1023P-1	Gold	-40 °C	155 °C	Free Hanging (In-Line)	Nickel	Between Series	Straight	Brass	N Plug Male Pin	Brass	12 GHz	N to 1.0/2.3	Plug to Plug	Polytetrafluoroethylene (PTFE)	75 Ohms	Male to Male	1.0/2.3 Plug Male Pin	500
Amphenol RF AD-NP1023J-1	Gold	-40 °C	155 °C	Free Hanging (In-Line)	Nickel	Between Series	Straight	Beryllium Copper	N Plug Male Pin	Brass	12 GHz	N to 1.0/2.3	Plug to Jack	Polytetrafluoroethylene (PTFE)	75 Ohms		1.0/2.3 Jack Female Socket	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 44.92

General part information

Adapter Coaxial Connector N Plug, Male Pin To 1.0/2.3 Jack, Female Socket 75 Ohms
