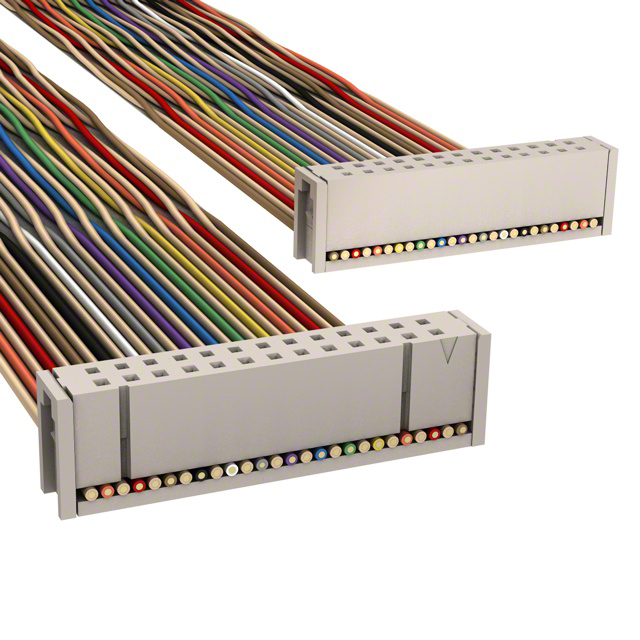

M3AAA-2640K
Active3M (TC)
IDC CABLE - MSC26A/MC26F/MSC26A
Deep-Dive with AI
Search across all available documentation for this part.
M3AAA-2640K
Active3M (TC)
IDC CABLE - MSC26A/MC26F/MSC26A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3AAA-2640K |
|---|---|
| Cable Termination | IDC |
| Color | Multiple, Twisted Pair (Flat) |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Length [x] | 1.02 m |
| Length [x] | 3.34 ft |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
M3AAA Series
| Part | Pitch - Connector | Pitch - Connector | Contact Finish | Pitch - Cable | Pitch - Cable | Connector Type | Shielding | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Color | Number of Rows | Length | Length | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.05 " | 1.27 mm | Socket to Socket | Unshielded | IDC | 0.76 Ám | 30 Áin | 60 | Multiple Twisted Pair (Flat) | 2 | 508 mm | 1.67 ft | ||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.05 " | 1.27 mm | Socket to Socket | Unshielded | IDC | 0.76 Ám | 30 Áin | 30 | Multiple Ribbon | 2 | 3 ft | 914.4 mm | ||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.05 " | 1.27 mm | Socket to Socket | Unshielded | IDC | 0.76 Ám | 30 Áin | 24 | 2 | 1.5 ft | 457.2 mm | |||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.05 " | 1.27 mm | Socket to Socket | Unshielded | IDC | 0.76 Ám | 30 Áin | 20 | Multiple Twisted Pair (Flat) | 2 | 508 mm | 1.67 ft | ||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.05 " | 1.27 mm | Socket to Socket | Unshielded | IDC | 0.76 Ám | 30 Áin | 60 | Multiple Twisted Pair (Flat) | 2 | 1.52 m | 5 ' | ||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.05 " | 1.27 mm | Socket to Socket | Unshielded | IDC | 0.76 Ám | 30 Áin | 34 | 2 | 1.5 ft | 457.2 mm | |||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.05 " | 1.27 mm | Socket to Socket | Unshielded | IDC | 0.76 Ám | 30 Áin | 14 | 2 | 1.5 ft | 457.2 mm | |||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.05 " | 1.27 mm | Socket to Socket | Unshielded | IDC | 0.76 Ám | 30 Áin | 26 | Multiple Twisted Pair (Flat) | 2 | 3.34 ft | 1.02 m | ||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.05 " | 1.27 mm | Socket to Socket | Unshielded | IDC | 0.76 Ám | 30 Áin | 30 | 2 | 152.4 mm | 6 " | 0.5 ' | ||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.05 " | 1.27 mm | Socket to Socket | Unshielded | IDC | 0.76 Ám | 30 Áin | 50 | Multiple Twisted Pair (Flat) | 2 | 1.52 m | 5 ' |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.05 | |
| 10 | $ 13.12 | |||
| 25 | $ 11.86 | |||
| 50 | $ 11.02 | |||
| 100 | $ 10.25 | |||
| 250 | $ 9.34 | |||
| 500 | $ 8.73 | |||
| 1000 | $ 8.18 | |||
Description
General part information
M3AAA Series
26 Position Cable Assembly Rectangular Socket to Socket 3.34' (1.02m)
