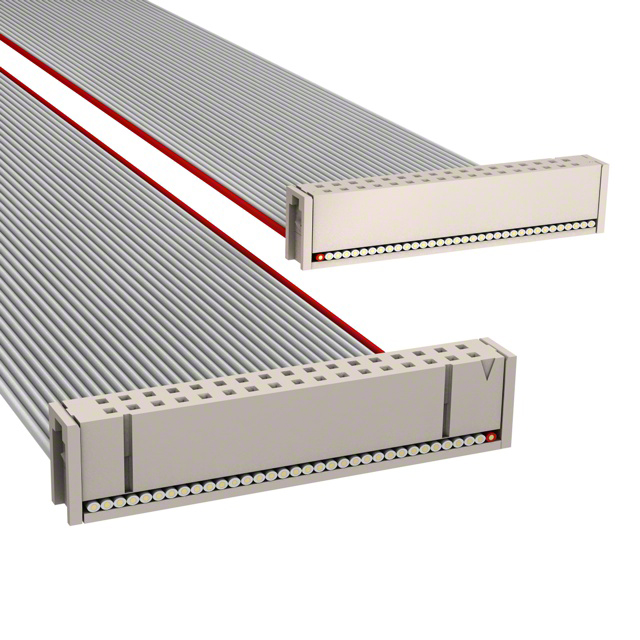

M3AAA-3418J - M3AAA-34 G

M3AAA-3418J

Active
3M (TC)

IDC CABLE - MSC34A/MC34G/MSC34A

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet891 Series Datasheet+1
M3AAA-3418J - M3AAA-34 G

M3AAA-3418J

Active
3M (TC)

IDC CABLE - MSC34A/MC34G/MSC34A

Deep-Dive with AI

Documents3365 Series Datasheet891 Series Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationM3AAA-3418J
Cable TerminationIDC
Connector TypeSocket to Socket
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Length [x]457.2 mm
Length [x]1.5 ft
Number of Positions34
Number of Rows2
Pitch - Cable0.05 "
Pitch - Cable1.27 mm
Pitch - Connector0.1 in
Pitch - Connector2.54 mm
ShieldingUnshielded

M3AAA Series

PartPitch - ConnectorPitch - ConnectorContact FinishPitch - CablePitch - CableConnector TypeShieldingCable TerminationContact Finish ThicknessContact Finish ThicknessNumber of PositionsColorNumber of RowsLengthLengthLength [x]Length [x]LengthLength
3M (TC)
M3AAA-6020K
0.1 in
2.54 mm
Gold
0.05 "
1.27 mm
Socket to Socket
Unshielded
IDC
0.76 Ám
30 Áin
60
Multiple
Twisted Pair (Flat)
2
508 mm
1.67 ft
3M (TC)
M3AAA-3036R
0.1 in
2.54 mm
Gold
0.05 "
1.27 mm
Socket to Socket
Unshielded
IDC
0.76 Ám
30 Áin
30
Multiple
Ribbon
2
3 ft
914.4 mm
3M (TC)
M3AAA-2418J
0.1 in
2.54 mm
Gold
0.05 "
1.27 mm
Socket to Socket
Unshielded
IDC
0.76 Ám
30 Áin
24
2
1.5 ft
457.2 mm
3M (TC)
M3AAA-2020K
0.1 in
2.54 mm
Gold
0.05 "
1.27 mm
Socket to Socket
Unshielded
IDC
0.76 Ám
30 Áin
20
Multiple
Twisted Pair (Flat)
2
508 mm
1.67 ft
3M (TC)
M3AAA-6060K
0.1 in
2.54 mm
Gold
0.05 "
1.27 mm
Socket to Socket
Unshielded
IDC
0.76 Ám
30 Áin
60
Multiple
Twisted Pair (Flat)
2
1.52 m
5 '
3M (TC)
M3AAA-3418J
0.1 in
2.54 mm
Gold
0.05 "
1.27 mm
Socket to Socket
Unshielded
IDC
0.76 Ám
30 Áin
34
2
1.5 ft
457.2 mm
3M (TC)
M3AAA-1418J
0.1 in
2.54 mm
Gold
0.05 "
1.27 mm
Socket to Socket
Unshielded
IDC
0.76 Ám
30 Áin
14
2
1.5 ft
457.2 mm
3M (TC)
M3AAA-2640K
0.1 in
2.54 mm
Gold
0.05 "
1.27 mm
Socket to Socket
Unshielded
IDC
0.76 Ám
30 Áin
26
Multiple
Twisted Pair (Flat)
2
3.34 ft
1.02 m
3M (TC)
M3AAA-3006J
0.1 in
2.54 mm
Gold
0.05 "
1.27 mm
Socket to Socket
Unshielded
IDC
0.76 Ám
30 Áin
30
2
152.4 mm
6 "
0.5 '
3M (TC)
M3AAA-5060K
0.1 in
2.54 mm
Gold
0.05 "
1.27 mm
Socket to Socket
Unshielded
IDC
0.76 Ám
30 Áin
50
Multiple
Twisted Pair (Flat)
2
1.52 m
5 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 10.59
10$ 8.13
25$ 7.34
50$ 6.81
100$ 6.33
250$ 5.76
500$ 5.37
1000$ 5.03

Description

General part information

M3AAA Series

34 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
