109-00047

Active

HELLERMANNTYTON

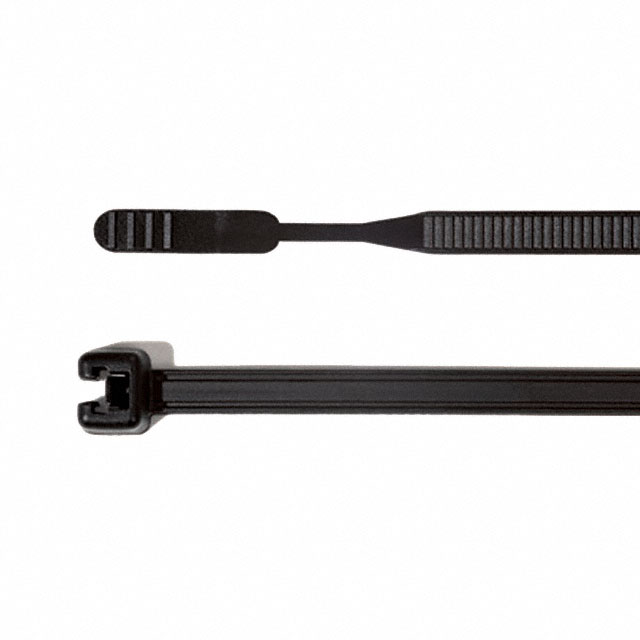

CBL TIE LOCKING BLK 50LBS 8.27"

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109-00047

Bundle Diameter	50 mm
Bundle Diameter	1.97 in
Color	Black
Features	Halogen Free, Pre-Lock
Length - Actual [x]	210 mm
Length - Actual [x]	0.689 ft
Length - Actual [x]	8.27 in
Length - Approximate	8.25 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	22.68 kg
Tensile Strength	50 lbs
Width [x]	4.7 mm
Width [x]	0.185 in
Wire/Cable Tie Type	Standard, Locking

109-00 Series

Part	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Material	Tensile Strength	Tensile Strength	Wire/Cable Tie Type	Features	Width [x]	Width [x]	Color	Mounting Type	Length - Approximate [x]	Bundle Diameter	Bundle Diameter	Length - Approximate	Length - Actual	Length - Actual	Length - Actual
HELLERMANNTYTON 109-00010	160 mm	0.525 '	6.3 "	1.5 in	38.1 mm	Polyamide (PA66) Nylon 6/6	13.61 kg	30 lbs	Locking Standard	Halogen Free Pre-Lock	0.142 in	3.61 mm	Natural	Free Hanging (In-Line)	6.25 in
HELLERMANNTYTON 109-00134	210 mm	0.689 ft	8.27 in			Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	Locking Standard		0.185 in	4.7 mm	Natural	Free Hanging (In-Line)		50 mm	1.97 in	8.25 in
HELLERMANNTYTON 109-00047	210 mm	0.689 ft	8.27 in			Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	Locking Standard	Halogen Free Pre-Lock	0.185 in	4.7 mm	Black	Free Hanging (In-Line)		50 mm	1.97 in	8.25 in
HELLERMANNTYTON 109-00055	420 mm	1.378 ft		4.33 "	110 mm	Polyamide (PA66) Nylon 6/6	54.43 kg	120 lbs	Locking Standard	Halogen Free Pre-Lock	0.303 in	7.7 mm	Black	Free Hanging (In-Line)				16.5 in
HELLERMANNTYTON 109-00049	290 mm	0.951 ft	11.42 "	2.95 "	75 mm	Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	Locking Standard	Halogen Free Pre-Lock	0.185 in	4.7 mm	Black	Free Hanging (In-Line)				11.5 in
HELLERMANNTYTON 109-00115	520 mm	1.706 '				Polyamide (PA66) Nylon 6/6	54.43 kg	120 lbs	Locking Standard	Heat Stabilized	0.303 in	7.7 mm	Black	Free Hanging (In-Line)		130 mm	5.12 "	20.5 in
HELLERMANNTYTON 109-00123	195 mm	0.64 '	7.68 "			Polyamide (PA66) Nylon 6/6	8.16 kg	18 lbs	Locking Standard	Heat Stabilized	0.102 in	2.6 mm	Natural	Free Hanging (In-Line)		50 mm	1.97 in	7.75 in
HELLERMANNTYTON 109-00053				2.76 in	70 mm	Polyamide (PA66) Nylon 6/6	54.43 kg	120 lbs	Locking Standard	Halogen Free Pre-Lock	0.303 in	7.7 mm	Black	Free Hanging (In-Line)				11.75 in	11.81 "	300 mm	0.984 ft
HELLERMANNTYTON 109-00094	195 mm	0.64 '	7.68 "			Polyamide (PA66) Nylon 6/6	8.16 kg	18 lbs	Locking Standard	Halogen Free Pre-Lock	0.102 in	2.6 mm	Black	Free Hanging (In-Line)		50 mm	1.97 in	7.75 in
HELLERMANNTYTON 109-00105	210 mm	0.689 ft	8.27 in			Polyamide (PA66) Nylon 6/6	22.68 kg	50 lbs	Locking Standard	Halogen Free Pre-Lock	0.185 in	4.7 mm	Black	Free Hanging (In-Line)		50 mm	1.97 in	8.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 0.51
