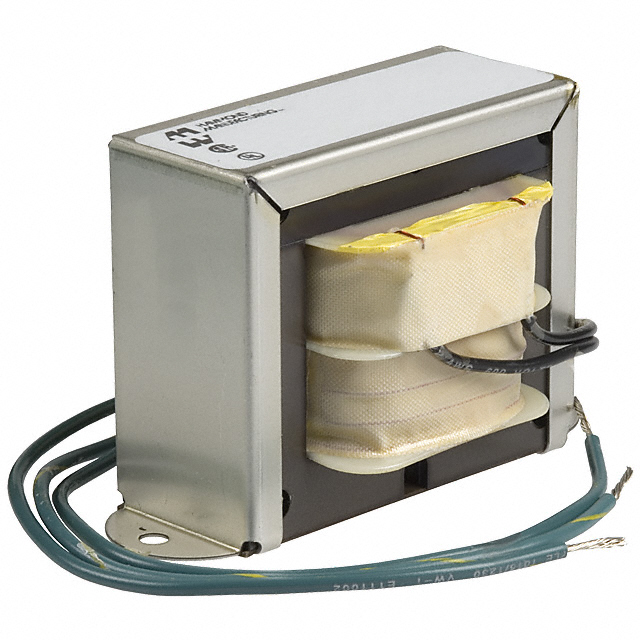

166F12C

Active

Hammond Manufacturing

PWR XFMR LAMINATED 4.2VA CHAS MT

Search across all available documentation for this part.

Active

Hammond Manufacturing

PWR XFMR LAMINATED 4.2VA CHAS MT

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Voltage - Primary	Height - Seated (Max) [Max] [z]	Power - Max [Max]	Secondary Winding(s)	Current - Output (Max) [Max]	Voltage - Secondary (Full Load)	Primary Winding(s)	Termination Style	Type	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Mounting Type
Hammond Manufacturing 166F12C	2000 Vrms	115 V	35.05 mm	4.2 VA	Single	350 mA	12 V	Single	Wire Leads	Laminated Core	0.4 lb	181.44 g	35.05 mm	60.45 mm	Chassis Mount
Hammond Manufacturing 166F12B	2000 Vrms	115 V	35.05 mm	3.6 VA	Single	300 mA	12 V	Single	Wire Leads	Laminated Core	0.4 lb	181.44 g	35.05 mm	60.45 mm	Chassis Mount
Hammond Manufacturing 166F12D	2000 Vrms		35.05 mm	4.2 VA	Single	350 mA	12 V	Single	Wire Leads	Laminated Core	0.4 lb	181.44 g	35.05 mm	60.45 mm	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PWR XFMR LAMINATED 4.2VA CHAS MT
