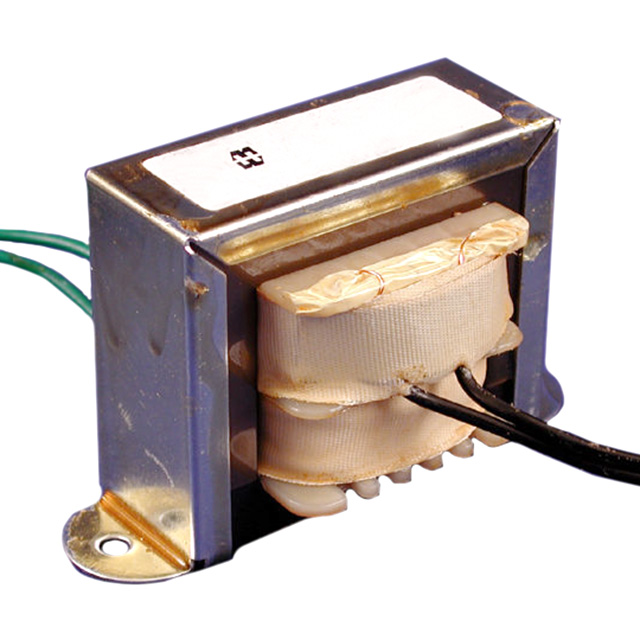

166F12D
ActiveHammond Manufacturing
PWR XFMR LAMINATED 4.2VA CHAS MT
Deep-Dive with AI
Search across all available documentation for this part.
166F12D
ActiveHammond Manufacturing
PWR XFMR LAMINATED 4.2VA CHAS MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 166F12D |
|---|---|
| Center Tap | True |
| Current - Output (Max) [Max] | 350 mA |
| Height - Seated (Max) [Max] [z] | 35.05 mm |
| Mounting Type | Chassis Mount |
| Power - Max [Max] | 4.2 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension [x] | 60.45 mm |
| Size / Dimension [y] | 35.05 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 2000 Vrms |
| Voltage - Secondary (Full Load) | 12 V |
| Weight | 0.4 lb |
| Weight | 181.44 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.13 | |
| 10 | $ 15.34 | |||
| 25 | $ 14.14 | |||
| 50 | $ 13.66 | |||
| 100 | $ 13.42 | |||
| 250 | $ 12.94 | |||
| 500 | $ 12.46 | |||
Description
General part information
166F12 Series
PWR XFMR LAMINATED 4.2VA CHAS MT
Documents
Technical documentation and resources
No documents available
