DE09-PD-SL

Active

Adam Tech

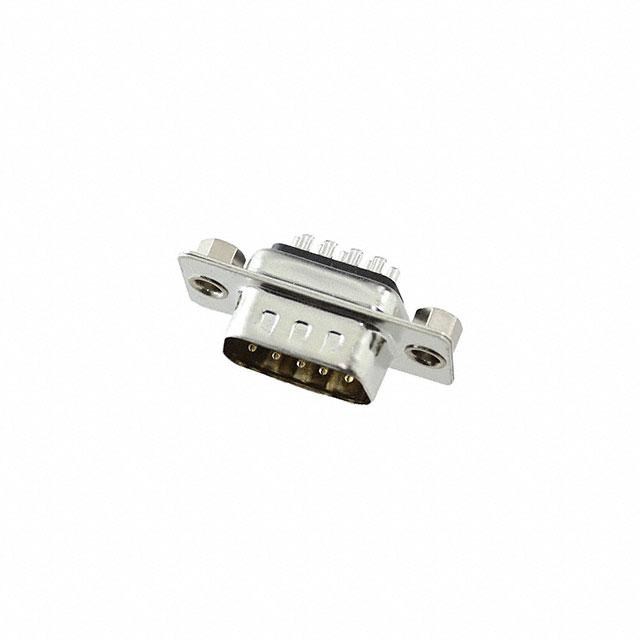

CONN D-SUB PLUG 9POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

DE09-PD-SL

Active

Adam Tech

CONN D-SUB PLUG 9POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DE09-PD-SL

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	250 VAC

DE09 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Voltage Rating	Contact Finish	Connector Type	Termination	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Dielectric Material	Flange Feature	Features	Color	Current Rating (Amps)	Contact Finish Thickness	Connector Style	Material Flammability Rating	Number of Positions	Shell Material, Finish	Backset Spacing	Backset Spacing	Contact Form	Note	Contact Type
Adam Tech DE09-PA-M2	DE E	1	Through Hole	250 VDC	Gold	Male Pins Plug	Solder	Phosphor Bronze	125 °C	-65 ░C	2	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	Grounding Indents	Black	5 A	Flash	D-Sub	UL94 V-0	9
Adam Tech DE09-PA-M1	DE E	1	Through Hole	250 VAC	Gold	Male Pins Plug	Solder	Copper Alloy	125 °C	-65 ░C	2	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Grounding Indents	Black		Flash	D-Sub	UL94 V-0	9	Steel
Adam Tech DE09-SL-25	DE E	1	Through Hole Right Angle	250 VAC	Gold	Receptacle Female Sockets	Solder	Copper Alloy	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Female Screwlock (4-40) Mating Side		Black	3 A		D-Sub	UL94 V-0	9		0.319 in	8.1 mm	Stamped
Adam Tech DE09-PD-SL	DE E	1	Free Hanging (In-Line)	250 VAC	Gold	Male Pins Plug		Copper Alloy	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Cable Side	Grounding Indents	Black	3 A	Flash	D-Sub	UL94 V-0	9				Stamped
Adam Tech DE09-SD-MC	DE E	1	Free Hanging (In-Line)	250 VAC	Gold	Receptacle Female Sockets		Copper Alloy			2	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)		Black	5 A		D-Sub	UL94 V-0	9
Adam Tech DE09-SN-25	DE E	1	Through Hole Right Angle	250 VAC	Gold	Receptacle Female Sockets	Solder	Phosphor Bronze	125 °C	-65 ░C	2	Polybutylene Terephthalate (PBT) Glass Filled	Female Screwlock (4-40) Mating Side		Black	5 A	Flash	D-Sub	UL94 V-0	9		0.197 in	5 mm
Adam Tech DE09-SL-24	DE E	1	Through Hole Right Angle	250 VAC	Gold	Receptacle Female Sockets	Solder	Copper Alloy	85 °C	-20 C	2	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)		Black	3 A		D-Sub	UL94 V-0	9		0.319 in	8.1 mm	Stamped
Adam Tech DE09-SE-1	DE E	1	Through Hole	250 VAC	Gold	Receptacle Female Sockets	Solder	Phosphor Bronze	125 °C	-65 ░C	2	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)		Black	5 A	Flash	D-Sub	UL94 V-0	9
Adam Tech DE09-SR	DE E	1	Free Hanging (In-Line)			Receptacle Female Sockets			105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT)	Housing/Shell (Unthreaded)		Black			D-Sub		9					Contacts Not Included	Signal
Adam Tech DE09-SD-SL	DE E	1	Free Hanging (In-Line)	250 VAC	Gold	Receptacle Female Sockets		Copper Alloy	105 ░C	-55 °C	2	Polybutylene Terephthalate (PBT) Glass Filled	Cable Side		Black	3 A	Flash	D-Sub	UL94 V-0	9				Stamped

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.03
		10	$ 0.79
		25	$ 0.71
		40	$ 0.67
		80	$ 0.62
		230	$ 0.55
		440	$ 0.51
		945	$ 0.47
		2400	$ 0.43
