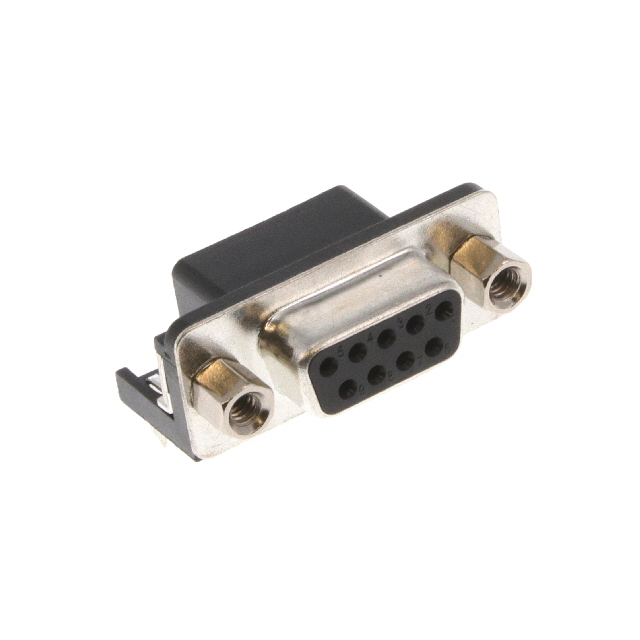

DE09-SL-25
ActiveAdam Tech
CONN D-SUB RCPT 9POS R/A SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DE09-SL-25 |
|---|---|
| Backset Spacing | 0.319 in |
| Backset Spacing | 8.1 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.01 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.80 | |||
| 40 | $ 0.77 | |||
| 90 | $ 0.73 | |||
| 270 | $ 0.68 | |||
| 450 | $ 0.65 | |||
| 990 | $ 0.62 | |||
| 2430 | $ 0.58 | |||
Description
General part information
DE09 Series
9 Position D-Sub Receptacle, Female Sockets Connector
