W25N02JWZEIF

Active

Winbond Electronics

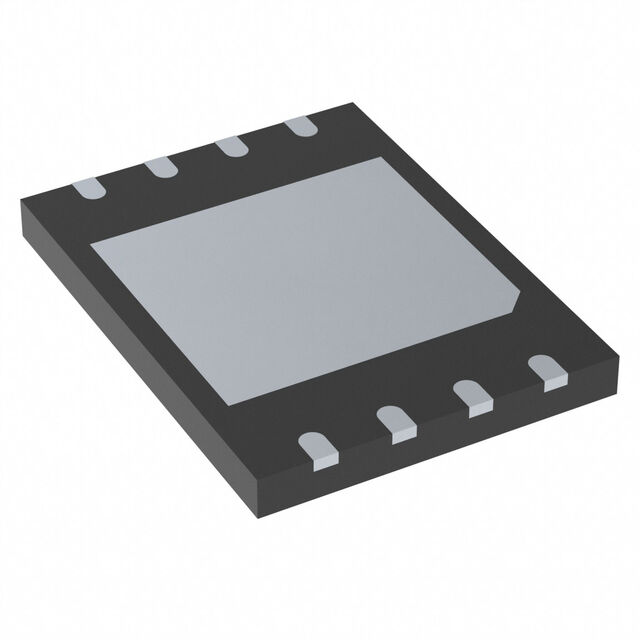

IC FLASH 2GBIT SPI/QUAD 8WSON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W25N02JWZEIF

Active

Winbond Electronics

IC FLASH 2GBIT SPI/QUAD 8WSON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	W25N02JWZEIF

Clock Frequency	166 MHz
Memory Format	FLASH
Memory Interface	DTR, Quad I/O, SPI
Memory Organization	256M x 8
Memory Size	2 Gbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-WSON (8x6)
Technology	FLASH - NAND (SLC)
Voltage - Supply [Max]	1.95 V
Voltage - Supply [Min]	1.7 V
Write Cycle Time - Word, Page	700 µs

W25N02 Series

Part	Package / Case	Supplier Device Package	Memory Interface	Memory Format	Write Cycle Time - Word, Page	Voltage - Supply [Max]	Voltage - Supply [Min]	Technology	Memory Organization	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Clock Frequency	Memory Type	Mounting Type	Access Time	Package / Case [x]	Package / Case [y]
Winbond Electronics W25N02JWZEIF	8-WDFN Exposed Pad	8-WSON (8x6)	DTR Quad I/O SPI	FLASH	700 µs	1.95 V	1.7 V	FLASH - NAND (SLC)	256M x 8	85 °C	-40 °C	2 Gbit	166 MHz	Non-Volatile	Surface Mount
Winbond Electronics W25N02KVTCIU	24-TBGA	24-TFBGA (8x6)	SPI - Quad I/O	FLASH	700 µs	3.6 V	2.7 V	FLASH - NAND (SLC)	256M x 8	85 °C	-40 °C	2 Gbit	104 MHz	Non-Volatile	Surface Mount	7 ns
Winbond Electronics W25N02KVTBIU TR	24-TBGA	24-TFBGA (8x6)	SPI - Quad I/O	FLASH	700 µs	3.6 V	2.7 V	FLASH - NAND (SLC)	256M x 8	85 °C	-40 °C	2 Gbit	104 MHz	Non-Volatile	Surface Mount	7 ns
Winbond Electronics W25N02KVTCIU TR	24-TBGA	24-TFBGA (8x6)	SPI - Quad I/O	FLASH	700 µs	3.6 V	2.7 V	FLASH - NAND (SLC)	256M x 8	85 °C	-40 °C	2 Gbit	104 MHz	Non-Volatile	Surface Mount	7 ns
Winbond Electronics W25N02KVTBIR TR	24-TBGA	24-TFBGA (8x6)	SPI - Quad I/O	FLASH	700 µs	3.6 V	2.7 V	FLASH - NAND (SLC)	256M x 8	85 °C	-40 °C	2 Gbit	104 MHz	Non-Volatile	Surface Mount	7 ns
Winbond Electronics W25N02KVZEIR	8-WDFN Exposed Pad	8-WSON (8x6)	SPI - Quad I/O	FLASH	700 µs	3.6 V	2.7 V	FLASH - NAND (SLC)	256M x 8	85 °C	-40 °C	2 Gbit	104 MHz	Non-Volatile	Surface Mount	7 ns
Winbond Electronics W25N02KVZEIU	8-WDFN Exposed Pad	8-WSON (8x6)	SPI - Quad I/O	FLASH	700 µs	3.6 V	2.7 V	FLASH - NAND (SLC)	256M x 8	85 °C	-40 °C	2 Gbit	104 MHz	Non-Volatile	Surface Mount	7 ns
Winbond Electronics W25N02KVTBIR	24-TBGA	24-TFBGA (8x6)	SPI - Quad I/O	FLASH	700 µs	3.6 V	2.7 V	FLASH - NAND (SLC)	256M x 8	85 °C	-40 °C	2 Gbit	104 MHz	Non-Volatile	Surface Mount	7 ns
Winbond Electronics W25N02KVTCIR TR	24-TBGA	24-TFBGA (8x6)	SPI - Quad I/O	FLASH	700 µs	3.6 V	2.7 V	FLASH - NAND (SLC)	256M x 8	85 °C	-40 °C	2 Gbit	104 MHz	Non-Volatile	Surface Mount	7 ns
Winbond Electronics W25N02KVSFIR TR	16-SOIC	16-SOIC	SPI - Quad I/O	FLASH	700 µs	3.6 V	2.7 V	FLASH - NAND (SLC)	256M x 8	85 °C	-40 °C	2 Gbit	104 MHz	Non-Volatile	Surface Mount	7 ns	0.295 in	7.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.30
		10	$ 5.75
		25	$ 5.64
		63	$ 5.60
		126	$ 5.02
		252	$ 5.00
		504	$ 4.69
		1008	$ 4.49

Description

General part information

W25N02 Series

FLASH - NAND (SLC) Memory IC 2Gbit SPI - Quad I/O, DTR 166 MHz 8-WSON (8x6)
