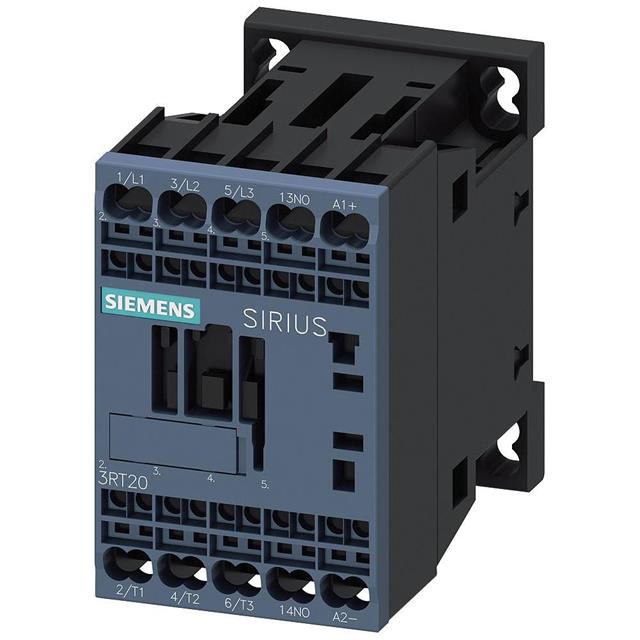

3RT20182BG41

Active

Siemens

CONTACTOR S00 16A 125VDC 1NO SPR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SIRIUS Contactor Selection Guide.pdy +2

3RT20182BG41

Active

Siemens

CONTACTOR S00 16A 125VDC 1NO SPR

Deep-Dive with AI

DocumentsDatasheet SIRIUS Contactor Selection Guide.pdy +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT20182BG41

Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Termination Style	Spring Terminal

3RT2018 Series

...

Part	Must Operate Voltage	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Features	Coil Power	Contact Rating (Current)	Release Time	Contact Form	Mounting Type	Termination Style	Operate Time
Siemens 3RT20184AN62	187 VAC	690 VAC	-25 °C	60 °C	220 VAC/DC	Auxiliary Contacts	43 VA	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	35 ms
Siemens 3RT20181AG61	93.5 VAC	690 VAC	-25 °C	60 °C	110 VAC/DC	Auxiliary Contacts	43 VA	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	35 ms
Siemens 3RT20181UB41	19.2 VDC	690 VAC	-25 °C	60 °C	24 VDC	Auxiliary Contacts	4 W	10 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	100 ms
Siemens 3RT20184AB01		690 VAC	-25 °C	60 °C	24 VAC	Auxiliary Contacts	33 VA	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	35 ms
Siemens 3RT20182BM42	176 VDC	690 VAC	-25 °C	60 °C	220 VDC	Auxiliary Contacts	4 W	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Spring Terminal	100 ms
Siemens 3RT20181AG62	93.5 VAC	690 VAC	-25 °C	60 °C	110 VAC/DC	Auxiliary Contacts	43 VA	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	35 ms
Siemens 3RT20181BF42	88 VDC	690 VAC	-25 °C	60 °C	110 VDC	Auxiliary Contacts	4 W	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	100 ms
Siemens 3RT20182BG41			-25 °C	60 °C								Spring Terminal
Siemens 3RT20184BB42	19.2 VDC	690 VAC	-25 °C	60 °C	24 VDC	Auxiliary Contacts	4 W	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	100 ms
Siemens 3RT20184AG61	93.5 VAC	690 VAC	-25 °C	60 °C	110 VAC/DC	Auxiliary Contacts	43 VA	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	35 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 185.42

3RT20182BG41

Deep-Dive with AI

3RT20182BG41

Deep-Dive with AI

Technical Specifications

3RT2018 Series

Pricing

Description

3RT2018 Series

Documents

Datasheet

SIRIUS Contactor Selection Guide.pdy

SIRIUS Contactor Fail Safe Brochure

SIRIUS Contactor Simply Switch Safely WhitePaper

3RT2018 Series
