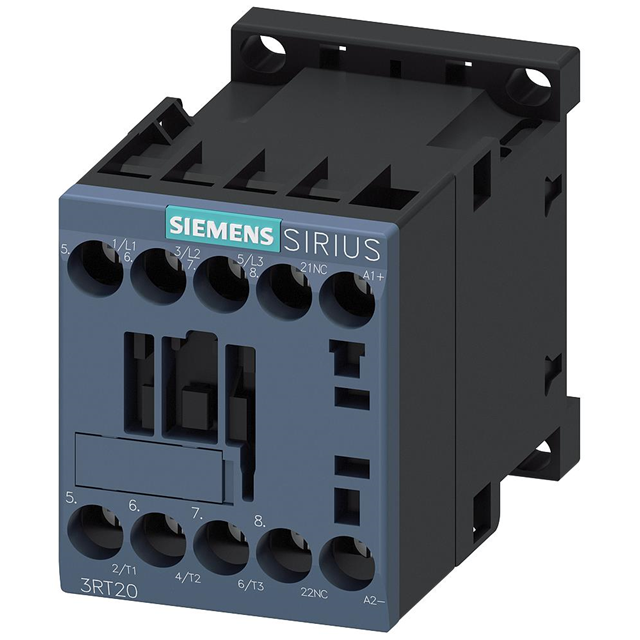

3RT20181BF42

Active

Siemens

CONTACTOR S00 16A 110VDC 1NC SCR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS Contactor Simply Switch Safely WhitePaper Datasheet +2

3RT20181BF42

Active

Siemens

CONTACTOR S00 16A 110VDC 1NC SCR

Deep-Dive with AI

DocumentsSIRIUS Contactor Simply Switch Safely WhitePaper Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT20181BF42

Coil Power	4 W
Coil Voltage	110 VDC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	16 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	88 VDC
Operate Time	100 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Release Time	13 ms
Switching Voltage	690 VAC
Termination Style	Screw Terminal

3RT2018 Series

...

Part	Must Operate Voltage	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Features	Coil Power	Contact Rating (Current)	Release Time	Contact Form	Mounting Type	Termination Style	Operate Time
Siemens 3RT20184AN62	187 VAC	690 VAC	-25 °C	60 °C	220 VAC/DC	Auxiliary Contacts	43 VA	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	35 ms
Siemens 3RT20181AG61	93.5 VAC	690 VAC	-25 °C	60 °C	110 VAC/DC	Auxiliary Contacts	43 VA	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	35 ms
Siemens 3RT20181UB41	19.2 VDC	690 VAC	-25 °C	60 °C	24 VDC	Auxiliary Contacts	4 W	10 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	100 ms
Siemens 3RT20184AB01		690 VAC	-25 °C	60 °C	24 VAC	Auxiliary Contacts	33 VA	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	35 ms
Siemens 3RT20182BM42	176 VDC	690 VAC	-25 °C	60 °C	220 VDC	Auxiliary Contacts	4 W	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Spring Terminal	100 ms
Siemens 3RT20181AG62	93.5 VAC	690 VAC	-25 °C	60 °C	110 VAC/DC	Auxiliary Contacts	43 VA	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	35 ms
Siemens 3RT20181BF42	88 VDC	690 VAC	-25 °C	60 °C	110 VDC	Auxiliary Contacts	4 W	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	100 ms
Siemens 3RT20182BG41			-25 °C	60 °C								Spring Terminal
Siemens 3RT20184BB42	19.2 VDC	690 VAC	-25 °C	60 °C	24 VDC	Auxiliary Contacts	4 W	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	100 ms
Siemens 3RT20184AG61	93.5 VAC	690 VAC	-25 °C	60 °C	110 VAC/DC	Auxiliary Contacts	43 VA	16 A	13 ms	3PST-NO (3 Form A)	Chassis Mount DIN Rail	Screw Terminal	35 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 189.75
