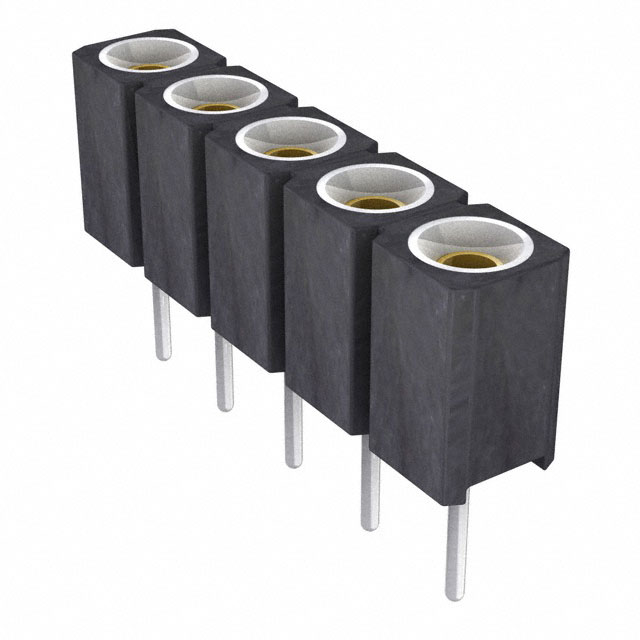

310-87-105-01-640101

Active

PRECI-DIP SA

CONN SOCKET 5POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

310-87-105-01-640101

Active

PRECI-DIP SA

CONN SOCKET 5POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	310-87-105-01-640101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

310-87 Series

...

Part	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Post	Termination	Fastening Type	Insulation Material	Contact Finish - Mating	Contact Type	Mounting Type	Number of Positions	Material Flammability Rating	Contact Shape	Insulation Color	Connector Type	Current Rating (Amps)	Number of Positions Loaded	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Features	Contact Length - Post [x]	Contact Length - Post [x]
PRECI-DIP SA 310-87-102-41-205191	0.1 in	2.54 mm	0.1 in	2.54 mm	Flash	Beryllium Copper	Tin	Solder	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Female Socket	Surface Mount Right Angle	2	UL94 V-0	Circular	Black	Socket	3 A	All	1	-55 °C	125 °C
PRECI-DIP SA 310-87-161-01-666101			0.1 in	2.54 mm	Flash	Beryllium Copper	Tin	Press-Fit Solder	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Female Socket	Through Hole	61	UL94 V-0	Circular	Black	Socket	3 A	All	1	-55 °C	125 °C	0.165 in	4.2 mm	0.122 "	3.1 mm
PRECI-DIP SA 310-87-125-01-754101			0.1 in	2.54 mm	Flash	Beryllium Copper	Tin	Press-Fit Solder	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Female Socket	Through Hole		UL94 V-0	Circular	Black	Socket	3 A	All	1	-55 °C	125 °C	0.165 in	4.2 mm	0.122 "	3.1 mm
PRECI-DIP SA 310-87-107-01-666101			0.1 in	2.54 mm	Flash	Beryllium Copper	Tin	Press-Fit Solder	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Female Socket	Through Hole	7	UL94 V-0	Circular	Black	Socket	3 A	All	1	-55 °C	125 °C	0.165 in	4.2 mm	0.122 "	3.1 mm
PRECI-DIP SA 310-87-117-41-105191	0.22 in	5.6 mm	0.1 in	2.54 mm	Flash	Beryllium Copper	Tin	Solder	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Female Socket	Surface Mount		UL94 V-0	Circular	Black	Socket	3 A	All	1	-55 °C	125 °C					Pick and Place
PRECI-DIP SA 310-87-105-01-640101			0.1 in	2.54 mm	Flash	Beryllium Copper	Tin	Solder	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Female Socket	Through Hole		UL94 V-0	Circular	Black	Socket	3 A	All	1	-55 °C	125 °C	0.165 in	4.2 mm				3.18 mm	0.125 in
PRECI-DIP SA 310-87-110-41-205191	0.1 in	2.54 mm	0.1 in	2.54 mm	Flash	Beryllium Copper	Tin	Solder	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Female Socket	Surface Mount Right Angle	10	UL94 V-0	Circular	Black	Socket	3 A	All	1	-55 °C	125 °C
PRECI-DIP SA 310-87-114-41-205101	0.1 in	2.54 mm	0.1 in	2.54 mm	Flash	Beryllium Copper	Tin	Solder	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Female Socket	Surface Mount Right Angle	14	UL94 V-0	Circular	Black	Socket	3 A	All	1	-55 °C	125 °C
PRECI-DIP SA 310-87-156-41-205101	0.1 in	2.54 mm	0.1 in	2.54 mm	Flash	Beryllium Copper	Tin	Solder	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Female Socket	Surface Mount Right Angle	56	UL94 V-0	Circular	Black	Socket	3 A	All	1	-55 °C	125 °C
PRECI-DIP SA 310-87-132-01-640101			0.1 in	2.54 mm	Flash	Beryllium Copper	Tin	Solder	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Female Socket	Through Hole		UL94 V-0	Circular	Black	Socket	3 A	All	1	-55 °C	125 °C	0.165 in	4.2 mm				3.18 mm	0.125 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2200	$ 0.38

Description

General part information

310-87 Series

5 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
