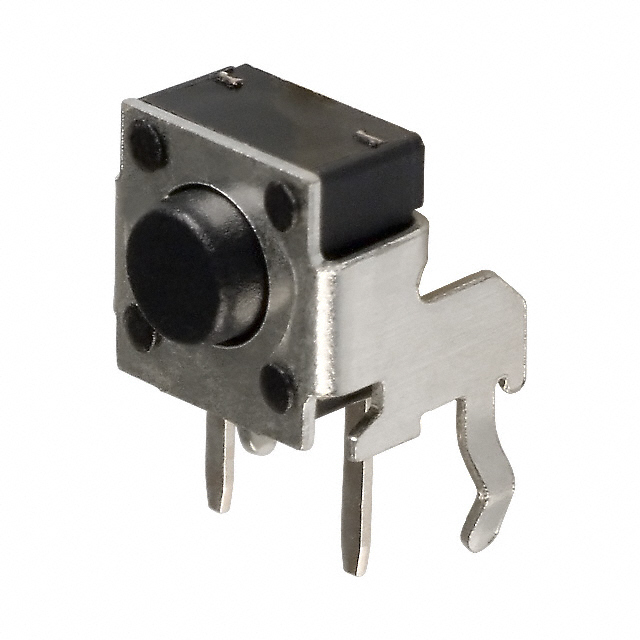

TL1105VF160Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TL1105VF160Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL1105VF160Q

Actuator Length, Right Angle	3.85 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Side Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	7.1 mm
Outline [y]	6.55 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

TL1105 Series

...

Part	Actuator Height off PCB, Vertical	Circuit	Mounting Type	Mechanical Life	Termination Style	Contact Rating @ Voltage	Illumination	Switch Function	Outline [y]	Outline [x]	Actuator Orientation	Switch Travel	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Operating Force	Actuator Length, Right Angle	Actuator Length, Right Angle [x]	Actuator Height off PCB, Vertical [z]
E-Switch TL1105KF100Q	13.5 mm	SPST-NO	Through Hole	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6 mm	6 mm	Top Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	100 gf
E-Switch TL1105SF160Q		SPST-NO	Through Hole Right Angle	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6.55 mm	7.1 mm	Side Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard		8.35 mm
E-Switch TL1105XF100Q		SPST-NO	Through Hole Right Angle	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6.55 mm	7.1 mm	Side Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	100 gf		5.85 mm
E-Switch TL1105AF250Q	5 mm	SPST-NO	Through Hole	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6 mm	6 mm	Top Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	0.25 kgf
E-Switch TL1105JAF100Q1RBLK		SPST-NO	Through Hole Right Angle	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6.5 mm	7.2 mm	Side Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Round Button	100 gf	12.45 mm
E-Switch TL1105DF100Q		SPST-NO	Through Hole	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6 mm	6 mm	Top Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	100 gf			13 mm
E-Switch TL1105DF250Q		SPST-NO	Through Hole	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6 mm	6 mm	Top Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	0.25 kgf			13 mm
E-Switch TL1105LF100Q		SPST-NO	Through Hole	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6 mm	6 mm	Top Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	100 gf			17 mm
E-Switch TL1105VF160Q		SPST-NO	Through Hole Right Angle	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6.55 mm	7.1 mm	Side Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard		3.85 mm
E-Switch TL1105RF160Q		SPST-NO	Through Hole Right Angle	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6.55 mm	7.1 mm	Side Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard			6.15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.44
		10	$ 0.42
		25	$ 0.40
		100	$ 0.34
		250	$ 0.31
		500	$ 0.29
		1000	$ 0.26
		3000	$ 0.25
		5000	$ 0.23

Description

General part information

TL1105 Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
