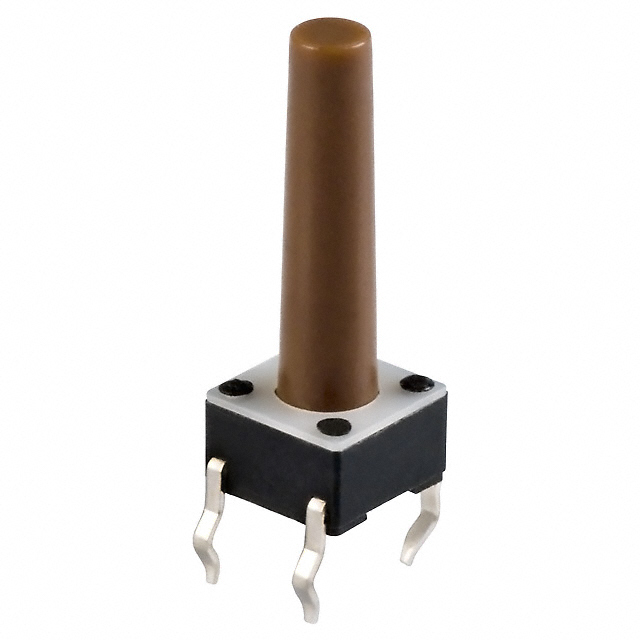

TL1105LF100Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TL1105LF100Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL1105LF100Q

Actuator Height off PCB, Vertical [z]	17 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Force	100 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

TL1105 Series

...

Part	Actuator Height off PCB, Vertical	Circuit	Mounting Type	Mechanical Life	Termination Style	Contact Rating @ Voltage	Illumination	Switch Function	Outline [y]	Outline [x]	Actuator Orientation	Switch Travel	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Operating Force	Actuator Length, Right Angle	Actuator Length, Right Angle [x]	Actuator Height off PCB, Vertical [z]
E-Switch TL1105KF100Q	13.5 mm	SPST-NO	Through Hole	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6 mm	6 mm	Top Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	100 gf
E-Switch TL1105SF160Q		SPST-NO	Through Hole Right Angle	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6.55 mm	7.1 mm	Side Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard		8.35 mm
E-Switch TL1105XF100Q		SPST-NO	Through Hole Right Angle	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6.55 mm	7.1 mm	Side Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	100 gf		5.85 mm
E-Switch TL1105AF250Q	5 mm	SPST-NO	Through Hole	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6 mm	6 mm	Top Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	0.25 kgf
E-Switch TL1105JAF100Q1RBLK		SPST-NO	Through Hole Right Angle	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6.5 mm	7.2 mm	Side Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Round Button	100 gf	12.45 mm
E-Switch TL1105DF100Q		SPST-NO	Through Hole	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6 mm	6 mm	Top Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	100 gf			13 mm
E-Switch TL1105DF250Q		SPST-NO	Through Hole	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6 mm	6 mm	Top Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	0.25 kgf			13 mm
E-Switch TL1105LF100Q		SPST-NO	Through Hole	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6 mm	6 mm	Top Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard	100 gf			17 mm
E-Switch TL1105VF160Q		SPST-NO	Through Hole Right Angle	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6.55 mm	7.1 mm	Side Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard		3.85 mm
E-Switch TL1105RF160Q		SPST-NO	Through Hole Right Angle	100000 Cycles	PC Pin	0.05 A 12 VDC	Non-Illuminated	Off-Mom	6.55 mm	7.1 mm	Side Actuated	0.25 mm	Nylon Polyamide (PA)	-20 C	70 °C	Standard			6.15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.33
		10	$ 0.32
		750	$ 0.22
		1500	$ 0.20
		5250	$ 0.17
		10500	$ 0.16

Description

General part information

TL1105 Series

Tactile Switch SPST-NO Top Actuated Through Hole
