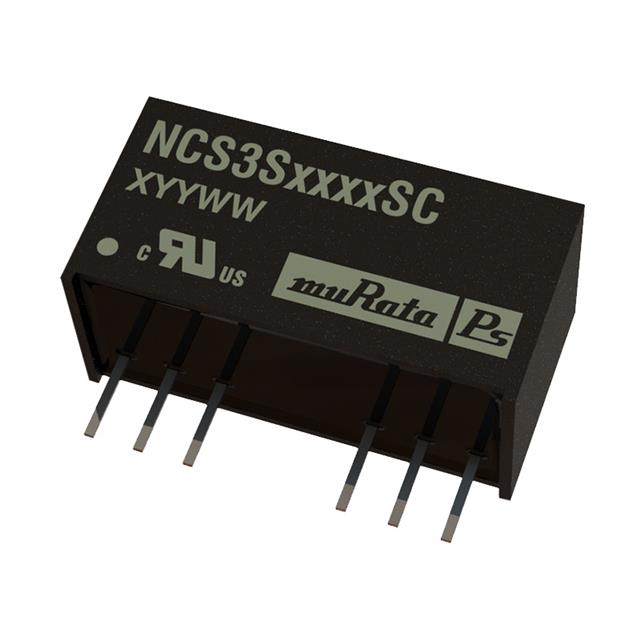

NCS3S1205SC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 3W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 3W

Technical Specifications

Parameters and characteristics for this part

Isolated DC/DC Converters - Through Hole DC/DC TH 3W 48V-3.3V

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Isolation	Mounting Type	Applications	Voltage - Input (Max) [Max]	Power (Watts)	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 1	Type	Efficiency
Murata Power Solutions Inc. NCS3S1205SC	600 mA	85 °C	-40 °C	8-DIP Module 6 Leads	1.5 kV	Through Hole	ITE (Commercial)	36 V	3 W	SCP	11.3 mm	22 mm	0.44 "	9.5 mm	0.37 "	0.86 in	1	9 V	5 V	Isolated Module
Murata Power Solutions Inc. NCS3S4803SC	700 mA	85 °C	-40 °C	8-DIP Module 6 Leads	1.5 kV	Through Hole	ITE (Commercial)	75 V	3 W	SCP	11.3 mm	22 mm	0.44 "	9.5 mm	0.37 "	0.86 in	1	18 V	3.3 V	Isolated Module	74 %
Murata Power Solutions Inc. NCS3S4805SC	600 mA	85 °C	-40 °C	8-DIP Module 6 Leads	1.5 kV	Through Hole	ITE (Commercial)	75 V	3 W	SCP	11.3 mm	22 mm	0.44 "	9.5 mm	0.37 "	0.86 in	1	18 V	5 V	Isolated Module	80 %
Murata Power Solutions Inc. NCS3S4815SC	200 mA	85 °C	-40 °C	8-DIP Module 6 Leads	1.5 kV	Through Hole	ITE (Commercial)	75 V	3 W	SCP	11.3 mm	22 mm	0.44 "	9.5 mm	0.37 "	0.86 in	1	18 V	15 V	Isolated Module	83 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole DC/DC TH 3W 48V-3.3V
