AM2520SURCK09

Active

Kingbright

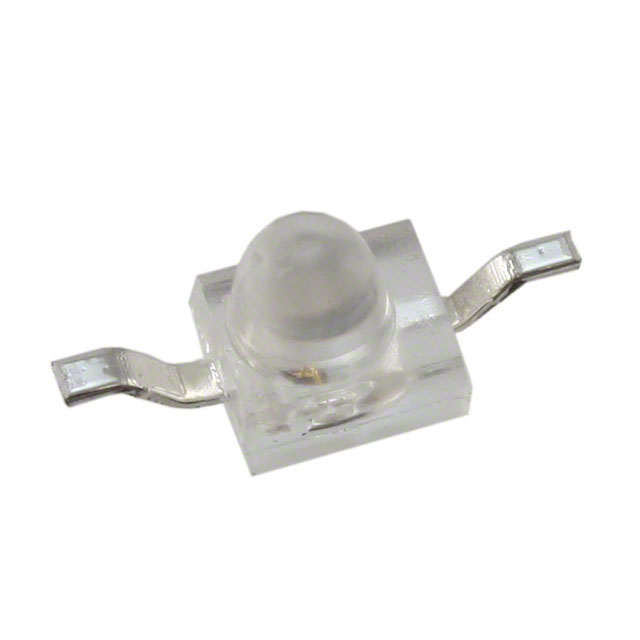

LED RED CLEAR 2SMD BOTTOM ENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM2520SURCK09

Active

Kingbright

LED RED CLEAR 2SMD BOTTOM ENT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM2520SURCK09

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max]	2.9 mm
Lens Color	Colorless
Lens Size [diameter]	1.9 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	1000 mcd
Mounting Type	Surface Mount, Bottom Entry
Package / Case	2-SMD, Bottom Entry, Z-Bend
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Supplier Device Package	2-SMD, Z-Bend
Viewing Angle	20 °
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Dominant	630 nm
Wavelength - Peak	645 nm

AM2520 Series

Part	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Wavelength - Dominant	Supplier Device Package	Lens Size [diameter]	Height (Max) [Max]	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Configuration	Lens Transparency	Package / Case	Current - Test	Viewing Angle [custom]	Lens Style	Mounting Type	Wavelength - Peak	Color	Wavelength	Orientation	Viewing Angle	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Dark (Typ) [Max]	Diode Type	Response Time	Spectral Range [Max] [custom]	Spectral Range [Min] [custom]	Color - Enhanced	Current - DC Forward (If) (Max) [Max]	Type	Radiant Intensity (Ie) Min @ If [Min]
Kingbright AM2520SGD03	2.2 V	10 mcd	568 nm	SMD	1.9 mm	2.9 mm	Green	2 mm	2.5 mm	Standard	Diffused	2-SMD Gull Wing	20 mA	40 °	Round with Domed Top	Surface Mount	565 nm	Green
Kingbright AM2520P3BT03												2-SMD Gull Wing				Surface Mount			940 nm	Top View	20 °	85 °C	-40 °C	100 mW	30 V	100 nA
Kingbright AM2520SURCK09	1.95 V	1000 mcd	630 nm	2-SMD Z-Bend	1.9 mm	2.9 mm	Colorless	2 mm	2.5 mm	Standard	Clear	2-SMD Bottom Entry Z-Bend	20 mA		Round with Domed Top	Surface Mount Bottom Entry	645 nm	Red			20 °
Kingbright AM2520ZGC09	3.3 V		525 nm	SMD	1.9 mm	2.9 mm	Colorless	2 mm	2.5 mm	Standard	Clear	2-SMD Z-Bend	20 mA		Round with Domed Top	Surface Mount Bottom Entry	515 nm	Green			20 °
Kingbright AM2520EC09	2 V	50 mcd	617 nm	SMD	1.9 mm	2.9 mm	Colorless	2 mm	2.5 mm	Standard	Clear	2-SMD Z-Bend	20 mA		Round with Domed Top	Surface Mount Bottom Entry	627 nm	Red			20 °
Kingbright AM2520SECK03	2.1 V	1800 mcd	601 nm	SMD	1.9 mm	2.9 mm	Colorless	2 mm	2.5 mm	Standard	Clear	2-SMD Gull Wing	20 mA		Round with Domed Top	Surface Mount	610 nm				20 °
Kingbright AM2520QBC/D03	3.3 V	900 mcd	465 nm	SMD	1.9 mm	2.9 mm	Colorless	2 mm	2.5 mm	Standard	Clear	2-SMD Gull Wing	20 mA		Round with Domed Top	Surface Mount	460 nm	Blue			20 °
Kingbright AM2520PD1BT09												2-SMD Z-Bend				Surface Mount			940 nm		20 °	85 °C	-40 °C				170 V	10 nA	PIN	6 ns	1070 nm	670 nm	Infrared (NIR)
Kingbright AM2520F3C03-P22												2-SMD Gull Wing				Surface Mount			940 nm	Top View	20 °	85 °C	-40 °C											50 mA	Infrared (IR)	8 mW/sr
Kingbright AM2520SRC09	1.85 V	600 mcd	640 nm	SMD	1.9 mm	2.9 mm	Colorless	2 mm	2.5 mm	Standard	Clear	2-SMD Z-Bend	20 mA		Round with Domed Top	Surface Mount Bottom Entry	655 nm	Red			20 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.52
		10	$ 0.34
		100	$ 0.23
	Digi-Reel®	1	$ 0.52
		10	$ 0.34
		100	$ 0.23
	Tape & Reel (TR)	1000	$ 0.17
		2000	$ 0.16
		5000	$ 0.15
		10000	$ 0.14
		25000	$ 0.14
		50000	$ 0.13

Description

General part information

AM2520 Series

Red 630nm LED Indication - Discrete 1.95V 2-SMD, Z-Bend, Bottom Entry
