0038006293

Active

Molex

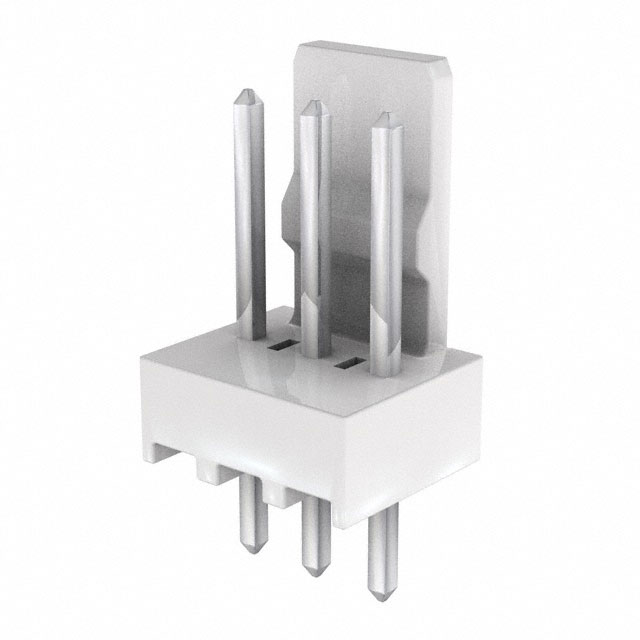

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0038006293

Active

Molex

CONN HEADER VERT 3POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0038006293

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Mating	7.15 mm
Contact Length - Mating	0.281 in
Contact Length - Post	10 mm
Contact Length - Post	0.394 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	11.7 mm
Insulation Height	0.461 "
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.8 in
Overall Contact Length	20.32 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

003800 Series

Part	Contact Material	Termination	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating	Mounting Type	Applications	Material Flammability Rating	Contact Finish - Post	Number of Rows	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Type	Fastening Type	Insulation Height	Insulation Height	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Shape	Connector Type	Overall Contact Length	Overall Contact Length	Shrouding	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)
Molex 0038007487	Brass	Solder	4	Polyamide (PA66) Nylon 6/6	11.43 mm	0.45 in	Through Hole	General Purpose Industrial Telecommunications	UL94 V-2	Tin	1	4.45 mm	0.175 in	5.08 mm	0.2 in	Male Pin	Push-Pull	0.375 in	9.53 mm	Board to Board Cable	2.54 çm	100 çin	Natural	Circular	Header	0.75 in	19.05 mm	Shrouded - 1 Wall
Molex 0038006296	Brass	Solder		Nylon Polyamide (PA)	7.15 mm	0.281 in	Through Hole	Automotive General Purpose Medical Telecommunications	UL94 V-0	Tin	1	10 mm	0.394 in	2.54 mm	0.1 in	Male Pin	Friction Lock	0.461 "	11.7 mm	Board to Cable/Wire	1.52 Ám	60 Áin	Natural	Square	Header	0.8 in	20.32 mm	Shrouded - 1 Wall	All	6	60 µin	1.52 µm
Molex 0038001333	Phosphor Bronze	Solder		Nylon Polyamide (PA)			Board Edge Right Angle Through Hole	Automotive General Purpose Medical Telecommunications	UL94 V-0	Tin	1	3.35 mm	0.132 in	2.54 mm	0.1 in	Non-Gendered	Push-Pull	0.185 in	4.7 mm	Board to Board Cable	2.54 çm	100 çin	White	Square	Receptacle				All		100 µin	2.54 µm	Board Hooks	4 A	250 VAC	-40 °C	105 ░C
Molex 0038007097	Brass	Solder		Polyamide (PA66) Nylon 6/6	11.43 mm	0.45 in	Through Hole		UL94 V-2	Tin	1	4.45 mm	0.175 in	5.08 mm	0.2 in	Male Pin	Push-Pull	0.375 in	9.53 mm	Board to Cable/Wire	2.54 çm	100 çin	Natural	Circular	Header	0.75 in	19.05 mm	Shrouded - 1 Wall		8	100 µin	2.54 µm			600 VAC	-40 °C	80 C	Varies by Wire Gauge
Molex 0038001397	Phosphor Bronze	Solder		Nylon Polyamide (PA)			Through Hole	Automotive General Purpose Medical Telecommunications	UL94 V-0	Tin	1	3.6 mm	0.142 in	2.54 mm	0.1 in	Non-Gendered	Push-Pull	0.311 in	7.9 mm	Board to Board Cable	2.54 çm	100 çin	White	Square	Receptacle Bottom Entry				All	7	100 µin	2.54 µm	Board Hooks	4 A	250 VAC	-40 °C	105 ░C
Molex 0038006293	Brass	Solder		Nylon Polyamide (PA)	7.15 mm	0.281 in	Through Hole	Automotive General Purpose Medical Telecommunications	UL94 V-0	Tin	1	10 mm	0.394 in	2.54 mm	0.1 in	Male Pin	Friction Lock	0.461 "	11.7 mm	Board to Cable/Wire	1.52 Ám	60 Áin	Natural	Square	Header	0.8 in	20.32 mm	Shrouded - 1 Wall	All		60 µin	1.52 µm
Molex 0038007262	Brass	Solder		Nylon Polyamide (PA)			Through Hole		UL94 V-0	Tin	1			3.96 mm	0.156 in	Male Pin	Push-Pull	0.461 "	11.7 mm	Board to Cable/Wire	1.52 Ám	60 Áin	Natural	Square	Header			Shrouded - 1 Wall	All		60 µin	1.52 µm
Molex 0038001208	Brass	Solder		Polyamide (PA66) Nylon 6/6	11.43 mm	0.45 in	Through Hole	General Purpose Industrial Telecommunications	UL94 V-2	Tin	1	4.45 mm	0.175 in	5.08 mm	0.2 in	Male Pin	Push-Pull	0.375 in	9.53 mm	Board to Board Cable	2.54 çm	100 çin	Natural	Circular	Header	0.75 in	19.05 mm	Shrouded - 1 Wall		7
Molex 0038007595
Molex 0038001396	Phosphor Bronze	Solder		Nylon Polyamide (PA)			Through Hole	Automotive General Purpose Medical Telecommunications	UL94 V-0	Tin	1	3.6 mm	0.142 in	2.54 mm	0.1 in	Non-Gendered	Push-Pull	0.311 in	7.9 mm	Board to Board Cable	2.54 çm	100 çin	White	Square	Receptacle Bottom Entry				All	6	100 µin	2.54 µm	Board Hooks	4 A	250 VAC	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.40
		10	$ 0.34
		100	$ 0.26
		2000	$ 0.22

Description

General part information

003800 Series

Connector Header Through Hole 3 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
