0038001333

Active

Molex

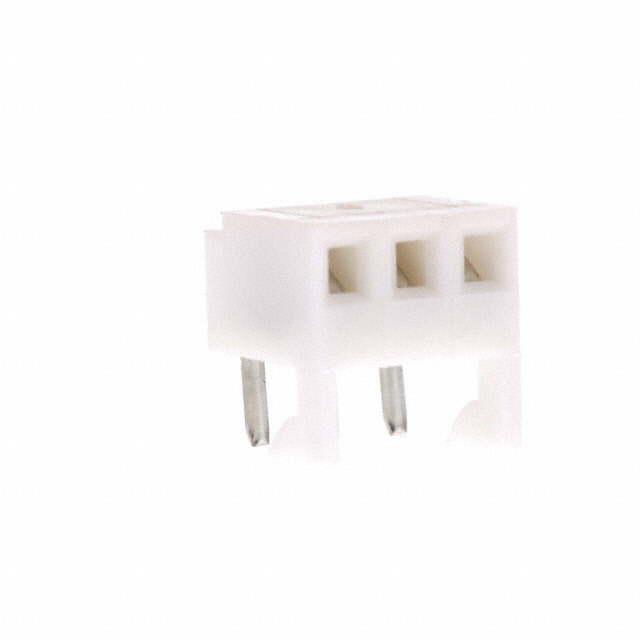

CONN RCPT 3POS 0.1 TIN EDGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

0038001333

Active

Molex

CONN RCPT 3POS 0.1 TIN EDGE MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0038001333

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Non-Gendered
Current Rating (Amps)	4 A
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

003800 Series

Part	Contact Material	Termination	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating	Mounting Type	Applications	Material Flammability Rating	Contact Finish - Post	Number of Rows	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Type	Fastening Type	Insulation Height	Insulation Height	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Shape	Connector Type	Overall Contact Length	Overall Contact Length	Shrouding	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)
Molex 0038007487	Brass	Solder	4	Polyamide (PA66) Nylon 6/6	11.43 mm	0.45 in	Through Hole	General Purpose Industrial Telecommunications	UL94 V-2	Tin	1	4.45 mm	0.175 in	5.08 mm	0.2 in	Male Pin	Push-Pull	0.375 in	9.53 mm	Board to Board Cable	2.54 çm	100 çin	Natural	Circular	Header	0.75 in	19.05 mm	Shrouded - 1 Wall
Molex 0038006296	Brass	Solder		Nylon Polyamide (PA)	7.15 mm	0.281 in	Through Hole	Automotive General Purpose Medical Telecommunications	UL94 V-0	Tin	1	10 mm	0.394 in	2.54 mm	0.1 in	Male Pin	Friction Lock	0.461 "	11.7 mm	Board to Cable/Wire	1.52 Ám	60 Áin	Natural	Square	Header	0.8 in	20.32 mm	Shrouded - 1 Wall	All	6	60 µin	1.52 µm
Molex 0038001333	Phosphor Bronze	Solder		Nylon Polyamide (PA)			Board Edge Right Angle Through Hole	Automotive General Purpose Medical Telecommunications	UL94 V-0	Tin	1	3.35 mm	0.132 in	2.54 mm	0.1 in	Non-Gendered	Push-Pull	0.185 in	4.7 mm	Board to Board Cable	2.54 çm	100 çin	White	Square	Receptacle				All		100 µin	2.54 µm	Board Hooks	4 A	250 VAC	-40 °C	105 ░C
Molex 0038007097	Brass	Solder		Polyamide (PA66) Nylon 6/6	11.43 mm	0.45 in	Through Hole		UL94 V-2	Tin	1	4.45 mm	0.175 in	5.08 mm	0.2 in	Male Pin	Push-Pull	0.375 in	9.53 mm	Board to Cable/Wire	2.54 çm	100 çin	Natural	Circular	Header	0.75 in	19.05 mm	Shrouded - 1 Wall		8	100 µin	2.54 µm			600 VAC	-40 °C	80 C	Varies by Wire Gauge
Molex 0038001397	Phosphor Bronze	Solder		Nylon Polyamide (PA)			Through Hole	Automotive General Purpose Medical Telecommunications	UL94 V-0	Tin	1	3.6 mm	0.142 in	2.54 mm	0.1 in	Non-Gendered	Push-Pull	0.311 in	7.9 mm	Board to Board Cable	2.54 çm	100 çin	White	Square	Receptacle Bottom Entry				All	7	100 µin	2.54 µm	Board Hooks	4 A	250 VAC	-40 °C	105 ░C
Molex 0038006293	Brass	Solder		Nylon Polyamide (PA)	7.15 mm	0.281 in	Through Hole	Automotive General Purpose Medical Telecommunications	UL94 V-0	Tin	1	10 mm	0.394 in	2.54 mm	0.1 in	Male Pin	Friction Lock	0.461 "	11.7 mm	Board to Cable/Wire	1.52 Ám	60 Áin	Natural	Square	Header	0.8 in	20.32 mm	Shrouded - 1 Wall	All		60 µin	1.52 µm
Molex 0038007262	Brass	Solder		Nylon Polyamide (PA)			Through Hole		UL94 V-0	Tin	1			3.96 mm	0.156 in	Male Pin	Push-Pull	0.461 "	11.7 mm	Board to Cable/Wire	1.52 Ám	60 Áin	Natural	Square	Header			Shrouded - 1 Wall	All		60 µin	1.52 µm
Molex 0038001208	Brass	Solder		Polyamide (PA66) Nylon 6/6	11.43 mm	0.45 in	Through Hole	General Purpose Industrial Telecommunications	UL94 V-2	Tin	1	4.45 mm	0.175 in	5.08 mm	0.2 in	Male Pin	Push-Pull	0.375 in	9.53 mm	Board to Board Cable	2.54 çm	100 çin	Natural	Circular	Header	0.75 in	19.05 mm	Shrouded - 1 Wall		7
Molex 0038007595
Molex 0038001396	Phosphor Bronze	Solder		Nylon Polyamide (PA)			Through Hole	Automotive General Purpose Medical Telecommunications	UL94 V-0	Tin	1	3.6 mm	0.142 in	2.54 mm	0.1 in	Non-Gendered	Push-Pull	0.311 in	7.9 mm	Board to Board Cable	2.54 çm	100 çin	White	Square	Receptacle Bottom Entry				All	6	100 µin	2.54 µm	Board Hooks	4 A	250 VAC	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.88
		10	$ 0.72
		100	$ 0.60

Description

General part information

003800 Series

3 Position Receptacle Connector 0.100" (2.54mm) Board Edge, Through Hole, Right Angle Tin
