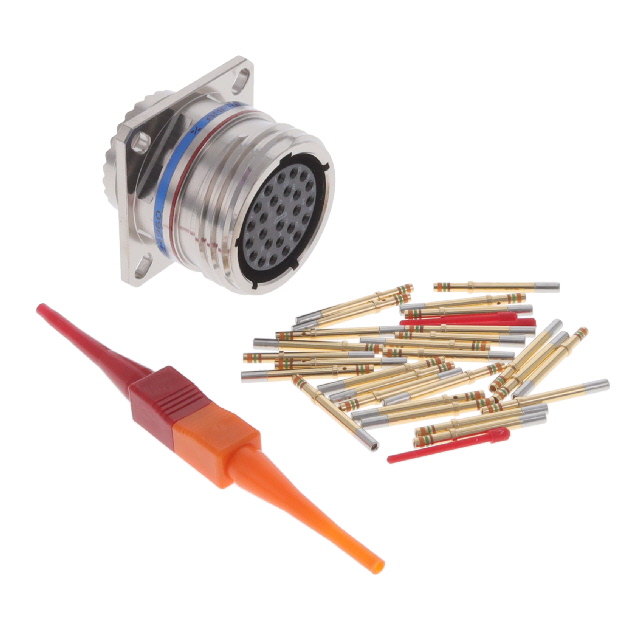

D38999/20FE26SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 26POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20FE26SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 26POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20FE26SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	26
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp

D38999/20FE Series

Part	Shell Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Number of Positions	Grade	Shell Finish	Mounting Feature	Type	Contact Type	Qualification	Contact Shape	Shell Size, MIL	Connector Type	Note	Housing Color	Orientation	Shielding	Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Contact Finish - Mating	Primary Material	Termination	Shell Size - Insert	Backshell Material, Plating	Features	Contact Size
Amphenol Aerospace Operations D38999/20FE26PC-LC	Aluminum	17	26	Environment Resistant	-65 ░C	200 °C	20	26	Military	Electroless Nickel	Flange	For Male Pins	Crimp	MIL-DTL-38999 Series III	Circular	E	Receptacle Housing	Contacts Not Included	Silver	C	Shielded
Amphenol Aerospace Operations D38999/20FE8PN	Aluminum			Environment Resistant	-65 ░C	200 °C		8	Military	Electroless Nickel	Flange			MIL-DTL-38999 Series III		E	Male Pins Receptacle			N	Shielded	Silver	Copper Alloy	1.27 µm	50 µin	Aerospace Aviation Marine Military	Gold	Metal	Crimp	17-8
Amphenol Aerospace Operations D38999/20FE26PN-US	Aluminum	17	26	Environment Resistant	-65 ░C	200 °C		26	Military	Electroless Nickel	Flange			MIL-DTL-38999 Series III		E	Male Pins Receptacle			N	Shielded	Silver	Copper Alloy	1.27 µm	50 µin	Aviation Marine Military	Gold	Metal	Crimp		Metal	Backshell Shielding Device
Amphenol Aerospace Operations D38999/20FE99SN-CG	Aluminum	17	99	Environment Resistant	-65 ░C	200 °C		23	Military	Electroless Nickel	Flange			MIL-DTL-38999 Series III		E	Receptacle Female Sockets			N	Unshielded	Silver	Copper Alloy	1.27 µm	50 µin	Aviation Marine Military	Gold	Metal	Crimp		Plastic	Cord Grip
Amphenol Aerospace Operations D38999/20FE2PN-LC	Aluminum			Environment Resistant	-65 ░C	200 °C		1 38	Military	Electroless Nickel	Flange	For Male Pins	Crimp	MIL-DTL-38999 Series III	Circular	E	Receptacle Housing	Contacts Not Included	Silver	N	Shielded									17-2			22D 8 Twinax
Amphenol Aerospace Operations D38999/20FE35PN	Aluminum	17	35	Environment Resistant	-65 ░C	200 °C		55 positions	Military	Electroless Nickel	Flange			MIL-DTL-38999 Series III		E	Male Pins Receptacle			N	Shielded	Silver	Copper Alloy	1.27 µm	50 µin	Aerospace Aviation Marine Military	Gold	Metal	Crimp
Amphenol Aerospace Operations D38999/20FE26SN	Aluminum	17	26	Environment Resistant	-65 ░C	200 °C		26	Military	Electroless Nickel	Flange			MIL-DTL-38999 Series III		E	Receptacle Female Sockets			N	Shielded	Silver	Copper Alloy	1.27 µm	50 µin	Aerospace Aviation Marine Military	Gold	Metal	Crimp
Amphenol Aerospace Operations D38999/20FE6HA	Aluminum			Environment Resistant	-65 ░C	200 °C		6	Military	Electroless Nickel	Flange			MIL-DTL-38999 Series III		E	Male Pins Receptacle			A	Shielded	Silver	Copper Alloy	2.54 çm	100 çin	Aviation Marine Military	Gold	Metal	Crimp	17-6
Amphenol Aerospace Operations D38999/20FE6JC-LC	Aluminum			Environment Resistant	-65 ░C	200 °C	12	6	Military	Electroless Nickel	Flange	For Female Sockets	Crimp	MIL-DTL-38999 Series III	Circular	E	Receptacle Housing	Contacts Not Included	Silver	C	Shielded									17-6
Amphenol Aerospace Operations D38999/20FE35JA	Aluminum	17	35	Environment Resistant	-65 ░C	200 °C		55 positions	Military	Electroless Nickel	Flange			MIL-DTL-38999 Series III		E	Receptacle Female Sockets			A	Shielded	Silver	Copper Alloy	2.54 çm	100 çin	Aviation Marine Military	Gold	Metal	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	2	$ 85.43
		10	$ 78.59
		50	$ 72.31
		100	$ 66.52
		500	$ 61.20
	Box	1	$ 71.86
		10	$ 62.28
		25	$ 54.96
		50	$ 49.17
		100	$ 43.12
	Bulk	1	$ 167.94
		10	$ 131.21
		25	$ 119.61
		50	$ 111.79

Description

General part information

D38999/20FE Series

26 Position Circular Connector Receptacle, Female Sockets Crimp
