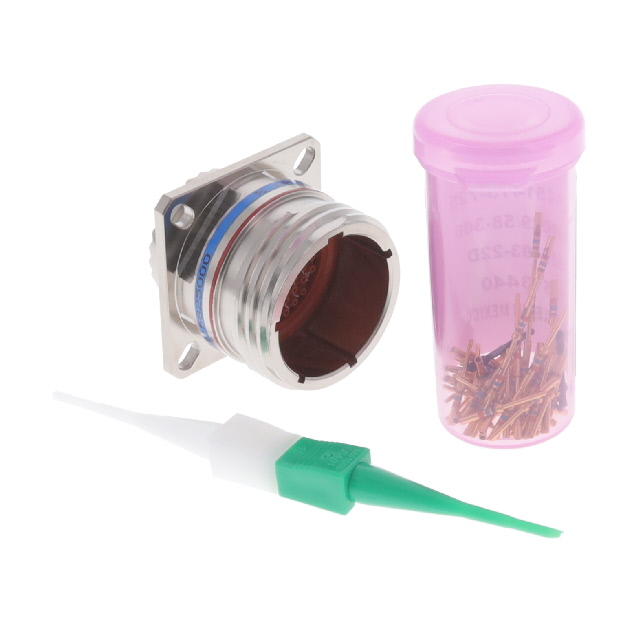

D38999/20FE35PN
ActiveAmphenol Aerospace Operations
CONN RCPT MALE 55POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/20FE35PN
ActiveAmphenol Aerospace Operations
CONN RCPT MALE 55POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/20FE35PN |
|---|---|
| Applications | Aviation, Aerospace, Marine, Military |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Number of Positions | 55 positions |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 17 |
| Shell Size, MIL | E |
| Shielding | Shielded |
| Termination | Crimp |
D38999/20FE Series
| Part | Shell Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Contact Size | Number of Positions | Grade | Shell Finish | Mounting Feature | Type | Contact Type | Qualification | Contact Shape | Shell Size, MIL | Connector Type | Note | Housing Color | Orientation | Shielding | Color | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Contact Finish - Mating | Primary Material | Termination | Shell Size - Insert | Backshell Material, Plating | Features | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | Aluminum | 17 | 26 | Environment Resistant | -65 ░C | 200 °C | 20 | 26 | Military | Electroless Nickel | Flange | For Male Pins | Crimp | MIL-DTL-38999 Series III | Circular | E | Receptacle Housing | Contacts Not Included | Silver | C | Shielded | ||||||||||||
Amphenol Aerospace Operations | Aluminum | Environment Resistant | -65 ░C | 200 °C | 8 | Military | Electroless Nickel | Flange | MIL-DTL-38999 Series III | E | Male Pins Receptacle | N | Shielded | Silver | Copper Alloy | 1.27 µm | 50 µin | Aerospace Aviation Marine Military | Gold | Metal | Crimp | 17-8 | |||||||||||
Amphenol Aerospace Operations | Aluminum | 17 | 26 | Environment Resistant | -65 ░C | 200 °C | 26 | Military | Electroless Nickel | Flange | MIL-DTL-38999 Series III | E | Male Pins Receptacle | N | Shielded | Silver | Copper Alloy | 1.27 µm | 50 µin | Aviation Marine Military | Gold | Metal | Crimp | Metal | Backshell Shielding Device | ||||||||
Amphenol Aerospace Operations | Aluminum | 17 | 99 | Environment Resistant | -65 ░C | 200 °C | 23 | Military | Electroless Nickel | Flange | MIL-DTL-38999 Series III | E | Receptacle Female Sockets | N | Unshielded | Silver | Copper Alloy | 1.27 µm | 50 µin | Aviation Marine Military | Gold | Metal | Crimp | Plastic | Cord Grip | ||||||||
Amphenol Aerospace Operations | Aluminum | Environment Resistant | -65 ░C | 200 °C | 1 38 | Military | Electroless Nickel | Flange | For Male Pins | Crimp | MIL-DTL-38999 Series III | Circular | E | Receptacle Housing | Contacts Not Included | Silver | N | Shielded | 17-2 | 22D 8 Twinax | |||||||||||||
Amphenol Aerospace Operations | Aluminum | 17 | 35 | Environment Resistant | -65 ░C | 200 °C | 55 positions | Military | Electroless Nickel | Flange | MIL-DTL-38999 Series III | E | Male Pins Receptacle | N | Shielded | Silver | Copper Alloy | 1.27 µm | 50 µin | Aerospace Aviation Marine Military | Gold | Metal | Crimp | ||||||||||
Amphenol Aerospace Operations | Aluminum | 17 | 26 | Environment Resistant | -65 ░C | 200 °C | 26 | Military | Electroless Nickel | Flange | MIL-DTL-38999 Series III | E | Receptacle Female Sockets | N | Shielded | Silver | Copper Alloy | 1.27 µm | 50 µin | Aerospace Aviation Marine Military | Gold | Metal | Crimp | ||||||||||
Amphenol Aerospace Operations | Aluminum | Environment Resistant | -65 ░C | 200 °C | 6 | Military | Electroless Nickel | Flange | MIL-DTL-38999 Series III | E | Male Pins Receptacle | A | Shielded | Silver | Copper Alloy | 2.54 çm | 100 çin | Aviation Marine Military | Gold | Metal | Crimp | 17-6 | |||||||||||
Amphenol Aerospace Operations | Aluminum | Environment Resistant | -65 ░C | 200 °C | 12 | 6 | Military | Electroless Nickel | Flange | For Female Sockets | Crimp | MIL-DTL-38999 Series III | Circular | E | Receptacle Housing | Contacts Not Included | Silver | C | Shielded | 17-6 | |||||||||||||
Amphenol Aerospace Operations | Aluminum | 17 | 35 | Environment Resistant | -65 ░C | 200 °C | 55 positions | Military | Electroless Nickel | Flange | MIL-DTL-38999 Series III | E | Receptacle Female Sockets | A | Shielded | Silver | Copper Alloy | 2.54 çm | 100 çin | Aviation Marine Military | Gold | Metal | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 314.05 | |
| 10 | $ 246.66 | |||
| 25 | $ 225.41 | |||
Description
General part information
D38999/20FE Series
55 Position Circular Connector Receptacle, Male Pins Crimp
