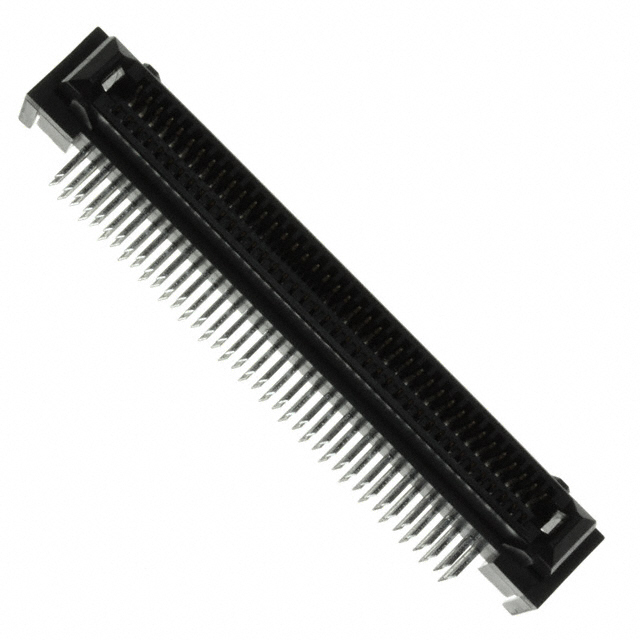

TX24-80R-LT-N1E

Active

JAE Electronics

CONN RCPT 80POS R/A GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TX24-80R-LT-N1E

Active

JAE Electronics

CONN RCPT 80POS R/A GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TX24-80R-LT-N1E

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	9 mm
Height Above Board	0.354 in
Mounting Type	Through Hole, Right Angle
Number of Positions	80
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

TX24-80R Series

Part	Contact Finish	Mated Stacking Heights	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board	Height Above Board	Connector Type
JAE Electronics TX24-80R-10ST-H1E	Gold	16 mm 18 mm 22 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.563 in	14.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-LT-N1E	Gold		80	4 Áin	0.1 Ám	Through Hole Right Angle	0.05 in	1.27 mm	2	0.354 in	9 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-12ST-E1E	Gold	18 mm 20 mm 24 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.642 in	16.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-6ST-E1E	Gold	12 mm 14 mm 18 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.406 in	10.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-6ST-H1E	Gold	12 mm 14 mm 18 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.406 in	10.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-12ST-H1E	Gold	18 mm 20 mm 24 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.642 in	16.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-10ST-N1E	Gold	16 mm 18 mm 22 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.563 in	14.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-6ST-N1E	Gold	12 mm 14 mm 18 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.406 in	10.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-LT-H1E	Gold		80	4 Áin	0.1 Ám	Through Hole Right Angle	0.05 in	1.27 mm	2	0.354 in	9 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-12ST-N1E	Gold	18 mm 20 mm 24 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.642 in	16.3 mm	Receptacle Outer Shroud Contacts

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.34
		10	$ 2.56
		25	$ 2.30
		40	$ 2.18
		80	$ 2.02
		230	$ 1.80
		440	$ 1.69
		945	$ 1.56
		2400	$ 1.42

Description

General part information

TX24-80R Series

80 Position Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle Gold
