TX24-80R-10ST-H1E

Active

JAE Electronics

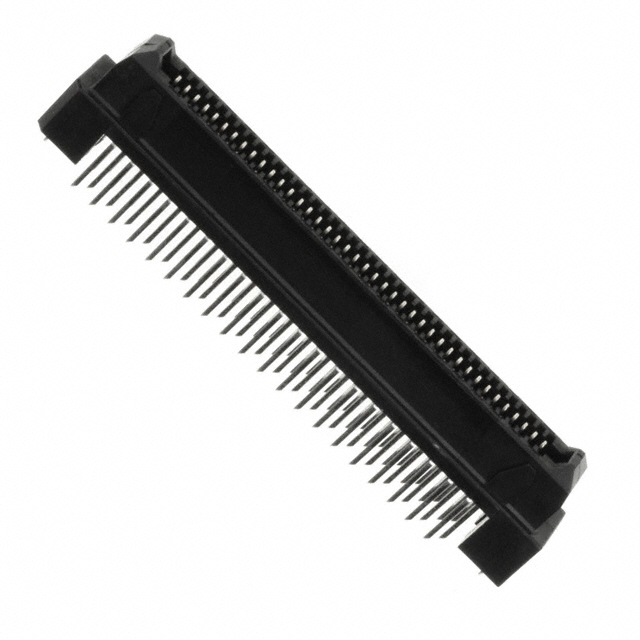

CONN RCPT 80POS VERT GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TX24-80R-10ST-H1E

Active

JAE Electronics

CONN RCPT 80POS VERT GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TX24-80R-10ST-H1E

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	0.563 in
Height Above Board	14.3 mm
Mated Stacking Heights	18 mm, 22 mm, 16 mm
Mounting Type	Through Hole
Number of Positions	80
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

TX24-80R Series

Part	Contact Finish	Mated Stacking Heights	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board	Height Above Board	Connector Type
JAE Electronics TX24-80R-10ST-H1E	Gold	16 mm 18 mm 22 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.563 in	14.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-LT-N1E	Gold		80	4 Áin	0.1 Ám	Through Hole Right Angle	0.05 in	1.27 mm	2	0.354 in	9 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-12ST-E1E	Gold	18 mm 20 mm 24 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.642 in	16.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-6ST-E1E	Gold	12 mm 14 mm 18 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.406 in	10.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-6ST-H1E	Gold	12 mm 14 mm 18 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.406 in	10.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-12ST-H1E	Gold	18 mm 20 mm 24 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.642 in	16.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-10ST-N1E	Gold	16 mm 18 mm 22 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.563 in	14.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-6ST-N1E	Gold	12 mm 14 mm 18 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.406 in	10.3 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-LT-H1E	Gold		80	4 Áin	0.1 Ám	Through Hole Right Angle	0.05 in	1.27 mm	2	0.354 in	9 mm	Receptacle Outer Shroud Contacts
JAE Electronics TX24-80R-12ST-N1E	Gold	18 mm 20 mm 24 mm	80	4 Áin	0.1 Ám	Through Hole	0.05 in	1.27 mm	2	0.642 in	16.3 mm	Receptacle Outer Shroud Contacts

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.75
		10	$ 2.50
		25	$ 2.37
		40	$ 2.31
		80	$ 2.20
		360	$ 1.93
		720	$ 1.87
		1080	$ 1.60
		2520	$ 1.49

Description

General part information

TX24-80R Series

80 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
