1424470

Active

Phoenix Contact

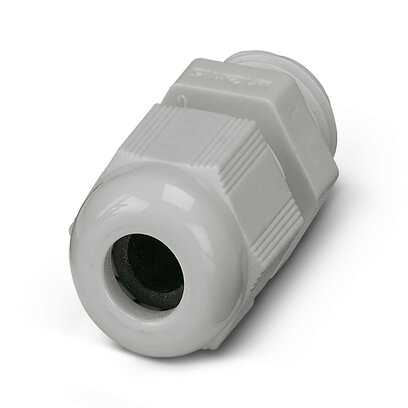

CABLE GLAND 4-8MM M16 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 4-8MM M16 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	1424470

Color	Gray
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M16x1.5
Type	Cable Gland

Part	Ingress Protection	Thread Size	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Color	Material
Phoenix Contact 1424470	IP66/IP68	M16x1.5	8 mm	0.315 in	100 °C	-40 °C	Seal	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	Gray	Polyamide (PA) Nylon
Phoenix Contact 1411162	IP66 IP68 IP69	M16	7 mm	0.276 in	100 °C	-40 °C	O-Ring Seal	0.197 in	5 mm	10 mm	0.394 "	Cable Gland	Silver	Brass Nickel Plated
Phoenix Contact 1424475	IP66/IP68	M16x1.5	8 mm	0.315 in	100 °C	-40 °C	Seal	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	Gray	Polyamide (PA) Nylon
Phoenix Contact 1417653	IP66/IP68	M16x1.5	10 mm	0.394 in	100 °C	-40 °C	Seal	0.197 in	5 mm	10 mm	0.394 "	Cable Gland	Light Gray	Polyamide (PA) Nylon
Phoenix Contact 1424480	IP66/IP68	M16x1.5	8 mm	0.315 in	100 °C	-40 °C	Seal	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	Black	Polyamide (PA) Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M16x1.5 Gray
