1417653

Active

Phoenix Contact

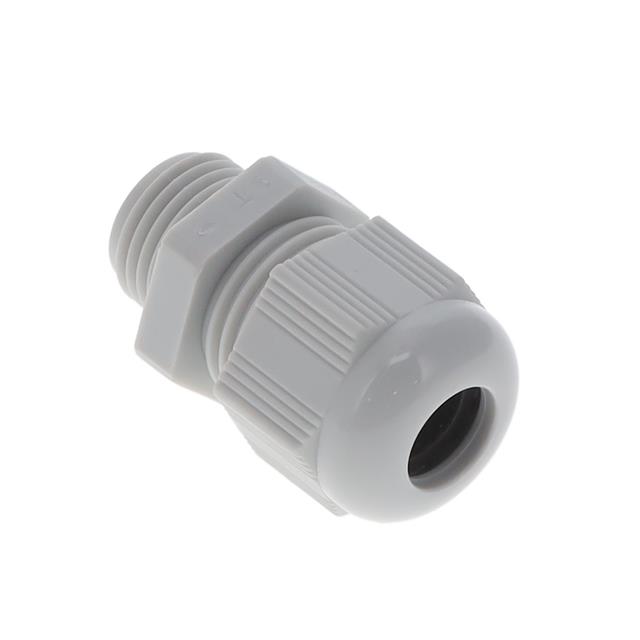

CABLE GLAND 5-10MM M16 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 5-10MM M16 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	1417653

Color	Light Gray
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M16x1.5
Type	Cable Gland

Part	Ingress Protection	Thread Size	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Color	Material
Phoenix Contact 1424470	IP66/IP68	M16x1.5	8 mm	0.315 in	100 °C	-40 °C	Seal	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	Gray	Polyamide (PA) Nylon
Phoenix Contact 1411162	IP66 IP68 IP69	M16	7 mm	0.276 in	100 °C	-40 °C	O-Ring Seal	0.197 in	5 mm	10 mm	0.394 "	Cable Gland	Silver	Brass Nickel Plated
Phoenix Contact 1424475	IP66/IP68	M16x1.5	8 mm	0.315 in	100 °C	-40 °C	Seal	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	Gray	Polyamide (PA) Nylon
Phoenix Contact 1417653	IP66/IP68	M16x1.5	10 mm	0.394 in	100 °C	-40 °C	Seal	0.197 in	5 mm	10 mm	0.394 "	Cable Gland	Light Gray	Polyamide (PA) Nylon
Phoenix Contact 1424480	IP66/IP68	M16x1.5	8 mm	0.315 in	100 °C	-40 °C	Seal	0.157 in	4 mm	8 mm	0.315 in	Cable Gland	Black	Polyamide (PA) Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.58

General part information

Cable Gland Polyamide (PA), Nylon M16x1.5 Light Gray
