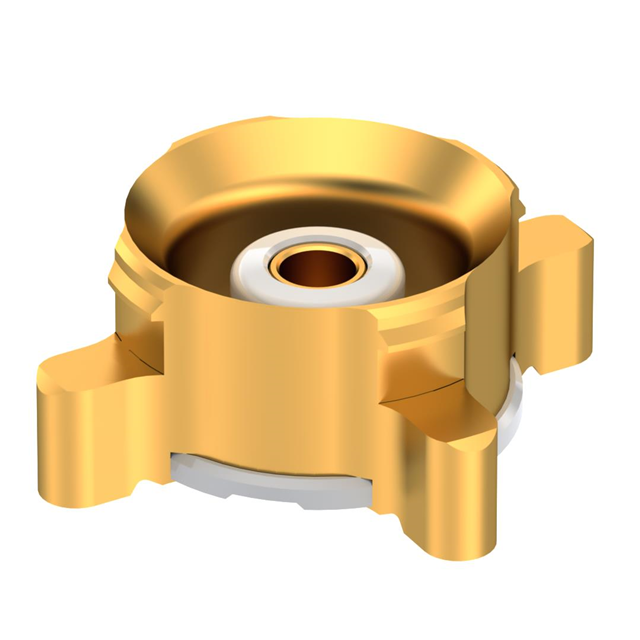

R223434000

Active

Radiall USA, Inc.

MMBX M SMT C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMBX M SMT C100

Technical Specifications

Parameters and characteristics for this part

Specification	R223434000

Body Finish	Gold
Body Material	Brass, Bronze
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMBX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	330 VDC

Part	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Mating Cycles	Fastening Type	Body Finish	Shield Termination	Center Contact Plating	Body Material	Mounting Type	Connector Style	Frequency - Max [Max]	Contact Termination	Voltage Rating	Dielectric Material	Center Contact Material	Connector Type	Impedance
Radiall USA, Inc. R223434800	1	155 °C	-55 °C	Gold	500	Snap-On	Gold	Solder	Gold	Beryllium Copper Brass	Surface Mount	MMBX	12.4 GHz	Solder	330 VDC	Liquid Crystal Polymer (LCP)	Beryllium Copper Brass	Male Pin Plug	50 Ohms
Radiall USA, Inc. R223434000	1	155 °C	-55 °C	Gold		Snap-On	Gold	Solder	Gold	Brass Bronze	Surface Mount	MMBX	12.4 GHz	Solder	330 VDC	Polytetrafluoroethylene (PTFE)	Beryllium Copper Brass	Male Pin Plug	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMBX Connector Plug, Male Pin 50 Ohms Surface Mount Solder
