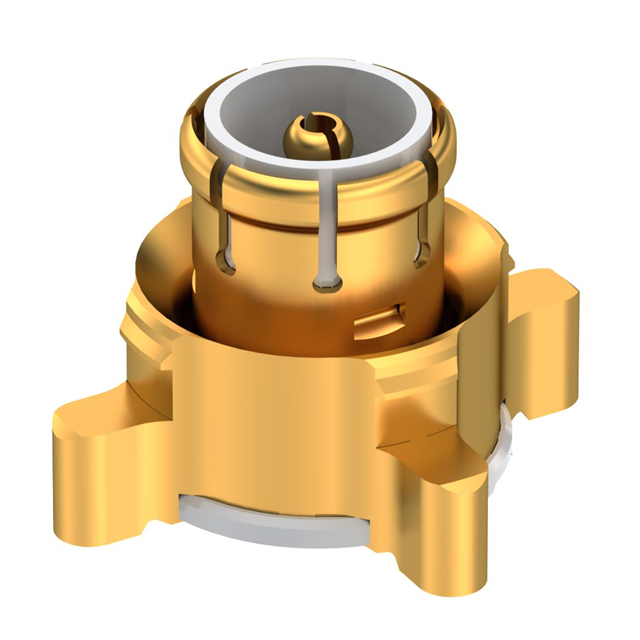

R223434800
ActiveRadiall USA, Inc.
MMBX / SMT PLUG RECEPTACLE - REE
Deep-Dive with AI
Search across all available documentation for this part.
R223434800
ActiveRadiall USA, Inc.
MMBX / SMT PLUG RECEPTACLE - REE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R223434800 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass, Beryllium Copper |
| Center Contact Material | Brass, Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MMBX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 330 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 14.71 | |
| 10 | $ 11.31 | |||
| 25 | $ 10.23 | |||
| 50 | $ 9.49 | |||
| 100 | $ 8.83 | |||
| 250 | $ 8.04 | |||
| Digi-Reel® | 1 | $ 14.71 | ||
| 10 | $ 11.31 | |||
| 25 | $ 10.23 | |||
| 50 | $ 9.49 | |||
| 100 | $ 8.83 | |||
| 250 | $ 8.04 | |||
| Tape & Reel (TR) | 750 | $ 6.81 | ||
| 1500 | $ 6.45 | |||
Description
General part information
R22343 Series
MMBX Connector Plug, Male Pin 50 Ohms Surface Mount Solder
Documents
Technical documentation and resources
No documents available
