30-03176

Active

Tensility International Corp

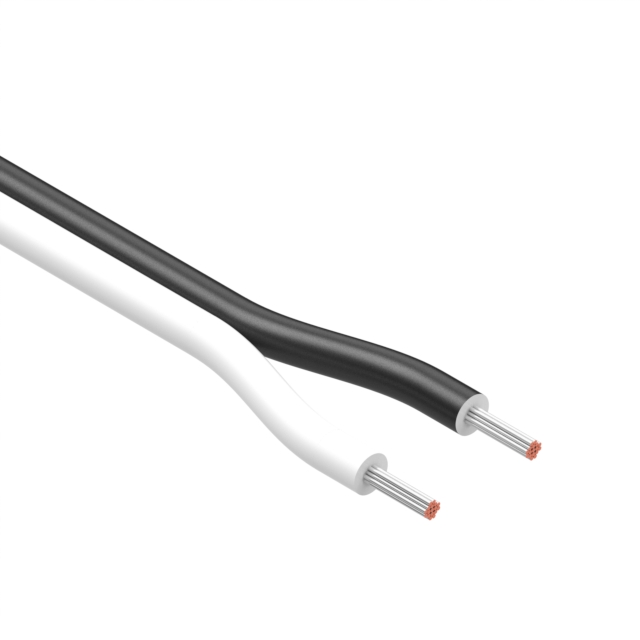

CBL 2COND 22AWG WHT/BLACK METER

Deep-Dive with AI

Search across all available documentation for this part.

30-03176

Active

Tensility International Corp

CBL 2COND 22AWG WHT/BLACK METER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	30-03176

Cable Type	Multi-Conductor
Conductor Strand [custom]	0.0063 "
Conductor Strand [custom]	17
Jacket (Insulation) Diameter [diameter]	3.2 mm
Jacket (Insulation) Diameter [diameter]	0.126 in
Jacket (Insulation) Material	Polyphenylene Ether, Modified (mPPE)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	White, Black
Length	Enter Number of Meters in Order Quantity
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 21516
Spool Size	502 ft
Spool Size	153 m
Voltage	600 V
Wire Gauge	22 AWG

- Series

...

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Voltage	Conductor Strand	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Material	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shielding	Color	Length	Length	Connector Type	Usage	Spool Size	Spool Size	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Strand [diameter]	Mounting Type	Features	Number of Positions/Contacts	Style	Length	Number of Conductors	Conductor Strand [custom]
Tensility International Corp 30-02528	0.099 in	2.51 mm	Hook-Up	Purple	-80 °C	200 °C	13.5 AWG	300 V	0.0146 in	19	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm
Tensility International Corp 10-03965			Round													Shielded	Black	10 m	32.81 ft	Circular 08 pos Male to RJ45 8p8c	Cat6a Industrial Environments - IP67
Tensility International Corp 30-02595	0.041 in	1.04 mm	Hook-Up	Blue	-80 °C	200 °C	28 AWG	300 V	0.005 in	7	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm			30 m	98.43 ft			1000.7 ft	305 m	1 m 152 m	3.28 ft 498.7 ft
Tensility International Corp 30-02562	0.056 in	1.42 mm	Hook-Up	Black	-80 °C	200 °C	22 AWG	300 V			Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm			30 m	98.43 ft			1000.7 ft	305 m	1 m 152 m	3.28 ft 498.7 ft
Tensility International Corp 30-02535	0.085 in	2.16 mm	Hook-Up	Blue	-80 °C	200 °C	16 AWG	300 V		19	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm			30 m	98.43 ft			1000.7 ft	305 m	1 m 152 m	3.28 ft 498.7 ft	0.0118 in
Tensility International Corp 30-02553	0.064 in	1.63 mm	Hook-Up		-80 °C	200 °C	20 AWG	300 V			Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm			30 m	98.43 ft			1000.7 ft	305 m	1 m 152 m	3.28 ft 498.7 ft		19 Strands	0.0075 in
Tensility International Corp 10-03975			Round Cable													Shielded	Black			Plug to Plug				3 m	9.84 ft				Free Hanging (In-Line)	26 AWG	8p8c (RJ45 Ethernet)	Cat6a
Tensility International Corp 30-02537	0.085 in	2.16 mm	Hook-Up	Orange	-80 °C	200 °C	16 AWG	300 V		19	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm											0.0118 in
Tensility International Corp 30-03176	0.126 in	3.2 mm	Multi-Conductor	Black White	-40 °C	105 ░C	22 AWG	600 V				Polyphenylene Ether Modified (mPPE)	UL Style 21516	0.015 in	0.381 mm							502 ft	153 m				17						Enter Number of Meters in Order Quantity	2	0.0063 "
Tensility International Corp 30-03156	0.126 in	3.2 mm	Multi-Conductor	Black	-40 °C	105 ░C	22 AWG	600 V				Polyphenylene Ether Modified (mPPE)	UL Style 21516	0.015 in	0.381 mm			153 m	502 ft								17							2	0.0063 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 3.35
		2	$ 3.19
		3	$ 3.10
		5	$ 3.00
		7	$ 2.93
		10	$ 2.85
		25	$ 2.67
		50	$ 2.54
		100	$ 2.42

Description

General part information

- Series

2 Conductor Multi-Conductor Cable Black, White 22 AWG Enter Number of Meters in Order Quantity

Documents

Technical documentation and resources

No documents available
