30-02562

Active

Tensility International Corp

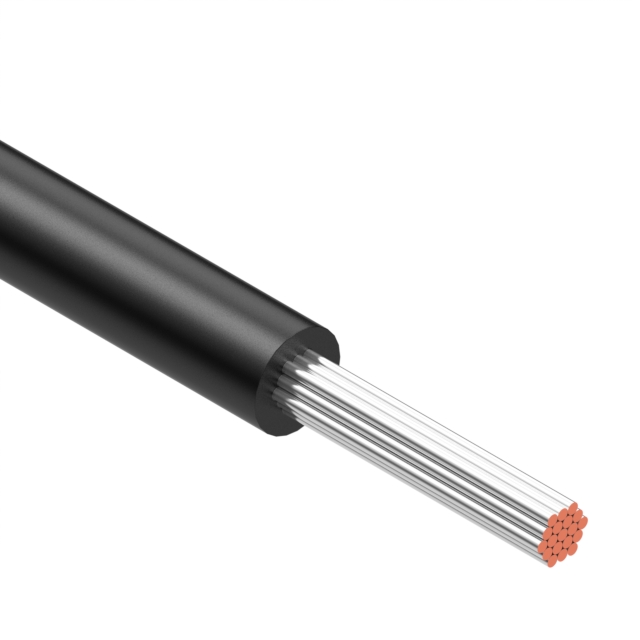

HOOK-UP STRND 22AWG BLACK 16.40'

Deep-Dive with AI

Search across all available documentation for this part.

30-02562

Active

Tensility International Corp

HOOK-UP STRND 22AWG BLACK 16.40'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	30-02562

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Jacket (Insulation) Diameter [diameter]	1.42 mm
Jacket (Insulation) Diameter [diameter]	0.056 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket (Insulation) Thickness	0.013 in
Jacket (Insulation) Thickness	0.33 mm
Jacket Color	Black
Length	30 m
Length	98.43 ft
Length [x]	1 m, 152 m
Length [x]	3.28 ft, 498.7 ft
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-80 °C
Ratings	UL Style 1332
Spool Size	1000.7 ft
Spool Size	305 m
Voltage	300 V
Wire Gauge	22 AWG

- Series

...

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Voltage	Conductor Strand	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Material	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shielding	Color	Length	Length	Connector Type	Usage	Spool Size	Spool Size	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Strand [diameter]	Mounting Type	Features	Number of Positions/Contacts	Style	Length	Number of Conductors	Conductor Strand [custom]
Tensility International Corp 30-02528	0.099 in	2.51 mm	Hook-Up	Purple	-80 °C	200 °C	13.5 AWG	300 V	0.0146 in	19	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm
Tensility International Corp 10-03965			Round													Shielded	Black	10 m	32.81 ft	Circular 08 pos Male to RJ45 8p8c	Cat6a Industrial Environments - IP67
Tensility International Corp 30-02595	0.041 in	1.04 mm	Hook-Up	Blue	-80 °C	200 °C	28 AWG	300 V	0.005 in	7	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm			30 m	98.43 ft			1000.7 ft	305 m	1 m 152 m	3.28 ft 498.7 ft
Tensility International Corp 30-02562	0.056 in	1.42 mm	Hook-Up	Black	-80 °C	200 °C	22 AWG	300 V			Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm			30 m	98.43 ft			1000.7 ft	305 m	1 m 152 m	3.28 ft 498.7 ft
Tensility International Corp 30-02535	0.085 in	2.16 mm	Hook-Up	Blue	-80 °C	200 °C	16 AWG	300 V		19	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm			30 m	98.43 ft			1000.7 ft	305 m	1 m 152 m	3.28 ft 498.7 ft	0.0118 in
Tensility International Corp 30-02553	0.064 in	1.63 mm	Hook-Up		-80 °C	200 °C	20 AWG	300 V			Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm			30 m	98.43 ft			1000.7 ft	305 m	1 m 152 m	3.28 ft 498.7 ft		19 Strands	0.0075 in
Tensility International Corp 10-03975			Round Cable													Shielded	Black			Plug to Plug				3 m	9.84 ft				Free Hanging (In-Line)	26 AWG	8p8c (RJ45 Ethernet)	Cat6a
Tensility International Corp 30-02537	0.085 in	2.16 mm	Hook-Up	Orange	-80 °C	200 °C	16 AWG	300 V		19	Copper Tinned	Fluorinated Ethylene-Propylene (FEP)	UL Style 1332	0.013 in	0.33 mm											0.0118 in
Tensility International Corp 30-03176	0.126 in	3.2 mm	Multi-Conductor	Black White	-40 °C	105 ░C	22 AWG	600 V				Polyphenylene Ether Modified (mPPE)	UL Style 21516	0.015 in	0.381 mm							502 ft	153 m				17						Enter Number of Meters in Order Quantity	2	0.0063 "
Tensility International Corp 30-03156	0.126 in	3.2 mm	Multi-Conductor	Black	-40 °C	105 ░C	22 AWG	600 V				Polyphenylene Ether Modified (mPPE)	UL Style 21516	0.015 in	0.381 mm			153 m	502 ft								17							2	0.0063 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.90
		1	$ 236.08
		1	$ 1.89
		1	$ 8.47
		5	$ 193.16
		5	$ 40.01
		5	$ 1.55
		5	$ 6.93
		10	$ 150.23
		10	$ 1.21
		10	$ 5.39
		10	$ 31.12
	Spool	305	$ 0.79
		610	$ 0.76
		1525	$ 0.72
		3050	$ 0.68
		7625	$ 0.64
		15250	$ 0.63

Description

General part information

- Series

22 AWG Hook-Up Wire 19/0.0059" Black 300V 1000.7' (305.0m)

Documents

Technical documentation and resources

No documents available
