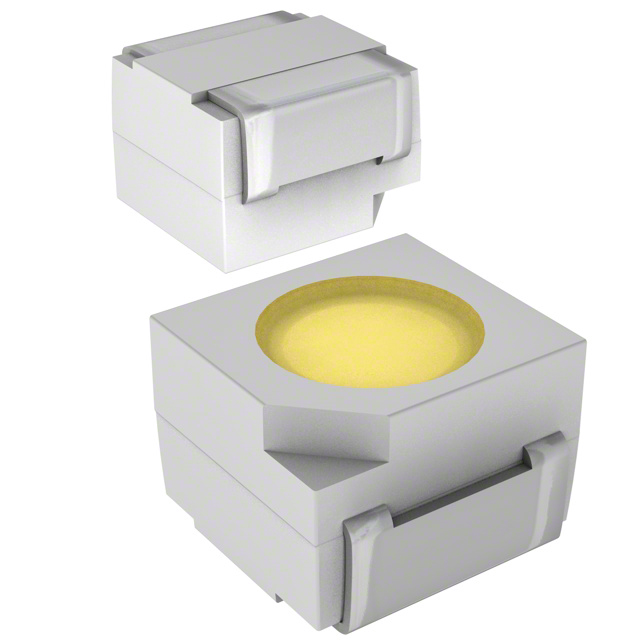

SMTL2-SUWD

Active

Bivar Inc.

LED WHITE DIFFUSED 2PLCC SMD

Search across all available documentation for this part.

Active

Bivar Inc.

LED WHITE DIFFUSED 2PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Wavelength - Dominant	Configuration	Lens Transparency	Current - Test	Lens Color	Supplier Device Package	Height (Max) [Max]	Color	Voltage - Forward (Vf) (Typ)	Package / Case	Millicandela Rating	Viewing Angle	Height (Max) [Max] [z]	Wavelength - Dominant [custom]
Bivar Inc. SMTL2-URC	2.8 mm	3.2 mm	Surface Mount	622 nm	Standard	Clear	20 mA	Colorless	2-PLCC	1.9 mm	Red	2 V	2-PLCC	850 mcd	120 °
Bivar Inc. SMTL2-SUWD	2.8 mm	3.2 mm	Surface Mount		Standard	Diffused	20 mA	Yellow	2-PLCC		White	3.2 V	2-PLCC	2650 mcd	120 °	2.1 mm
Bivar Inc. SMTL2-SBWC	2.8 mm	3.2 mm	Surface Mount	470 nm	Standard	Clear	20 mA	Colorless	2-PLCC		Blue	3.2 V	2-PLCC	285 mcd	120 °	2.1 mm
Bivar Inc. SMTL2-GC	2.8 mm	3.2 mm	Surface Mount	570 nm	Standard	Clear	20 mA	Colorless	2-PLCC		Green	1.9 V	2-PLCC	40 mcd	120 °	2.1 mm
Bivar Inc. SMTL2-RC	2.8 mm	3.2 mm	Surface Mount	640 nm	Standard	Clear	20 mA	Colorless	2-PLCC		Red	1.85 V	2-PLCC	36 mcd	120 °	2.1 mm
Bivar Inc. SMTL2-HC	2.8 mm	3.2 mm	Surface Mount	627 nm	Standard	Clear	20 mA	Colorless	2-PLCC		Red	1.9 V	2-PLCC	28 mcd	120 °	2.1 mm
Bivar Inc. SMTL2-OC	2.8 mm	3.2 mm	Surface Mount	605 nm	Standard	Clear	20 mA	Colorless	2-PLCC			1.9 V	2-PLCC	270 mcd	120 °	2.1 mm
Bivar Inc. SMTL2-YC	2.8 mm	3.2 mm	Surface Mount		Standard	Clear	20 mA	Colorless	2-PLCC		Yellow	2 V	2-PLCC	16 mcd	120 °	2.1 mm	585 nm
Bivar Inc. SMTL2-UWD	2.8 mm	3.2 mm	Surface Mount		Standard	Diffused	20 mA	Yellow	2-PLCC		White	3.2 V	2-PLCC	1800 mcd	120 °	2.1 mm
Bivar Inc. SMTL2-SOC	2.8 mm	3.2 mm	Surface Mount	605 nm	Standard	Clear	20 mA	Colorless	2-PLCC			1.9 V	2-PLCC	800 mcd	120 °	2.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White LED Indication - Discrete 3.2V 2-PLCC
