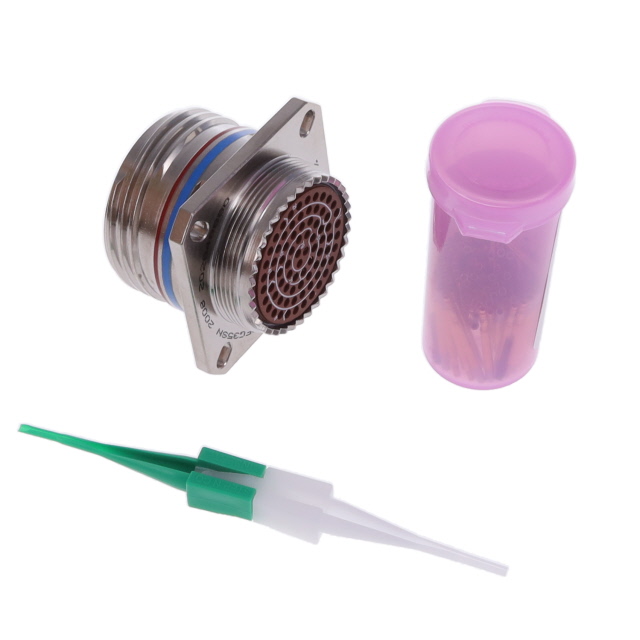

D38999/20FG35SN
ActiveAmphenol Aerospace Operations
CONN RCPT FMALE 79POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/20FG35SN
ActiveAmphenol Aerospace Operations
CONN RCPT FMALE 79POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/20FG35SN |
|---|---|
| Applications | Aviation, Aerospace, Marine, Military |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Number of Positions | 79 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 21 |
| Shell Size, MIL | G |
| Shielding | Shielded |
| Termination | Crimp |
D38999/20FG Series
| Part | Contact Material | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size, MIL | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Grade | Termination | Number of Positions | Ingress Protection | Connector Type | Applications | Qualification | Orientation | Shell Material | Contact Finish - Mating | Shielding | Color | Shell Finish | Primary Material | Contact Type | Number of Positions | Note | Contact Size | Shell Size - Insert | Type | Contact Shape | Housing Color | Insert Material | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | Copper Alloy | Flange | 1.27 µm | 50 µin | G | -65 ░C | 200 °C | 21 | 35 | Military | Crimp | 79 | Environment Resistant | Male Pins Receptacle | Aerospace Aviation Marine Military | MIL-DTL-38999 Series III | A | Aluminum | Gold | Shielded | Silver | Electroless Nickel | Metal | ||||||||||
Amphenol Aerospace Operations | Copper Alloy | Flange | 1.27 µm | 50 µin | G | -65 ░C | 200 °C | 21 | 35 | Military | Crimp | 79 | Environment Resistant | Male Pins Receptacle | Aerospace Aviation Marine Military | MIL-DTL-38999 Series III | N | Aluminum | Gold | Shielded | Silver | Electroless Nickel | Metal | ||||||||||
Amphenol Aerospace Operations | Flange | G | -65 ░C | 200 °C | Military | Environment Resistant | Receptacle Housing | MIL-DTL-38999 Series III | N | Aluminum | Shielded | Electroless Nickel | Crimp | 16 | Contacts Not Included | 16 | 21-16 | For Male Pins | Circular | Silver | |||||||||||||
Amphenol Aerospace Operations | Copper Alloy | Flange | 1.27 µm | 50 µin | G | -65 ░C | 200 °C | 21 | 35 | Military | Crimp | 79 | Environment Resistant | Receptacle Female Sockets | Aerospace Aviation Marine Military | MIL-DTL-38999 Series III | N | Aluminum | Gold | Shielded | Silver | Electroless Nickel | Metal | ||||||||||
Amphenol Aerospace Operations | Flange | G | -65 ░C | 200 °C | 21 | 41 | Military | 41 | Environment Resistant | Receptacle Housing | MIL-DTL-38999 Series III | A | Aluminum | Shielded | Electroless Nickel | Metal | Crimp | Contacts Not Included | 20 | For Male Pins | Circular | Silver | Thermoplastic | ||||||||||
Amphenol Aerospace Operations | Flange | G | -65 ░C | 200 °C | 21 | 39 | Military | 39 | Environment Resistant | Receptacle Housing | MIL-DTL-38999 Series III | N | Aluminum | Shielded | Electroless Nickel | Crimp | Contacts Not Included | 16 20 | For Male Pins | Circular | Silver | 2 37 | |||||||||||
Amphenol Aerospace Operations | Flange | G | -65 ░C | 200 °C | Military | Environment Resistant | Receptacle Housing | MIL-DTL-38999 Series III | N | Aluminum | Shielded | Electroless Nickel | Crimp | 16 | Contacts Not Included | 16 | 21-16 | For Male Pins | Circular | Silver | |||||||||||||
Amphenol Aerospace Operations | Flange | G | -65 ░C | 200 °C | 21 | 39 | Military | 39 | Environment Resistant | Receptacle Housing | MIL-DTL-38999 Series III | N | Aluminum | Shielded | Electroless Nickel | Crimp | Contacts Not Included | 16 20 | For Male Pins | Circular | Silver | 2 37 | |||||||||||
Amphenol Aerospace Operations | Flange | G | -65 ░C | 200 °C | Military | Environment Resistant | Receptacle Housing | MIL-DTL-38999 Series III | N | Aluminum | Shielded | Electroless Nickel | Crimp | 16 | Contacts Not Included | 16 | 21-16 | For Male Pins | Circular | Silver | |||||||||||||
Amphenol Aerospace Operations | Copper Alloy | Flange | 2.54 çm | 100 çin | G | -65 ░C | 200 °C | Military | Crimp | Environment Resistant | Male Pins Receptacle | Aviation Marine Military | MIL-DTL-38999 Series III | N | Aluminum | Gold | Shielded | Silver | Electroless Nickel | Metal | 16 | 21-16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 523.78 | |
| 10 | $ 413.27 | |||
| 25 | $ 378.49 | |||
Description
General part information
D38999/20FG Series
79 Position Circular Connector Receptacle, Female Sockets Crimp
