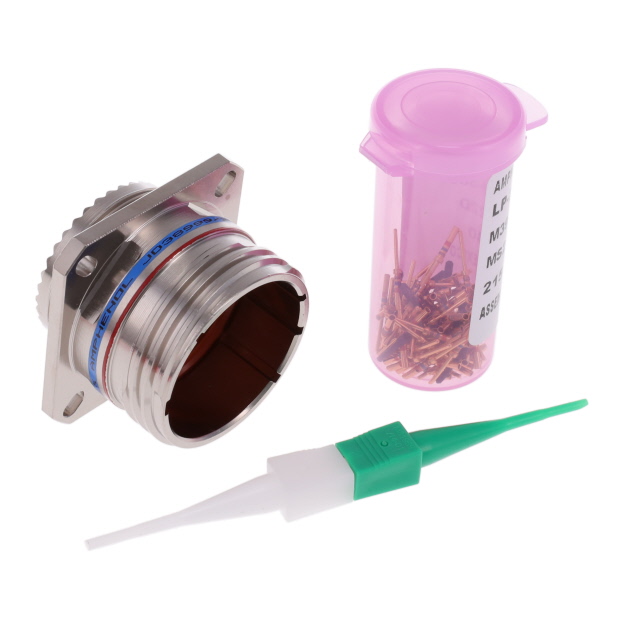

D38999/20FG35PA

Active

Amphenol Aerospace Operations

CONN RCPT MALE 79POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20FG35PA

Active

Amphenol Aerospace Operations

CONN RCPT MALE 79POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20FG35PA

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	79
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	21
Shell Size, MIL	G
Shielding	Shielded
Termination	Crimp

D38999/20FG Series

Part	Contact Material	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size, MIL	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Grade	Termination	Number of Positions	Ingress Protection	Connector Type	Applications	Qualification	Orientation	Shell Material	Contact Finish - Mating	Shielding	Color	Shell Finish	Primary Material	Contact Type	Number of Positions	Note	Contact Size	Shell Size - Insert	Type	Contact Shape	Housing Color	Insert Material	Contact Size
Amphenol Aerospace Operations D38999/20FG35PA	Copper Alloy	Flange	1.27 µm	50 µin	G	-65 ░C	200 °C	21	35	Military	Crimp	79	Environment Resistant	Male Pins Receptacle	Aerospace Aviation Marine Military	MIL-DTL-38999 Series III	A	Aluminum	Gold	Shielded	Silver	Electroless Nickel	Metal
Amphenol Aerospace Operations D38999/20FG35PN	Copper Alloy	Flange	1.27 µm	50 µin	G	-65 ░C	200 °C	21	35	Military	Crimp	79	Environment Resistant	Male Pins Receptacle	Aerospace Aviation Marine Military	MIL-DTL-38999 Series III	N	Aluminum	Gold	Shielded	Silver	Electroless Nickel	Metal
Amphenol Aerospace Operations D38999/20FG16AN		Flange			G	-65 ░C	200 °C			Military			Environment Resistant	Receptacle Housing		MIL-DTL-38999 Series III	N	Aluminum		Shielded		Electroless Nickel		Crimp	16	Contacts Not Included	16	21-16	For Male Pins	Circular	Silver
Amphenol Aerospace Operations D38999/20FG35SN	Copper Alloy	Flange	1.27 µm	50 µin	G	-65 ░C	200 °C	21	35	Military	Crimp	79	Environment Resistant	Receptacle Female Sockets	Aerospace Aviation Marine Military	MIL-DTL-38999 Series III	N	Aluminum	Gold	Shielded	Silver	Electroless Nickel	Metal
Amphenol Aerospace Operations D38999/20FG41AA		Flange			G	-65 ░C	200 °C	21	41	Military		41	Environment Resistant	Receptacle Housing		MIL-DTL-38999 Series III	A	Aluminum		Shielded		Electroless Nickel	Metal	Crimp		Contacts Not Included	20		For Male Pins	Circular	Silver	Thermoplastic
Amphenol Aerospace Operations D38999/20FG39PN-LC		Flange			G	-65 ░C	200 °C	21	39	Military		39	Environment Resistant	Receptacle Housing		MIL-DTL-38999 Series III	N	Aluminum		Shielded		Electroless Nickel		Crimp		Contacts Not Included	16 20		For Male Pins	Circular	Silver		2 37
Amphenol Aerospace Operations D38999/20FG16HN-LC		Flange			G	-65 ░C	200 °C			Military			Environment Resistant	Receptacle Housing		MIL-DTL-38999 Series III	N	Aluminum		Shielded		Electroless Nickel		Crimp	16	Contacts Not Included	16	21-16	For Male Pins	Circular	Silver
Amphenol Aerospace Operations D38999/20FG39AN		Flange			G	-65 ░C	200 °C	21	39	Military		39	Environment Resistant	Receptacle Housing		MIL-DTL-38999 Series III	N	Aluminum		Shielded		Electroless Nickel		Crimp		Contacts Not Included	16 20		For Male Pins	Circular	Silver		2 37
Amphenol Aerospace Operations D38999/20FG16PN-LC		Flange			G	-65 ░C	200 °C			Military			Environment Resistant	Receptacle Housing		MIL-DTL-38999 Series III	N	Aluminum		Shielded		Electroless Nickel		Crimp	16	Contacts Not Included	16	21-16	For Male Pins	Circular	Silver
Amphenol Aerospace Operations D38999/20FG16HN	Copper Alloy	Flange	2.54 çm	100 çin	G	-65 ░C	200 °C			Military	Crimp		Environment Resistant	Male Pins Receptacle	Aviation Marine Military	MIL-DTL-38999 Series III	N	Aluminum	Gold	Shielded	Silver	Electroless Nickel	Metal		16			21-16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 331.31
		10	$ 283.56
		25	$ 259.29

Description

General part information

D38999/20FG Series

79 Position Circular Connector Receptacle, Male Pins Crimp
