GCTP-4 1/2

Active

Bertech

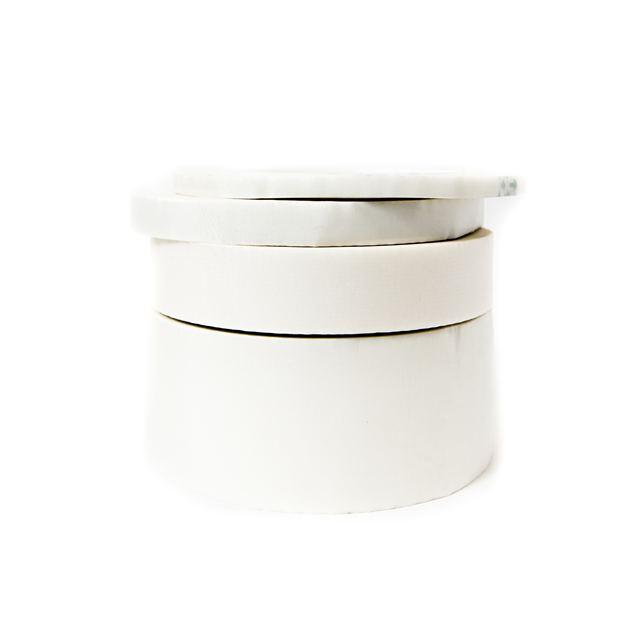

TAPE GLASS CLOTH WHT 4 1/2"X36YD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GCTP-4 1/2

Active

Bertech

TAPE GLASS CLOTH WHT 4 1/2"X36YD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GCTP-4 1/2

Adhesive	Silicone
Backing, Carrier	Glass Cloth
Color	White
Length	36 yd
Length	32.9 m
Length	108 ft
Tape Type	Glass Cloth
Temperature Range [Max]	200 °C
Temperature Range [Min]	-99 °F, -73 °C
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Usage	Sealing, Masking
Width	4.5 "
Width	114.3 mm
Width

GCTP Series

Part	Temperature Range [Max]	Temperature Range [Min]	Usage	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Color	Backing, Carrier	Shelf Life	Shelf Life Start	Width	Width	Width	Length	Length	Length	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Tape Type	Width [x]	Width [x]	Width [y]	Width [y]	Width [x]
Bertech GCTP-1/4	200 °C	-100 °F -73 °C	Masking	0.005 "	5 mils	0.127 mm	White	Glass Cloth	18 Months	Date of Manufacture	0.25 in	0.25 in	6.35 mm	36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth
Bertech GCTP-4 1/2	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth				4.5 "	114.3 mm	36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth
Bertech GCTP-6	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth						36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth	6 in	152.4 mm
Bertech GCTP-1/8	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth	18 Months	Date of Manufacture	0.125 "	0.13 in	3.18 mm	36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth
Bertech GCTP-75MM	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth						36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth	2.95 in	75 mm
Bertech GCTP-1	200 °C	-100 °F -73 °C	Masking	0.005 "	5 mils	0.127 mm	White	Glass Cloth	18 Months	Date of Manufacture				36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth	1 in	25.4 mm
Bertech GCTP-50MM	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth						36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth			50 mm	1.97 in
Bertech GCTP-11/16	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth						36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth	0.69 in	17.48 mm			0.6875 in
Bertech GCTP-200MM	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth						36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth	7.87 "	200 mm
Bertech GCTP-25MM	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth				0.98 "	25 mm	36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 71.99

Description

General part information

GCTP Series

Glass Cloth Tape Silicone Adhesive White 4.50" (114.30mm) 4 1/2" X 108' (32.9m) 36 yds
