GCTP-1/4

Active

Bertech

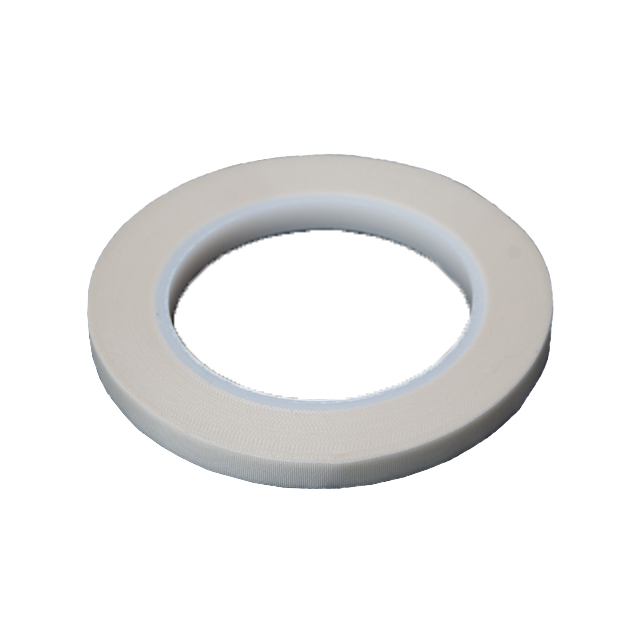

TAPE GLASS CLOTH WHT 1/4"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GCTP-1/4

Active

Bertech

TAPE GLASS CLOTH WHT 1/4"X36YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GCTP-1/4

Adhesive	Silicone
Backing, Carrier	Glass Cloth
Color	White
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Glass Cloth
Temperature Range [Max]	200 °C
Temperature Range [Min]	-100 °F, -73 °C
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Usage	Masking
Width	0.25 in
Width	0.25 in
Width	6.35 mm

GCTP Series

Part	Temperature Range [Max]	Temperature Range [Min]	Usage	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Color	Backing, Carrier	Shelf Life	Shelf Life Start	Width	Width	Width	Length	Length	Length	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Tape Type	Width [x]	Width [x]	Width [y]	Width [y]	Width [x]
Bertech GCTP-1/4	200 °C	-100 °F -73 °C	Masking	0.005 "	5 mils	0.127 mm	White	Glass Cloth	18 Months	Date of Manufacture	0.25 in	0.25 in	6.35 mm	36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth
Bertech GCTP-4 1/2	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth				4.5 "	114.3 mm	36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth
Bertech GCTP-6	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth						36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth	6 in	152.4 mm
Bertech GCTP-1/8	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth	18 Months	Date of Manufacture	0.125 "	0.13 in	3.18 mm	36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth
Bertech GCTP-75MM	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth						36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth	2.95 in	75 mm
Bertech GCTP-1	200 °C	-100 °F -73 °C	Masking	0.005 "	5 mils	0.127 mm	White	Glass Cloth	18 Months	Date of Manufacture				36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth	1 in	25.4 mm
Bertech GCTP-50MM	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth						36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth			50 mm	1.97 in
Bertech GCTP-11/16	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth						36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth	0.69 in	17.48 mm			0.6875 in
Bertech GCTP-200MM	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth						36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth	7.87 "	200 mm
Bertech GCTP-25MM	200 °C	-99 °F -73 °C	Masking Sealing	0.005 "	5 mils	0.127 mm	White	Glass Cloth				0.98 "	25 mm	36 yd	32.9 m	108 ft	Silicone	2 mils	0.051 mm	0.002 "	Glass Cloth

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.94
		2	$ 7.56
		3	$ 7.35
		5	$ 7.09
		7	$ 6.92
		10	$ 6.75
		25	$ 6.32
		50	$ 6.01
		100	$ 5.72

Description

General part information

GCTP Series

Glass Cloth Tape Silicone Adhesive White 0.25" (6.35mm) 1/4" X 108' (32.9m) 36 yds
