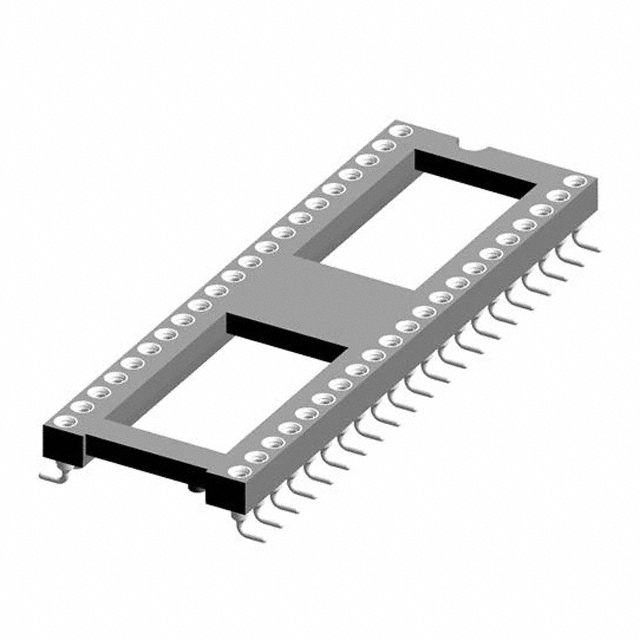

110-87-642-41-105161

Active

PRECI-DIP SA

CONN IC DIP SOCKET 42POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

110-87-642-41-105161

Active

PRECI-DIP SA

CONN IC DIP SOCKET 42POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	110-87-642-41-105161

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	42
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	0.118 in
Termination Post Length	3 mm
Type	DIP
Type	0.6 in
Type	15.24 mm

110-87 Series

Part	Contact Finish - Mating	Type	Type	Type	Contact Material - Post [custom]	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid)	Housing Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Resistance	Contact Material - Mating	Contact Finish - Post	Pitch - Post	Pitch - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Termination	Current Rating (Amps)	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 110-87-316-41-605101	Gold	0.3 "	7.62 mm	DIP	Brass	Flash	16	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	-55 °C	125 °C	Open Frame	10 mOhm	Beryllium Copper	Tin	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Solder	1 A	3.18 mm	0.125 in
PRECI-DIP SA 110-87-308-41-105101	Gold	0.3 "	7.62 mm	DIP	Brass	Flash	8	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	-55 °C	125 °C	Open Frame	10 mOhm	Beryllium Copper	Tin	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Solder	1 A	3 mm	0.118 in
PRECI-DIP SA 110-87-642-41-105161	Gold	0.6 in	15.24 mm	DIP	Brass	Flash	42	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	-55 °C	125 °C	Open Frame	10 mOhm	Beryllium Copper	Tin	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Solder	1 A	3 mm	0.118 in
PRECI-DIP SA 110-87-322-41-105101	Gold	0.3 "	7.62 mm	DIP	Brass	Flash	22	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	-55 °C	125 °C	Open Frame	10 mOhm	Beryllium Copper	Tin	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Solder	1 A	3 mm	0.118 in
PRECI-DIP SA 110-87-314-41-105161	Gold	0.3 "	7.62 mm	DIP	Brass	Flash	14	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	-55 °C	125 °C	Open Frame	10 mOhm	Beryllium Copper	Tin	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Solder	1 A	3 mm	0.118 in
PRECI-DIP SA 110-87-950-41-001101	Gold	0.9 in	22.86 mm	DIP	Brass	Flash		Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	-55 °C	125 °C	Open Frame	10 mOhm	Beryllium Copper	Tin	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Solder	1 A	3.18 mm	0.125 in	25	2	50
PRECI-DIP SA 110-87-308-41-001101	Gold	0.3 "	7.62 mm	DIP	Brass	Flash	8	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	-55 °C	125 °C	Open Frame	10 mOhm	Beryllium Copper	Tin	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Solder	1 A	3.18 mm	0.125 in
PRECI-DIP SA 110-87-310-41-105191	Gold	0.3 "	7.62 mm	DIP	Brass	Flash		Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	-55 °C	125 °C	Open Frame	10 mOhm	Beryllium Copper	Tin	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Solder	1 A	3 mm	0.118 in				2 x 5	10
PRECI-DIP SA 110-87-314-41-105191	Gold	0.3 "	7.62 mm	DIP	Brass	Flash	14	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	-55 °C	125 °C	Open Frame	10 mOhm	Beryllium Copper	Tin	2.54 mm	0.1 in	Surface Mount	0.1 in	2.54 mm	Solder	1 A	3 mm	0.118 in
PRECI-DIP SA 110-87-640-41-005101	Gold	0.6 in	15.24 mm	DIP	Brass	Flash	40	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	-55 °C	125 °C	Open Frame	10 mOhm	Beryllium Copper	Tin	2.54 mm	0.1 in	Through Hole	0.1 in	2.54 mm	Solder	1 A				2				20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	594	$ 3.15

Description

General part information

110-87 Series

42 (2 x 21) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Surface Mount
