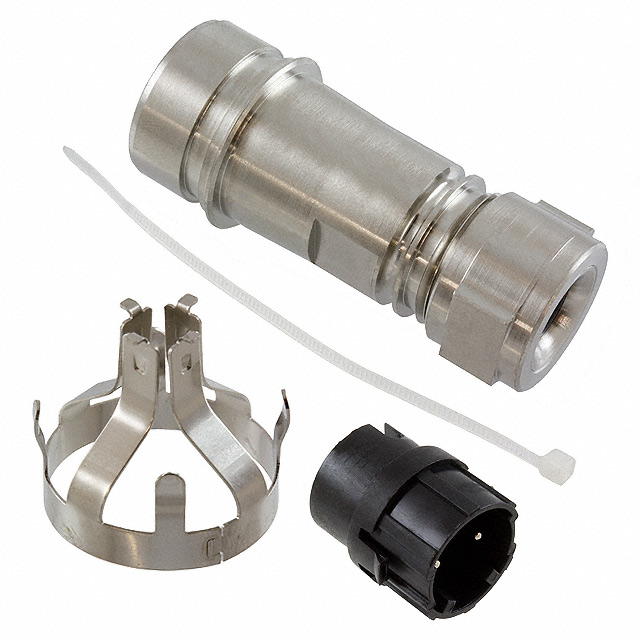

PXM6011/02P/ST/0507/SN

Active

BULGIN LIMITED

CONN PLUG MALE 2POS NICKEL SCREW

Deep-Dive with AI

Search across all available documentation for this part.

Documents6000 Series UL Cert of Compliance Datasheet +3

PXM6011/02P/ST/0507/SN

Active

BULGIN LIMITED

CONN PLUG MALE 2POS NICKEL SCREW

Deep-Dive with AI

Documents6000 Series UL Cert of Compliance Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXM6011/02P/ST/0507/SN

Cable Opening [diameter]	0.276 in, 0.197 in
Cable Opening [diameter]	7 mm, 5 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	16 A
Fastening Type	Push-Twist
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded
Termination	Screw
Voltage Rating	277 VAC/DC

PXM6011 Series

Part	Note	Contact Shape	Ingress Protection	Primary Material	Shielding	Connector Type	Mounting Type	Housing Color	Shell Material	Number of Positions	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Fastening Type	Features	Orientation	Shell Finish	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Termination	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Contact Material	Color	Contact Finish - Mating	Voltage Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
BULGIN LIMITED PXM6011/02P/CR/0507	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Silver	Brass	2	For Male Pins	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed	Nickel
BULGIN LIMITED PXM6011/03P/CR/0910	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Silver	Brass		For Male Pins	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed	Nickel	3	1	2
BULGIN LIMITED PXM6011/16S/CR/0709/SN	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Shielded	Receptacle Housing	Free Hanging (In-Line)	Silver	Brass	16	For Female Sockets	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed	Nickel
BULGIN LIMITED PXM6011/03P/ST/0709/SN			Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Shielded	Male Pins Plug	Free Hanging (In-Line)		Brass			-40 °C	120 °C		Push-Twist		Keyed	Nickel	3	1	2	Screw	0.276 in 0.354 in	7 mm 9 mm	16 A	Brass	Silver	Nickel	277 VAC/DC
BULGIN LIMITED PXM6011/03S/ST/0910/SN			Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Shielded	Female Sockets Plug	Free Hanging (In-Line)		Brass			-40 °C	120 °C		Push-Twist		Keyed	Nickel	3	1	2	Screw			16 A	Brass	Silver	Nickel	277 VAC/DC	9 mm	0.394 in	10 mm	0.354 in
BULGIN LIMITED PXM6011/02P/CR/0405	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Silver	Brass	2	For Male Pins	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed	Nickel
BULGIN LIMITED PXM6011/16P/CR/0507/SN	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Shielded	Receptacle Housing	Free Hanging (In-Line)	Silver	Brass	16	For Male Pins	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed	Nickel
BULGIN LIMITED PXM6011/08S/CR/0405	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Unshielded	Receptacle Housing	Free Hanging (In-Line)	Silver	Brass	8	For Female Sockets	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed	Nickel
BULGIN LIMITED PXM6011/02P/ST/0507/SN			Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Shielded	Male Pins Plug	Free Hanging (In-Line)		Brass	2		-40 °C	120 °C		Push-Twist		Keyed	Nickel				Screw			16 A	Brass	Silver	Nickel	277 VAC/DC					0.197 in 0.276 in	5 mm 7 mm
BULGIN LIMITED PXM6011/08S/CR/0405/SN	Contacts Not Included	Circular	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Metal	Shielded	Receptacle Housing	Free Hanging (In-Line)	Silver	Brass	8	For Female Sockets	-40 °C	120 °C	Crimp and Solder Cup	Push-Twist	Backshell	Keyed	Nickel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 50.09
