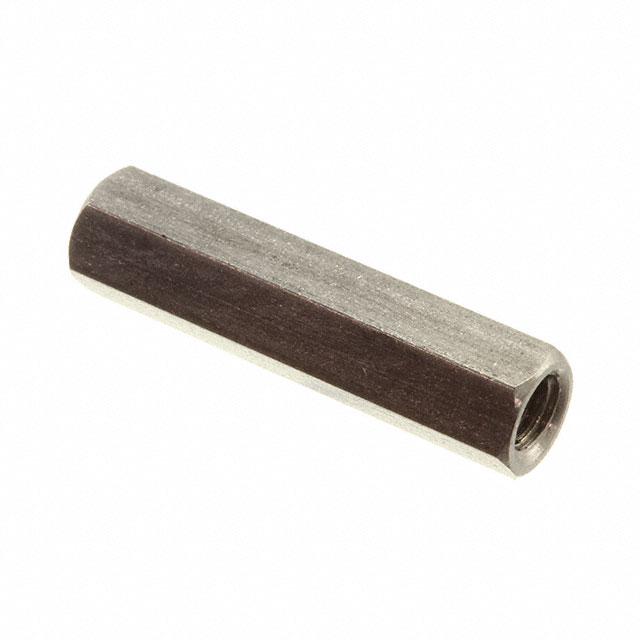

M1322-4007-SS-20
ActiveRAF Electronic Hardware
6MM HEX X 25MM X M4 THD
Deep-Dive with AI
Search across all available documentation for this part.
M1322-4007-SS-20
ActiveRAF Electronic Hardware
6MM HEX X 25MM X M4 THD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1322-4007-SS-20 |
|---|---|
| Between Board Height | 0.984 in |
| Between Board Height | 25 mm |
| Diameter - Outside [diameter] | 0.236 in |
| Diameter - Outside [diameter] | 6 mm |
| Gender | Female |
| Length - Overall [x] | 25 mm |
| Length - Overall [x] | 0.984 in |
| Material | Stainless Steel |
| Plating | Passivated |
| Screw, Thread Size | M4x0.7 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.53 | |
| 5 | $ 6.45 | |||
| 10 | $ 6.07 | |||
| 25 | $ 5.62 | |||
| 50 | $ 5.33 | |||
| 100 | $ 5.07 | |||
| 250 | $ 4.77 | |||
| 500 | $ 4.57 | |||
| 1000 | $ 4.39 | |||
Description
General part information
M1322 Series
Hex Standoff Threaded M4x0.7 Stainless Steel 0.984" (25.00mm)
