M1322-4007-SS

Active

RAF Electronic Hardware

6MM HEX X 25MM X M4 THD

Search across all available documentation for this part.

Active

RAF Electronic Hardware

6MM HEX X 25MM X M4 THD

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall [x]	Length - Overall [x]	Screw, Thread Size	Type	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Between Board Height	Between Board Height	Gender	Plating	Threaded/Unthreaded
RAF Electronic Hardware M1322-4007-SS-20	25 mm	0.984 in	M4x0.7	Hex Standoff	Stainless Steel	0.236 in	6 mm	0.984 in	25 mm	Female	Passivated	Threaded
RAF Electronic Hardware M1322-4007-N	25 mm	0.984 in	M4x0.7	Hex Standoff	Nylon	0.236 in	6 mm	0.984 in	25 mm	Female		Threaded
RAF Electronic Hardware M1322-4007-AL	25 mm	0.984 in	M4x0.7	Hex Standoff	Aluminum	0.236 in	6 mm	0.984 in	25 mm	Female		Threaded
RAF Electronic Hardware M1322-4007-SS	25 mm	0.984 in	M4x0.7	Hex Standoff	Stainless Steel	0.236 in	6 mm	0.984 in	25 mm	Female		Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

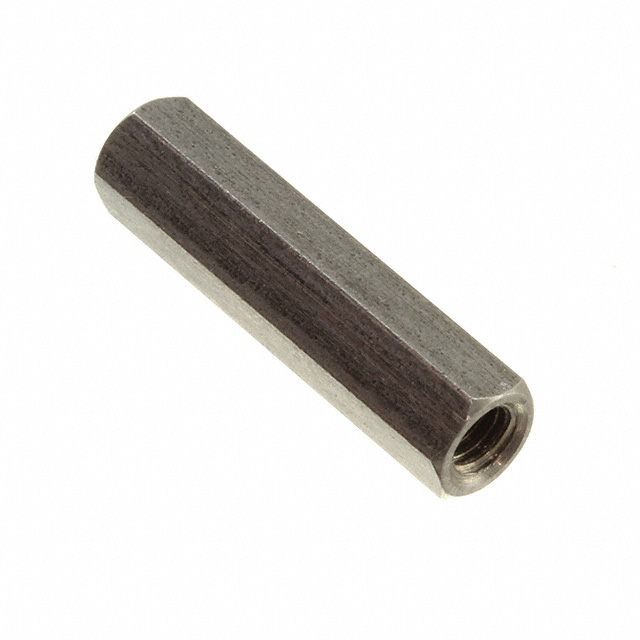

Hex Standoff Threaded M4x0.7 Stainless Steel 0.984" (25.00mm)
