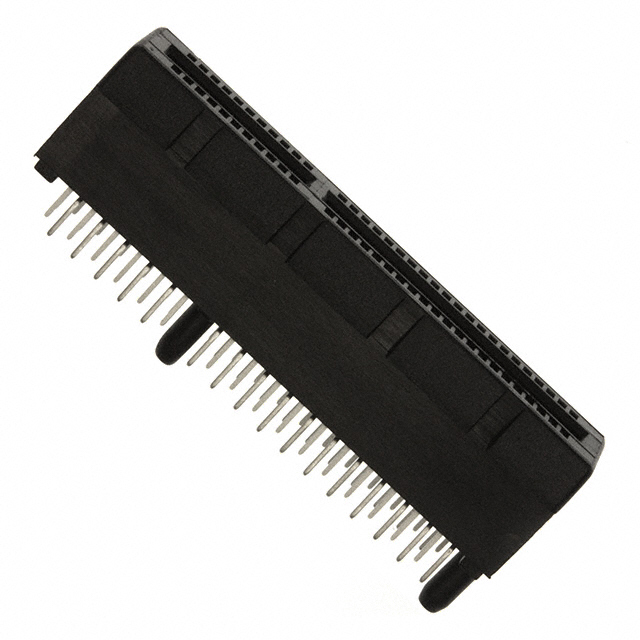

10018784-10101TLF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 64POS 0.039

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10018784-10101TLF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 64POS 0.039

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10018784-10101TLF

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Locking Ramp, Board Guide
Gender	Female
Material - Insulation	Polyamide (PA), Glass Filled, Nylon
Mounting Type	Through Hole
Number of Positions	64
Number of Positions/Bay/Row [custom]	21
Number of Positions/Bay/Row [custom]	11
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder, Staggered

10018784 Series

Part	Contact Finish Thickness	Pitch [x]	Pitch [x]	Gender	Number of Positions	Termination	Mounting Type	Contact Material	Material - Insulation	Read Out	Card Thickness	Card Thickness	Number of Rows	Features	Card Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
Amphenol ICC (FCI) 10018784-10213TLF	Flash	0.039 in	1 mm	Female	164	Solder Staggered	Through Hole	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Dual	0.062 in	1.57 mm	2	Board Guide Locking Ramp	PCI Express™	Cantilever	85 °C	-55 °C	Gold	Black
Amphenol ICC (FCI) 10018784-10001TLF		0.039 in	1 mm	Female	64	Solder Staggered	Through Hole	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Dual	0.062 in	1.57 mm	2	Board Guide Locking Ramp	PCI Express™	Cantilever	85 °C	-55 °C	Gold	Black	0.76 Ám	30 Áin	21	11
Amphenol ICC (FCI) 10018784-11103TLF		0.039 in	1 mm	Female	164	Solder Staggered	Through Hole	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Dual	0.062 in	1.57 mm	2	Board Lock Locking Ramp	PCI Express™	Cantilever	85 °C	-55 °C	Gold	Black	0.38 µm	15 µin
Amphenol ICC (FCI) 10018784-10003TLF		0.039 in	1 mm	Female	164	Solder Staggered	Through Hole	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Dual	0.062 in	1.57 mm	2	Board Guide Locking Ramp	PCI Express™	Cantilever	85 °C	-55 °C	Gold	Black	0.76 Ám	30 Áin
Amphenol ICC (FCI) 10018784-10202MLF	Flash	0.039 in	1 mm	Female	98	Solder Staggered	Through Hole	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Dual	0.062 in	1.57 mm	2	Board Guide Locking Ramp	PCI Express™		85 °C	-55 °C	Gold or Gold GXT™	Black
Amphenol ICC (FCI) 10018784-10101TLF		0.039 in	1 mm	Female	64	Solder Staggered	Through Hole	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Dual	0.062 in	1.57 mm	2	Board Guide Locking Ramp	PCI Express™	Cantilever	85 °C	-55 °C	Gold	Black	0.38 µm	15 µin	21	11
Amphenol ICC (FCI) 10018784-00102TLF		0.039 in	1 mm	Female	98	Solder Staggered	Through Hole	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Dual	0.062 in	1.57 mm	2	Board Guide Locking Ramp	PCI Express™		85 °C	-55 °C	Gold or Gold GXT™	White	0.38 µm	15 µin
Amphenol ICC (FCI) 10018784-11010TLF		0.039 in	1 mm	Female	36	Solder Staggered	Through Hole	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Dual	0.062 in	1.57 mm	2	Board Lock Locking Ramp	PCI Express™	Cantilever	85 °C	-55 °C	Gold	Black	0.76 Ám	30 Áin
Amphenol ICC (FCI) 10018784-10112TLF		0.039 in	1 mm	Female	98	Solder	Through Hole	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Dual	0.062 in	1.57 mm	2	Board Guide Locking Ramp	PCI Express™	Cantilever	85 °C	-55 °C	Gold	Black	0.38 µm	15 µin
Amphenol ICC (FCI) 10018784-11013TLF		0.039 in	1 mm	Female	164	Solder Staggered	Through Hole	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Dual	0.093 in	2.36 mm	2	Board Lock Locking Ramp	PCI Express™		85 °C	-55 °C	Gold or Gold GXT™	Black	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.61
		10	$ 1.22
		25	$ 1.10
		40	$ 1.04
		80	$ 0.97
		230	$ 0.86
		440	$ 0.80
		945	$ 0.74
		2400	$ 0.67

Description

General part information

10018784 Series

64 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
