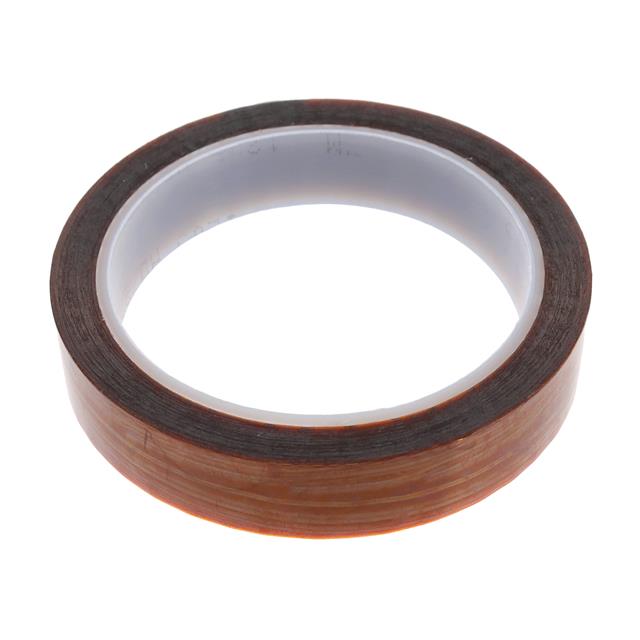

3M 1205 3/4" X 36YD

Active

3M (TC)

TAPE ELECTRICAL AMBER 3/4"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3M 1205 3/4" X 36YD

Active

3M (TC)

TAPE ELECTRICAL AMBER 3/4"X36YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3M 1205 3/4" X 36YD

Adhesive	Acrylic
Backing, Carrier	Polyimide
Color	Amber
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical
Temperature Range [Max]	311 °F
Temperature Range [Max]	155 °C
Temperature Range [Min]	0 °C
Temperature Range [Min]	0 °C
Thickness	3 mils
Thickness	0.003 in
Thickness	0.076 mm
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Width	0.75 in
Width	19.05 mm
Width	0.75 in

1205 Series

...

Part	Temperature Range [Max]	Temperature Range [Max]	Width [y]	Width [y]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive	Thickness	Thickness	Thickness	Shelf Life	Tape Type	Backing, Carrier	Shelf Life Start	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Length	Length	Length	Width	Width	Width	Length [x]	Length [x]	Width [x]	Width [x]
3M (TC) 1205-2.25-36	311 °F	155 °C	57.15 mm	2.25 in	2 mils	0.051 mm	0.002 "	1 mils	0.025 mm	0.001 "	Acrylic	3 mils	0.003 in	0.076 mm	60 Months	Electrical	Polyimide	Date of Manufacture	Amber	27 °C 80 °F	10 °C	36 yd	32.9 m	108 ft
3M (TC) 3M 1205 0.5" X 1"-250	311 °F	155 °C			2 mils	0.051 mm	0.002 "	1 mils	0.025 mm	0.001 "	Acrylic	3 mils	0.003 in	0.076 mm	60 Months	Electrical	Polyimide	Date of Manufacture	Amber	27 °C 80 °F	10 °C				0.5 in	12.7 mm	0.5 in	25.4 mm	1 in
3M (TC) 3M 1205 9.25" X 9.25"-25	311 °F	155 °C			2 mils	0.051 mm	0.002 "	1 mils	0.025 mm	0.001 "	Acrylic	3 mils	0.003 in	0.076 mm	60 Months	Electrical	Polyimide	Date of Manufacture	Amber	27 °C 80 °F	10 °C		234.95 mm	9.25 inches						234.95 mm	9.25 in
3M (TC) 3M 1205 2" X 9.25"-25	311 °F	155 °C	50.8 mm	2 "	2 mils	0.051 mm	0.002 "	1 mils	0.025 mm	0.001 "	Acrylic	3 mils	0.003 in	0.076 mm	60 Months	Electrical	Polyimide	Date of Manufacture	Amber	27 °C 80 °F	10 °C		234.95 mm	9.25 inches
3M (TC) 3M 1205 0.5" X 1.25"-250	311 °F	155 °C			2 mils	0.051 mm	0.002 "	1 mils	0.025 mm	0.001 "	Acrylic	3 mils	0.003 in	0.076 mm	60 Months	Electrical	Polyimide	Date of Manufacture	Amber	27 °C 80 °F	10 °C		31.75 mm	1.25 in	0.5 in	12.7 mm	0.5 in
3M (TC) 3M 1205 0.5" X 0.5"-5	311 °F	155 °C			2 mils	0.051 mm	0.002 "	1 mils	0.025 mm	0.001 "	Acrylic	3 mils	0.003 in	0.076 mm	60 Months	Electrical	Polyimide	Date of Manufacture	Amber	27 °C 80 °F	10 °C	0.5 in	12.7 mm	0.5 in	0.5 in	12.7 mm	0.5 in
3M (TC) 1205-0.313-36	311 °F	155 °C			2 mils	0.051 mm	0.002 "	1 mils	0.025 mm	0.001 "	Acrylic	3 mils	0.003 in	0.076 mm	60 Months	Electrical	Polyimide	Date of Manufacture	Amber	27 °C 80 °F	10 °C	36 yd	32.9 m	108 ft	0.3125 in	7.87 mm	0.31 in
3M (TC) 1205-0.375-5	311 °F	155 °C			2 mils	0.051 mm	0.002 "	1 mils	0.025 mm	0.001 "	Acrylic	3 mils	0.003 in	0.076 mm	60 Months	Electrical	Polyimide	Date of Manufacture	Amber	27 °C 80 °F	10 °C	5 yd	4.6 m	15 ft	0.375 in	9.65 mm	0.38 in
3M (TC) 3M 1205 3/4" X 36YD	311 °F	155 °C			2 mils	0.051 mm	0.002 "	1 mils	0.025 mm	0.001 "	Acrylic	3 mils	0.003 in	0.076 mm	60 Months	Electrical	Polyimide	Date of Manufacture	Amber	27 °C 80 °F	10 °C	36 yd	32.9 m	108 ft	19.05 mm	0.75 in	0.75 in
3M (TC) 3M 1205 1" X 1"-5	311 °F	155 °C			2 mils	0.051 mm	0.002 "	1 mils	0.025 mm	0.001 "	Acrylic	3 mils	0.003 in	0.076 mm	60 Months	Electrical	Polyimide	Date of Manufacture	Amber	27 °C 80 °F	10 °C							25.4 mm	1 in	25.4 mm	1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 79.27

Description

General part information

1205 Series

Electrical Tape Acrylic Adhesive Amber 0.75" (19.05mm) 3/4" X 108' (32.9m) 36 yds
